50Hz 60Hz Deepsea Generator Controller DSE4620 For Generator Set
50Hz 60Hz Deepsea Generator Controller DSE4620 For Generator Set
50Hz 60Hz Deepsea Generator Controller DSE4620 For Generator Set
50Hz 60Hz Deepsea Generator Controller DSE4620 For Generator Set
Specifications
Place of Origin: :
China (Mainland)
Brand :
Deep Sea
Alternator Frequency :
50Hz / 60 Hz
Model Number: :
DSE4620
Panel Cutout(l*w*h/mm） :
118 mm x92 mm
Controller :
HGM420 / 410
Overall dimensions: :
140 mm x 113 mm x 43 mm
Brand Name :
Smartgen
Model Number :
DSE4620
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

50Hz / 60 Hz Deepsea Generator Controller DSE4620 For Generator Set

Specifications :

AUTO START CONTROL MODULES DSE4620 DEEP SEA ORIGINAL
DC SUPPLY GENERATOR
CONTINUOUS VOLTAGE RATING 8 V to 35 V Continuous VOLTAGE RANGE

15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
CRANKING DROPOUTS Able to survive 0 V for 50 mS FREQUENCY RANGE 3.5 Hz to 75 Hz
MAXIMUM OPERATING CURRENT 85 mA at 12 V, 96 mA at 24 V MAINS (UTILITY) DSE4620 ONLY
MAXIMUM STANDBY CURRENT 51 mA at 12 V, 47 mA at 24 V VOLTAGE RANGE

15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
MAXIMUM SLEEP CURRENT 35 mA at 12 V, 32 mA at 24 V FREQUENCY RANGE 3.5 Hz to 75 Hz
OUTPUTS DIMENSIONS
OUTPUT A (FUEL) 10 A short term, 5 A continuous,at supply voltage OVERALL 140 mm x 113 mm x 43 mm
OUTPUT B (START) 10 A short term, 5 A continuous,at supply voltage PANEL CUT-OUT 118 mm x92 mm
AUXILIARY OUTPUTS C,D 2 A DC at supply voltage MAXIMUM PANEL THICKNESS 8 mm

Key Features:

• Ultimate size to feature ratio
• Automatically transfers between mains (utility) and generator (DSE4520 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored simultaneously which are clearly displayed on thelargest back-lit icon display inits class
• The module can be configured to suit a wide range of applications
• Uses DSE Configuration Suite PC Software for simplified configuration
• Compatible with a wide range of CAN engines
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress


Our Service:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  3. Build customers’ profiles, follow-up service, make regular calls on customers

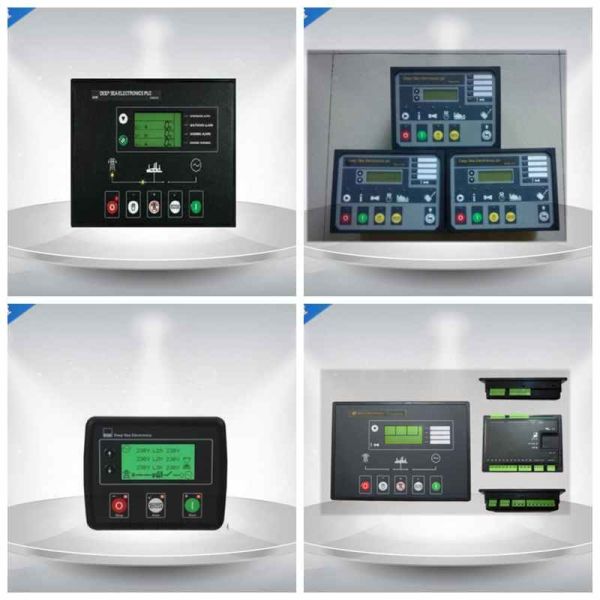

Our Picture:

50Hz 60Hz Deepsea Generator Controller DSE4620 For Generator Set


Our Main Product:

  1. Diesel Generating Set
  2. Gasoline Generating Set
  3. Gas Generating set
  4. Mobile Light Tower
  5. Forklift
  6. Air Compressor
  7. Control System
  8. Standard Control Panel
  9. Auto Control Panel
  10. Auto Parallel Control Panel
  11. ATS
  12. Brushless Alternat


Warranty and Maintenance:

  1. Guarantee Period: One year or 1000 running hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent by air express.
