20kw Gas Generator Set
20kw Gas Generator Set
20kw Gas Generator Set
20kw Gas Generator Set
Specifications
Brand Name :
Weichai
Model Number :
GP-20GFQ
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Place of Origin: :
China (Mainland)
Engine Model :
CR4100Q/25
Prime Power (kw) :
20
Alternator :
Stamford / Meecalt / copy Stamford
Output Type: :
AC Three Phase
Genset Size (l*w*h/mm） :
1650x730x1250
Weight(KG) :
5400
Start method: :
auto start/key start
Description

20kw Gas Generator Set

General data

Engine brand

Weichai

Alternator brand

Stamford / copy stamford

Engine model

CR4100Q/25

Alternator model

PI 144E/20

Controller

HGM410

Prime power

20kw

Dimension

1350x750x1170

Protection grade

IP23

Cooling method

water cooled

Excitation mehtod

brushless

Start method

auto start/key start

Insulation grade

H

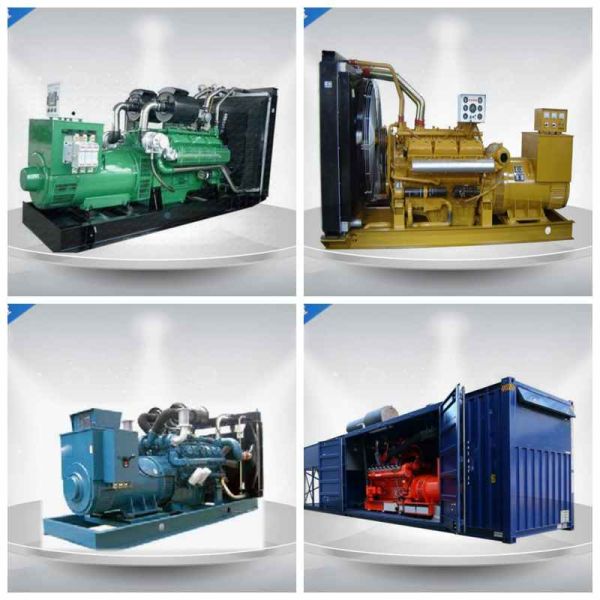

Our Picture :
20kw Gas Generator Set

Our Service:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  3. Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

  1. Guarantee Period: One year or 1000 running hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent by air express.

Nature gas generator feature:

1) Our engineer will install the nature gas generator on your site

2) Gas consumption: less than 0.28cbm/kWh

3) We supply you spare parts during the whole service life.

4) Nature gas generator powered by famous &good quality engine and alternator, such as Cummins, Deutz.

5) Nature gas generator with longer life: nature gas engine has a life of over several years if it is properly operated and maintained

6) Low operation cost of nature gas generator: nature gas has a rich reserve with low cost and a high rate of return

7) High profit of nature gas generator: low operation&maintenance cost, supply of electricity and thermal power at the same time.

8) Nature gas generator coupled with brushless alternators of Leroy Somer /Stamford/ Marathon, etc.

9) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown when main power on, auto start when main power off.

10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power

11) Monitor function: speed, water temperature, lub-oil temperature, lube-oil pressure, exhaust temperature

12) Supply connection: 3 phase, 4 lines

14) Rated frequency: 50Hz / 60Hz

15) Rated power factor: 0.8

16) Exciting way: brushless

17) Starting mode: 24V DC electric starting system

18) Cooling mode: closed-circuit cooling system
