200KW Open Type Natural Gas Generator Set With Original Cummins Engine 6L14TWG1, Stamford Alternator UCDI274K

Nature gas generator feature:
1) Our engineer will install the nature gas generator on your site
2) Gas consumption: less than 0.28cbm/kWh
3) We supply you spare parts during the whole service life.
4) Nature gas generator powered by famous &good quality engine and alternator, such as Cummins, Deutz.
5) Nature gas generator with longer life: nature gas engine has a life of over several years if it is properly operated and maintained
6) Low operation cost of nature gas generator: nature gas has a rich reserve with low cost and a high rate of return
7) High profit of nature gas generator: low operation&maintenance cost, supply of electricity and thermal power at the same time.
8) Nature gas generator coupled with brushless alternators of Leroy Somer /Stamford/ Marathon, etc.
9) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown when main power on, auto start when main power off.
10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) Monitor function: speed, water temperature, lub-oil temperature, lube-oil pressure, exhaust temperature
12) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system

General data

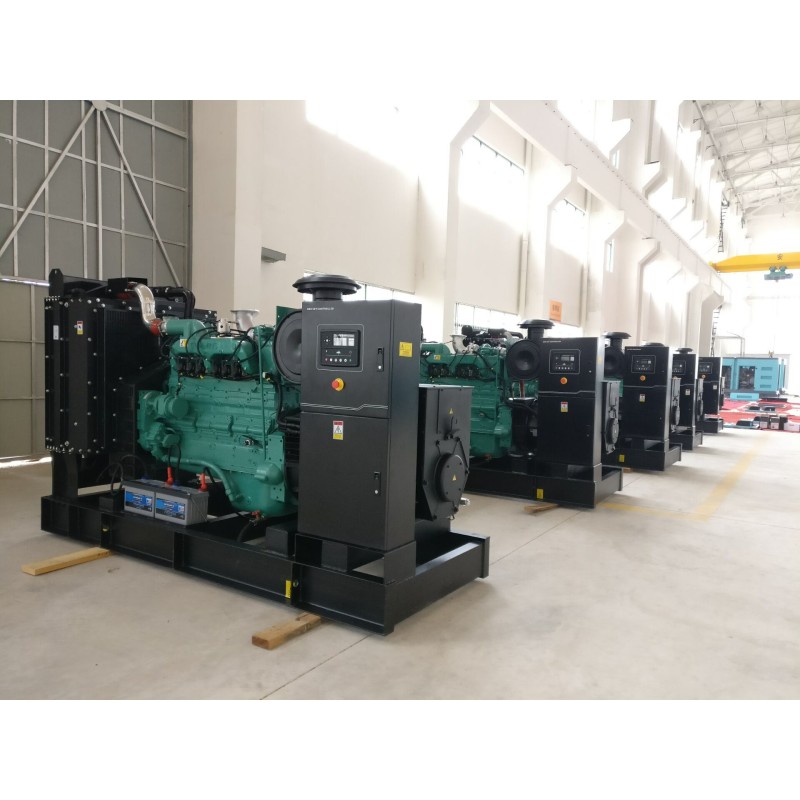

Our Picture :

Warranty and Maintenance:

1. Guarantee Period: One year or 1000 running hours whichever comes first.
2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3. Spare-parts can also be sent by air express.

The advantages of home use natural gas generator

As the gas engine exhausted temperature is 20%-30% higher than diesel engines, compared to other suppliers’ gas engine, we adopt the completely computer optimized parts specially used for gas engine:

1) Special alloy intake/exhaust valves & seat rings ; pistons with heat & wear-resisting coating, specially designed combustion chamber,eradicate air leakage problem, ensure sufficient engine power.
2) Gas & air mixed out of the cylinder, mix better and burn more sufficiently.

3) Integrated control technology, adjust the gas intake quantity automatically according to the load variation.

4) Ignition coils / cables / ECU from Weichai group, Bosch electric throttle & spark plugs, USA Impco gas & air mixer, ensure the accurate gas intake volume.

5) Industrial class fire blocker, the fire or explosion accident will never happen.
