80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set
80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set
80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set
80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set
Specifications
Engine Brand :
Cummins
Engine Model :
NTAA855-G7A
Output Power (kw) :
370
Rated Frequency (Hz) :
50
Alternator :
Stamford / Meecalt / copy Stamford
Canopy Size (l*w*h/mm） :
4100*1400*2100
Canopy Weight(KG) :
7650
Type :
Slient
Brand Name :
Global Power
Model Number :
GPBG-80CS-1
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set


Tech data :

Generator Model GPBG-80CS-1
Prime Power (KW/KVA) 72 / 90

Standby Power

@1500rpm (KW/KVA)

 80 / 100
Rated Current (A) 130 Stabilized Voltage Regulation ±1.0%
Gas Engine Model GTA5.9-G2 Alternator Insulation Class H
Alternator Model(Stamford) UCI274C 100% Load Gas Consumption(m3/h) 47
Number and type of cylinder 6,in-line Lubrication Oil Volume(L) 11.5
Bore*Stroke(mm) 102*120 Cooling Liquid Volume(L) 16
Compression Ratio 10.5:1 Size Length(mm) 2400
Emission(L) 5.9 Width(mm) 870
Starting Battery(AH) 95*2 Height(mm) 1580
Starting Battery Voltage(V) 24 Generator Weight(kg) 1750

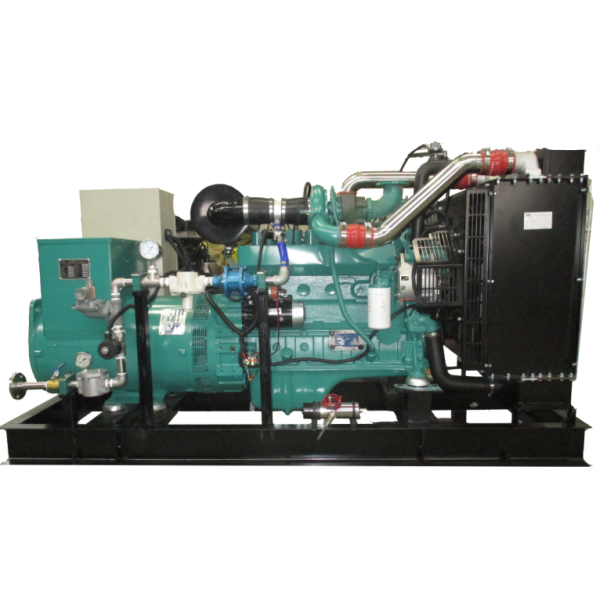

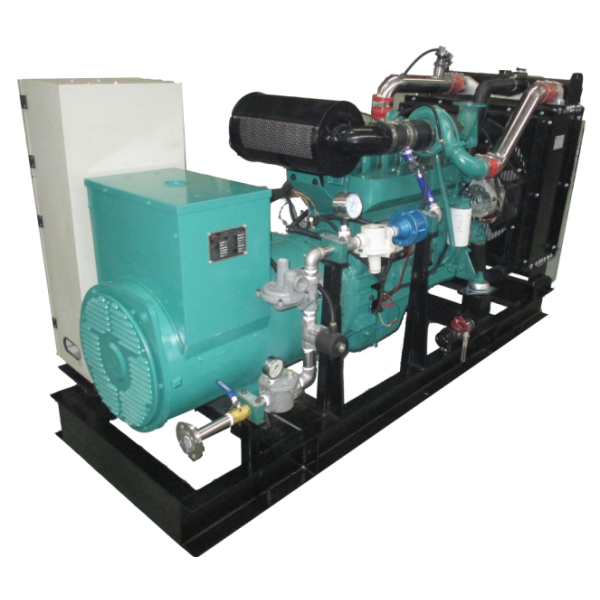

photos :

80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set
80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set

80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set


Generator

Highly efficient and energy saving

Energy equipment is operated for power supply close to the users without transportation and distribution loss to reduce environment pollution and save energy with utilization of waste gas.

Environmentally friendly

Compared with traditional fuel coal and fossil energy, reduce the emission of the NOX and CO2 by 60%-80% with nearly zero SO2 and dust emission.

Economical

For the same quantity of power generated, the price of gas fuel is lower than gasoline is lower than gasoline and diesel oil by 30-50%.

Wide application

Applicable in various industries: renewable gas, usable waste gas, oil field power, etc.


Warranty and Maintenance:

  • Guarantee Period: One year or 1000 running hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent by air express.
  • 24 hours service hotline is available for customers.


Our service :
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing

2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.

3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent
maintenance.

4)Spare parts supply:
We provide all kinds of spare parts and technical support.

5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
