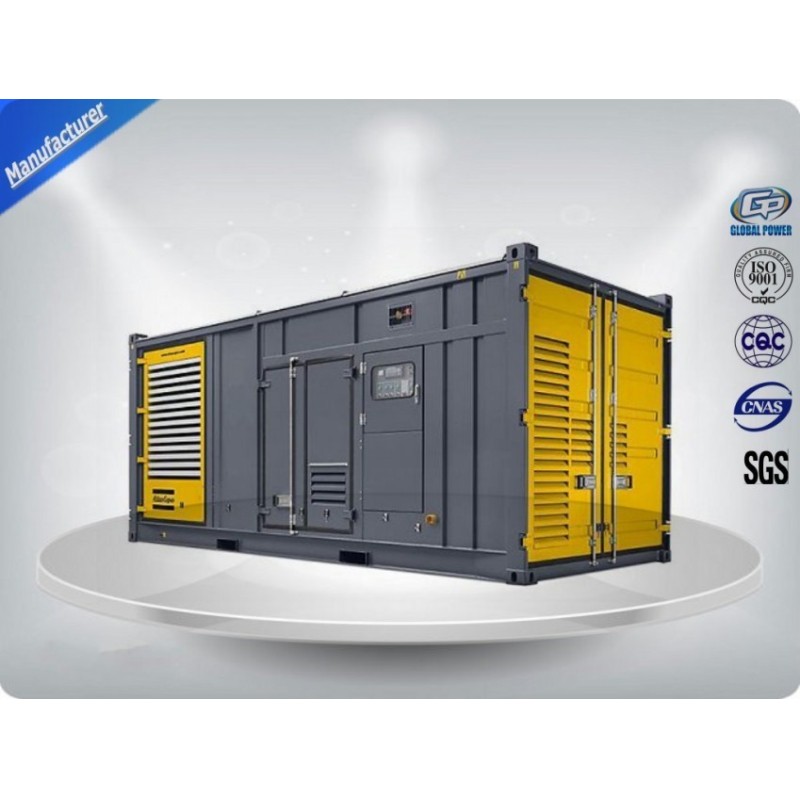

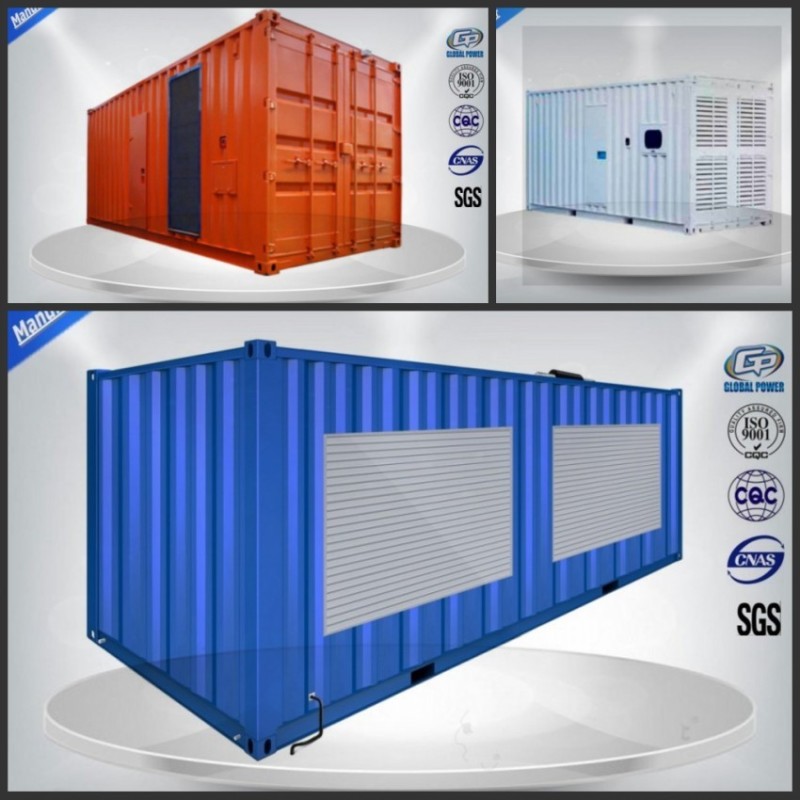

800KW 1000KVA Container Generator Set
800KW 1000KVA Container Generator Set
800KW 1000KVA Container Generator Set
800KW 1000KVA Container Generator Set
Specifications
Brand Name :
Global Power,
Model Number :
GPC600
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand: :
MTU
Output Power (kw): :
600-1200 kw/ kva
Alternator: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
12V2000G65
Rated Frequency (Hz) :
50
Type: :
Container
Rated Voltage (V) :
400/230
Diesel Generator :
three phase
Description

Rainproof 50Hz 800KW / 1000KVA Container powerful diesel generator set

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Engine specifications

Engine

Main features:

l Twelve-cylinder, water-cooled, in “V” diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance

Technical data

Model 12V2000G65

Engine brand

MTU

Output Power (kw)

695

Cylinder No. & Config.

12,in “V”

Combustion System

direct injection

Compression Ratio

16:1

Displacement (L)

23.88

Bore X Stroke (mm)

130*150

Engine Speed (r/min)

1500

Speed Governing

Electronic / ADEC

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

164

Fuel Consump. (g/kw·h)

198

Oil Capacity (L)

77


800KW 1000KVA Container Generator Set

Control system

800KW 1000KVA Container Generator Set

DSE4620 controller

Main features:

l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation

l Security password-protected programming levels

l All parameters use digital modulation, with higher reliability and stability

Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed

l Power supply range is wide, accommodating to different starting battery voltage environment

l Built-in watch dog can never be dead halt, ensuring smooth program execution

l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door
