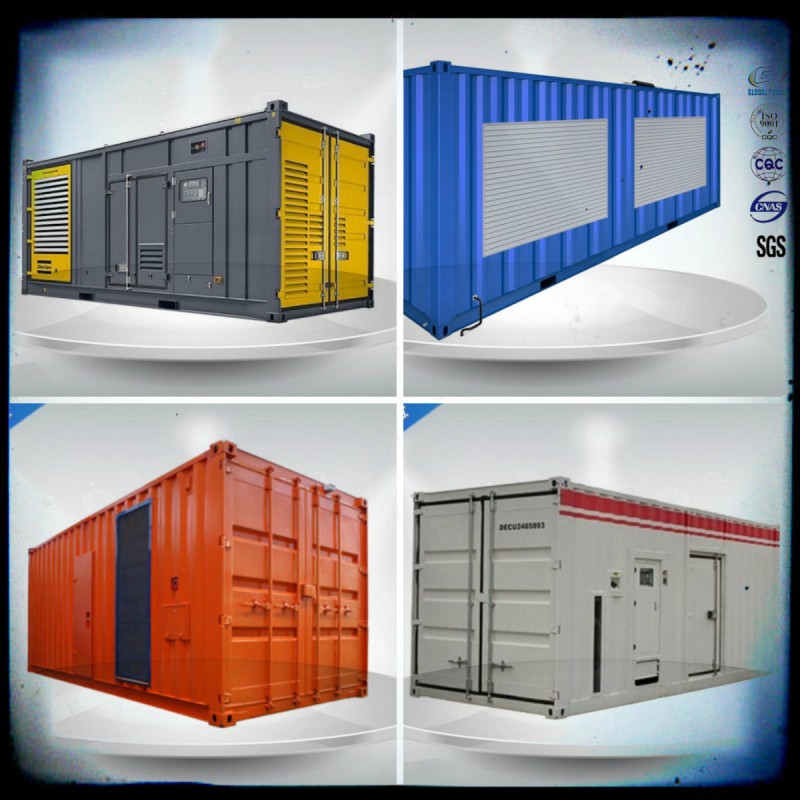

1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
Specifications
Brand Name :
Global Power, MTU
Model Number :
GP M1500
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand: :
MTU, Cummins, Perkins, VMAN available
Alternator: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
12V2000G65
Rated Frequency (Hz) :
50/60 hz
Type: :
Container
number of phase :
3
Dimension L*W*H/mm :
6300*2200*2500
Weight/kg :
11600
Alternator :
HCI 634J/824
Description

1500 Kw Water - Cooled Container Generator Set With Copy Stamford Alternator

Prime Power (kw/kva)

1500/1875

Standby Power (kw/kva)

1650/2063

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

2706

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Open Type-Dimension (L*W*H) (mm)

6400*2200*2500

Open Type-Weight (kg)

13500

Soundproof Type- Dimension (L*W*H) (mm)

/

Soundproof Type-Weight (kg)

/

Fuel Tank Capacity(L)

/

Continuous Running Time(hr.)

6


1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator

Engine specifications

Engine

Main features:

l Twelve-cylinder, water-cooled, in “V” diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance

Technical data

Model 12V4000G63

Engine brand

MTU

Output Power (kw)

1575

Cylinder No. & Config.

12,in “V”

Combustion System

direct injection

Compression Ratio

16.5:1

Displacement (L)

57.2

Bore X Stroke (mm)

170*210

Engine Speed (r/min)

1500

Speed Governing

Electronic / ADEC

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

470

Fuel Consump. (g/kw·h)

193

Oil Capacity (L)

260


1500Kw Water Cooled Container Generator Set With Copy Stamford Alternator
Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door
