Specifications
Brand Name :
Global Power, MTU
Model Number :
GP M1300
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand: :
MTU, Cummins, Perkins, VMAN available
Alternator: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
12V2000G65
Rated Frequency (Hz) :
50/60 hz
Type: :
Container
number of phase :
3
Dimension L*W*H/mm :
6300*2200*2500
Weight/kg :
11600
Alternator :
HCI 634J/824
Description

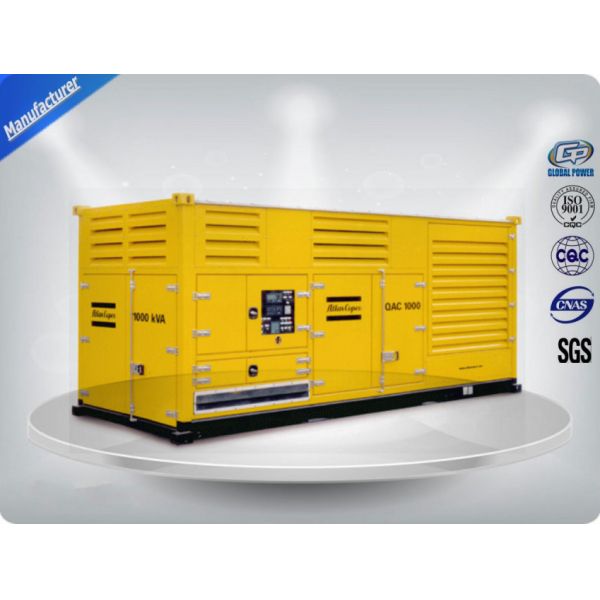

Electronic Starting Genset Silent Generator Set , Three Phase Diesel Generator

Generator data

Diesel Generator GPM1300 (three phase)

Prime Power (kw/kva)

1300/16525

Standby Power (kw/kva)

1430/1788

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

2346

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Open Type-Dimension (L*W*H) (mm)

6350*2200*2500

Open Type-Weight (kg)

12800

Soundproof Type- Dimension (L*W*H) (mm)

/

Soundproof Type-Weight (kg)

/

Fuel Tank Capacity(L)

/

Continuous Running Time(hr.)

6


Electronic Starting Genset Silent Generator Set , Three Phase Diesel Generator

Engine specifications

Engine

Main features:

l Twelve-cylinder, water-cooled, in “V” diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance

Technical data

Model 12V4000G23

Engine brand

MTU

Output Power (kw)

1420

Cylinder No. & Config.

12,in “V”

Combustion System

direct injection

Compression Ratio

16.5:1

Displacement (L)

57.2

Bore X Stroke (mm)

170*210

Engine Speed (r/min)

1500

Speed Governing

Electronic / ADEC

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

460

Fuel Consump. (g/kw·h)

192

Oil Capacity (L)

260


Electronic Starting Genset Silent Generator Set , Three Phase Diesel Generator
Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

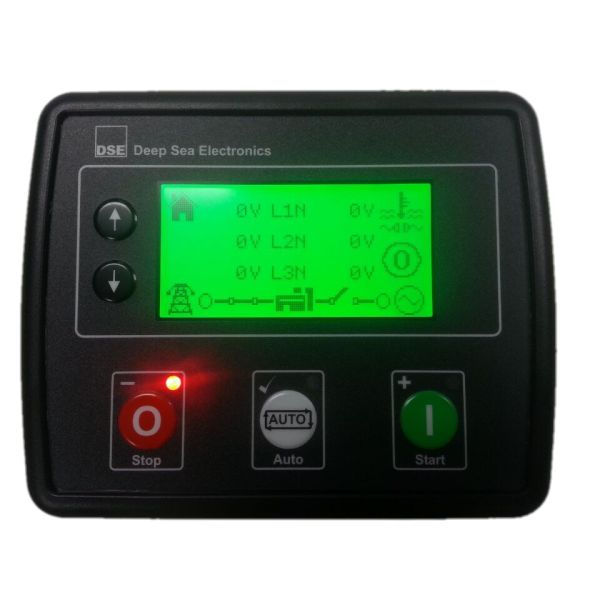

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door
