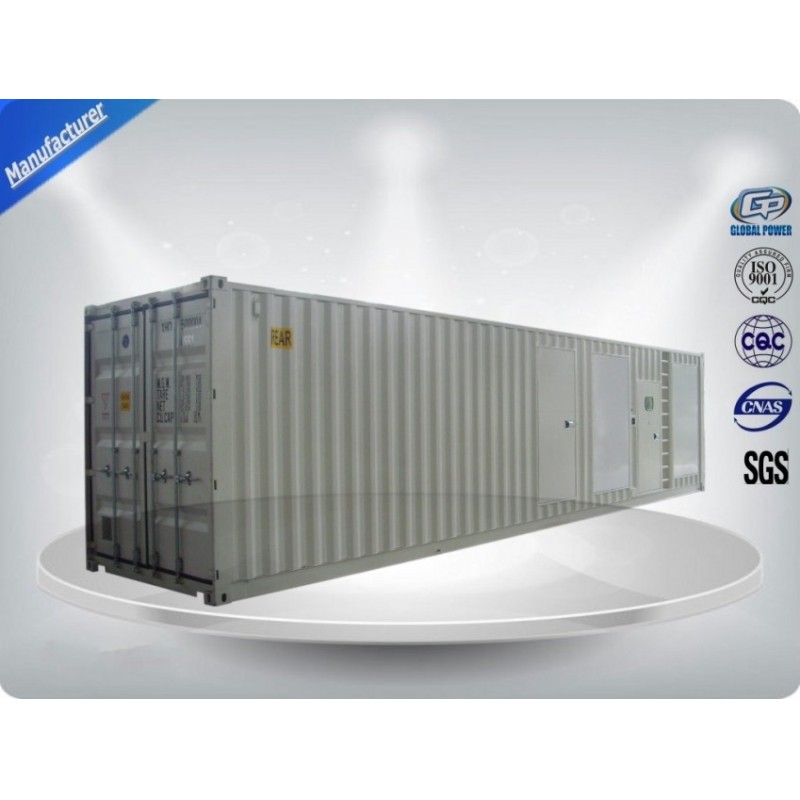

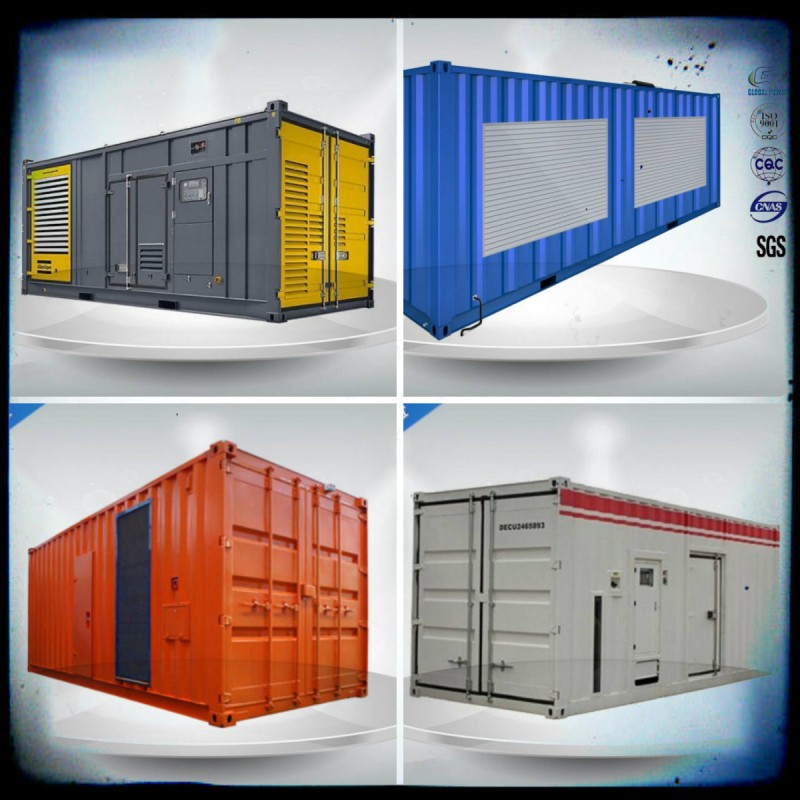

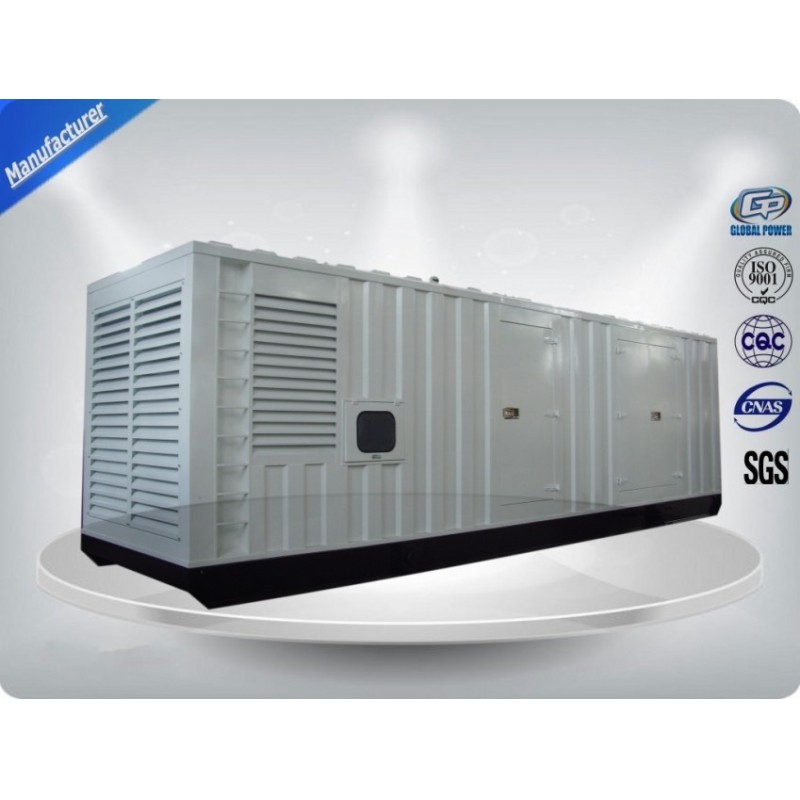

Container type Cummins diesel genset power 730 kw 50/60hz
Container type Cummins diesel genset power 730 kw 50/60hz
Container type Cummins diesel genset power 730 kw 50/60hz
Container type Cummins diesel genset power 730 kw 50/60hz
Container type Cummins diesel genset power 730 kw 50/60hz
Container type Cummins diesel genset power 730 kw 50/60hz
Specifications
Engine Brand: :
Cummins
Alternator: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
KTA38-G2B
Rated Frequency (Hz) :
50
Type: :
Container
Power :
730 kw
Brand Name :
Global Power
Model Number :
GP C730
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Generator data

Diesel Generator GPC1000 (three phase)

Generator data

Diesel Generator GPC730 (three phase)

Prime Power (kw/kva)

730/913

Standby Power (kw/kva)

803/1004

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

1317

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Open Type-Dimension (L*W*H) (mm)

4450*1650*2400

Open Type-Weight (kg)

6700

Soundproof Type- Dimension (L*W*H) (mm)

/

Soundproof Type-Weight (kg)

/

Fuel Tank Capacity(L)

/

Continuous Running Time(hr.)

6


Container type Cummins diesel genset power 730 kw 50/60hz

Engine specifications



Engine
Main features:

l Six-cylinder, water-cooled, in-line diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance




Technical data
Model NT855-GA

Engine brand

Cummins

Output Power (kw)

234

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

15:0:1

Displacement (L)

14

Bore X Stroke (mm)

140*152

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

85

Fuel Consump. (g/kw·h)

192.6

Oil Capacity (L)

36.7

Container type Cummins diesel genset power 730 kw 50/60hz

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door
