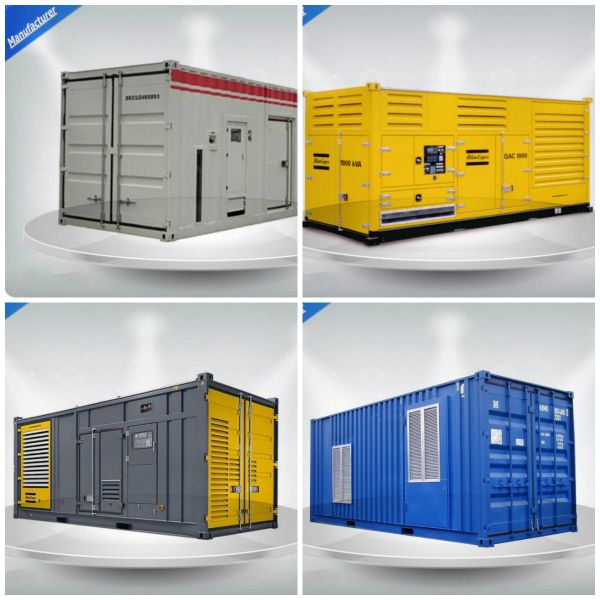

Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Containerized VMAN generator sets, 600- 830 Kw diesel generator with container
Specifications
Engine Brand: :
Vman
Output Power (kw): :
600- 830 kw
Alternator: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
KTA38-G2B
Rated Frequency (Hz) :
50
Type: :
Container
Rated Voltage (V) :
400/230
Brand Name :
Global Power
Model Number :
GP VM780
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Generator data

Diesel Generator GPVM780 (three phase)

Prime Power (kw/kva)

600- 830

Standby Power (kw/kva)

858/1073

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

1407

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Open Type-Dimension (L*W*H) (mm)

4300*1500*2000

Open Type-Weight (kg)

7100

Soundproof Type- Dimension (L*W*H) (mm)

/

Soundproof Type-Weight (kg)

/

Fuel Tank Capacity(L)

/

Continuous Running Time(hr.)

6

Engine specifications

Engine

Main features:

l Sixteen-cylinder, water-cooled, in “V” diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance

Containerized VMAN generator sets, 600- 830 Kw diesel generator with container

Technical data

Model D30A1

Engine brand

VMAN

Output Power (kw)

875

Cylinder No. & Config.

V16 type

Combustion System

direct injection

Compression Ratio

14.6:1

Displacement (L)

29.235

Bore X Stroke (mm)

128*142

Engine Speed (r/min)

1500

Speed Governing

Electronic

Idling Speed(r/min)

700±50

Governor Efficiency

≤3%

Cooling system

Water-cooled

Aspiration Type

Ti

Starting System

24V DC Electric

Fuel Consump. (g/kw·h)

198


Containerized VMAN generator sets, 600- 830 Kw diesel generator with container

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door
