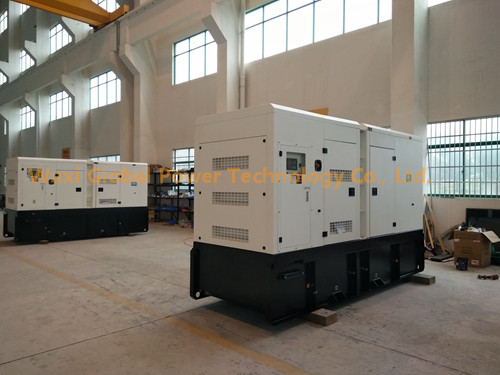

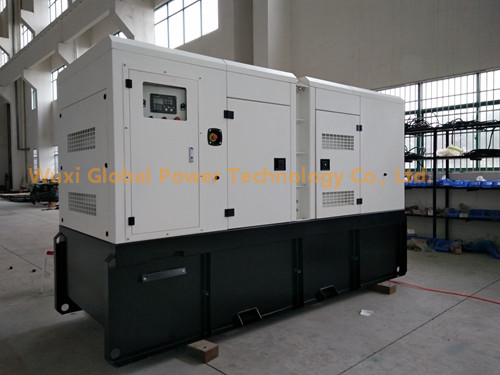

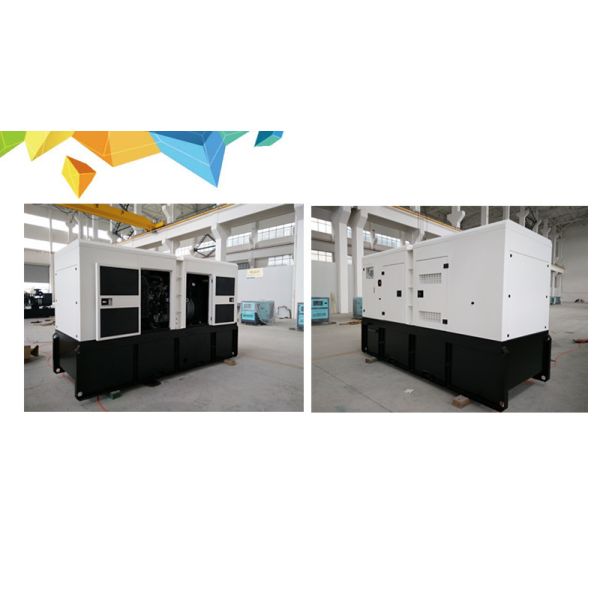

Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
Specifications
Type :
Silent Type
Prime Power :
225 KVA / 180 KW
Standby Power :
248 KVA / 198 KW
Engine :
Perkins 1506A-E88TAG2
Alternator :
Meccalte ECO38-3S4A
Dimensin(L*W*H) :
3400*1400*2150 MM
Weight :
2800 KG
Colour :
White (Can be customized as requirement)
Brand Name :
Global Power
Model Number :
GPP180
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
50 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Description

Perkins 225 KVA / 180 KW Diesel Generator Set Silent Type 400 V / 230 V 3 Phase

Application:

1. Plant

2. Petro Station

3. Defence

4. Transportation

5. Hotel

6. Data Center
……

Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase

Diesel Generator GPP180 (three phase)

Prime Power (kw/kva) 180/225
Standby Power (kw/kva) 200/250
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 324
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm) 2600*900*1570
Open Type-Weight (kg) 1950
Soundproof Type- Dimension (L*W*H) (mm) 3400*1400*2150
Soundproof Type-Weight (kg) 4750
Fuel Tank Capacity(L) 600
Continuous Running Time(hr.) 8

Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase

Engine technical data

Model 1506A-E88TAG2

Engine brand Perkins
Output Power (kw) 217
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 16.9:1
Displacement (L) 8.7
Bore X Stroke (mm) 116.6*135.9
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 37.2
Fuel Consump. (g/kw·h) 201
Oil Capacity (L) 26.4

Alternator technical data

Model ECO38-3S4A

Alternator brand Meccalte
Rated Power (kw) 184
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

Perkins 225 KVA / 180 KW Silent Diesel Generator Set 400V / 230V 3 Phase
