ISUZU 4JB1T Silent Diesel Generator Set 60HZ 28KW 35KVA Mechanical Speed Governing
ISUZU 4JB1T Silent Diesel Generator Set 60HZ 28KW 35KVA Mechanical Speed Governing
Specifications
Brand Name :
Global Power
Model Number :
GP1 IS35
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
ISUZU
Engine Model :
4JB1T/34
Prime Power (kw) :
28kVA / 35kW
Standby Power :
31kVA / 38.5kW
Control System :
HGM410
Frequency & Phase :
60Hz & 3PH
Engine Speed (r/min) :
1800
Cooling system :
Water-cooled
Soundproof Type- Dimension (L*W*H) :
1900*720*1187 (mm)
Soundproof Type-Weight :
1470 (kg)
Description

ISUZU 4JB1T Silent Diesel Generator Set 60HZ 28KW / 35KVA Mechanical Speed Governing​

Technical Specifications :

Prime Power (kw/kva) 28/35
Standby Power (kw/kva) 31/38.5
Rated Voltage (V) 440/230
Voltage Recovery Time ≤1S
Rated Current (A) 49
Rated Frequency (Hz) 60
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 24V 100Ah
Open Type-Dimension (L*W*H) (mm) 1450*660*1000
Open Type-Weight (kg) 570
Soundproof Type- Dimension (L*W*H) (mm) 1900*720*1187
Soundproof Type-Weight (kg) 1470
Fuel Tank Capacity(L) 70
Continuous Running Time(hr.) 8

Model 4JB1T

Engine brand ISUZU
Output Power (kw) 34
Cylinder No. & Config. 4, in-line
Combustion System direct injection
Compression Ratio 16.5:1
Displacement (L) 3.9
Bore X Stroke (mm) 102*120
Engine Speed (r/min) 1800
Speed Governing Mechanical
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 21
Fuel Consump. (g/kw·h) 214
Oil Capacity (L) 11

Model GPI 184G

Alternator brand Global Power
Rated Power (kw) 30
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1800
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

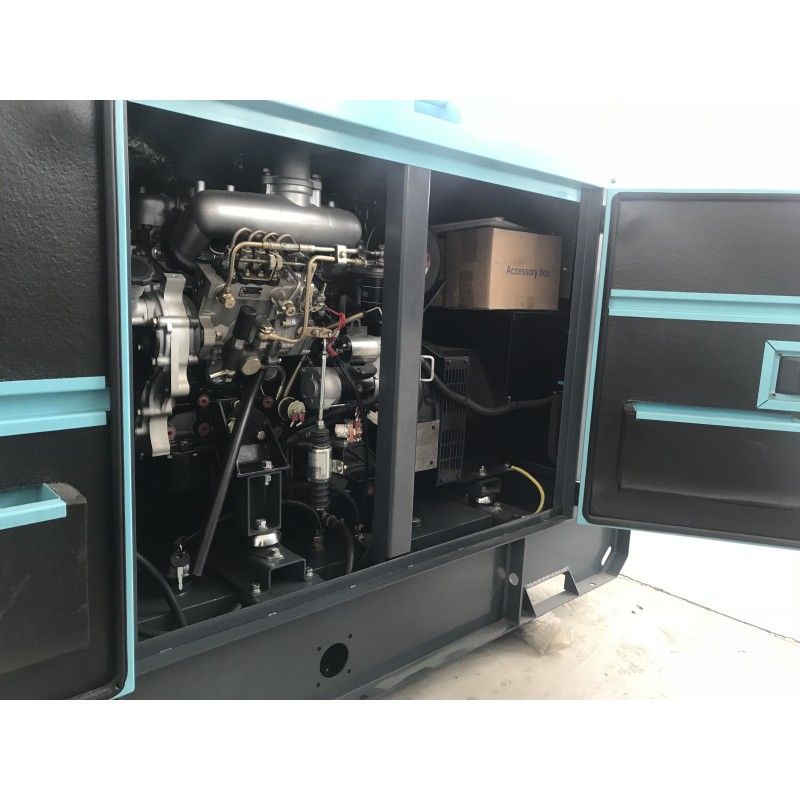

Our Picture :

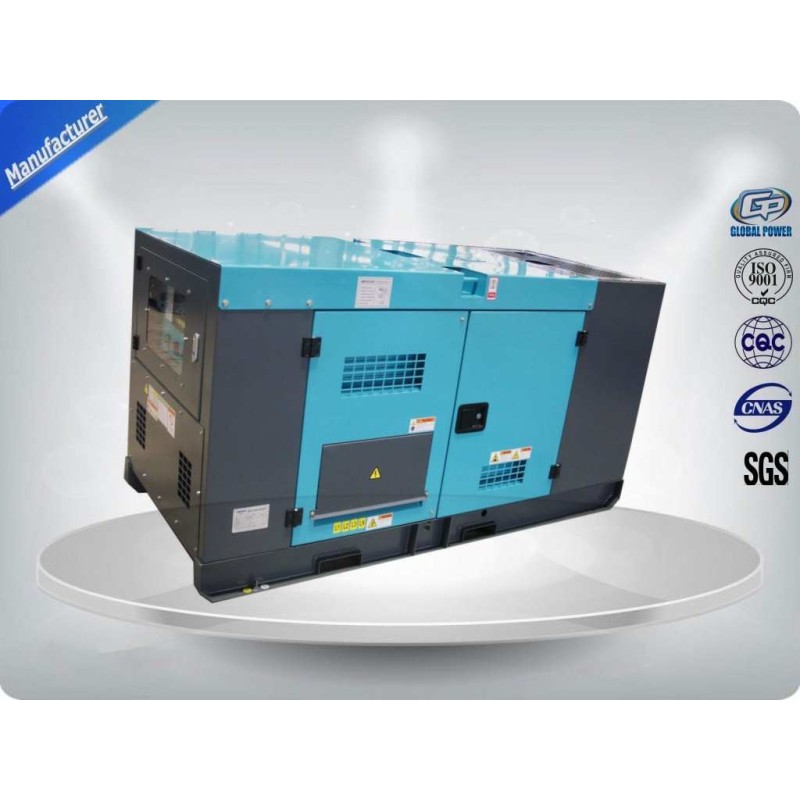

ISUZU 4JB1T Silent Diesel Generator Set 60HZ 28KW 35KVA Mechanical Speed Governing

Competitive service:

1) More than 15 years advanced production experience.

2) As OEM factory, we have obvious competitive in price and leading times.

3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.

5) 1000 hours warranty on the spare parts free provide & technical support in machine life.

Serise model Price:

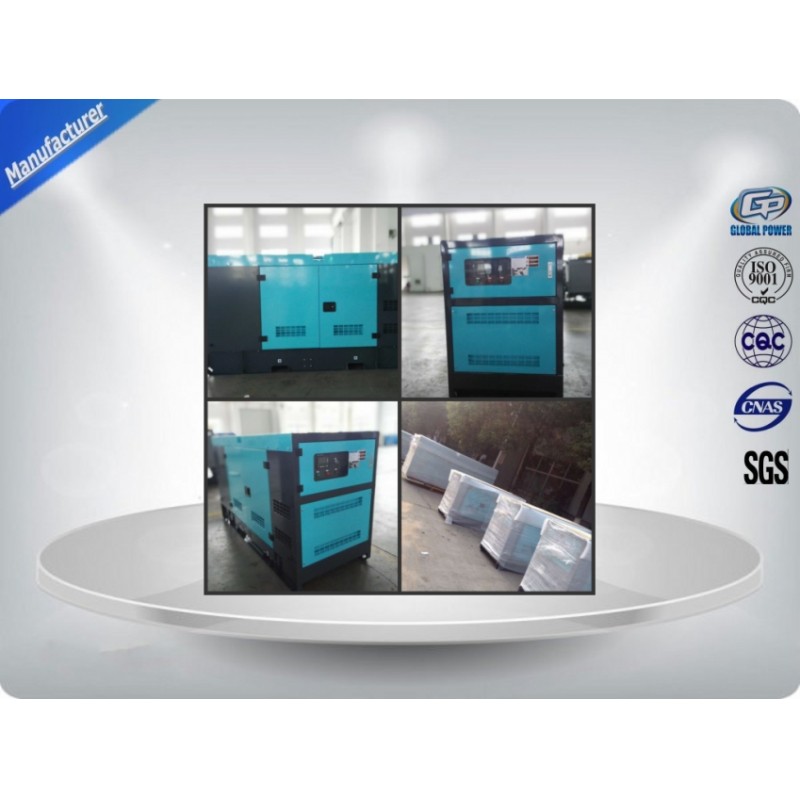

ISUZU 4JB1T Silent Diesel Generator Set 60HZ 28KW 35KVA Mechanical Speed Governing

Warranty and Maintenance:

1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.

4) 24 hours service hotline is available for customers.
