​120kW / 150kVA Diesel Engine Generator Set With Volvo Engine TAD731GE Brushless Alternator ISO9001

Genset:

Engine:
Main features:

• Six-cylinder, water-cooled, in-line diesel engine
• Efficient fuel system for max power output and durability
• Large-capacity air cleaner
• Cost effective, fuel efficient and reliable performance
• Functional engine with compact structure
• Excellent after-sales service and sufficient spare parts supplying
• Easy installation and ready access for routine maintenance

Model TAD731GE

Alternator:
Main features:

• Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
• 2/3 pitch winding as standard, to avoid excessive neutral currents
• Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
• Easy access for installation and maintenance
• IP23 as standard
• Self-excited control system
• Resist of corruption of oil and acid

Model WHI 274FS

Controller features:

• Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
• Security password-protected programming levels
• All parameters use digital modulation, with higher reliability and stability
• Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
• Power supply range is wide, accommodating to different starting battery voltage environment
• Built-in watch dog can never be dead halt, ensuring smooth program execution
• Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

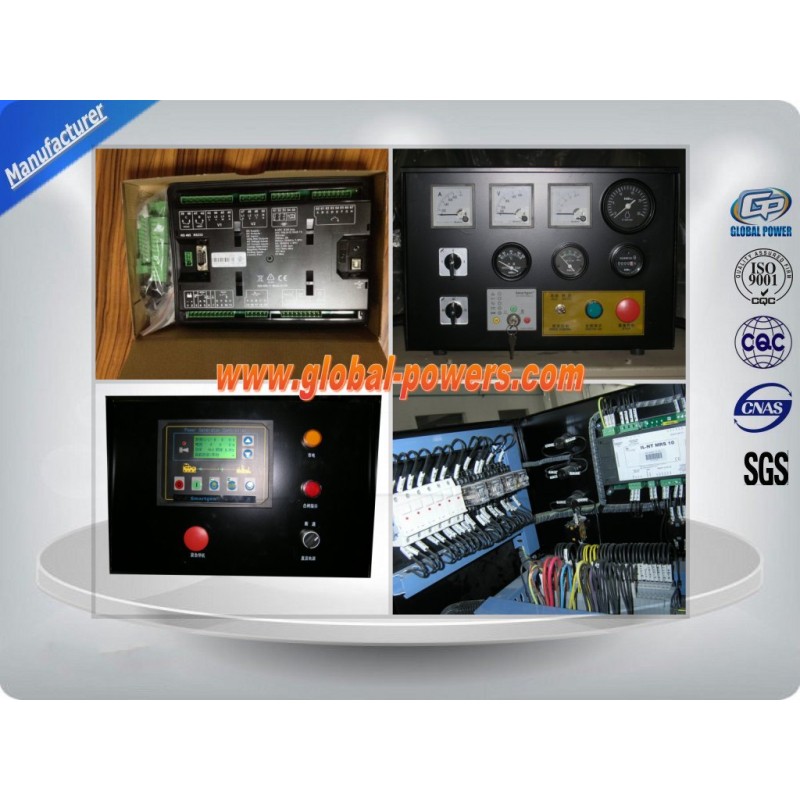

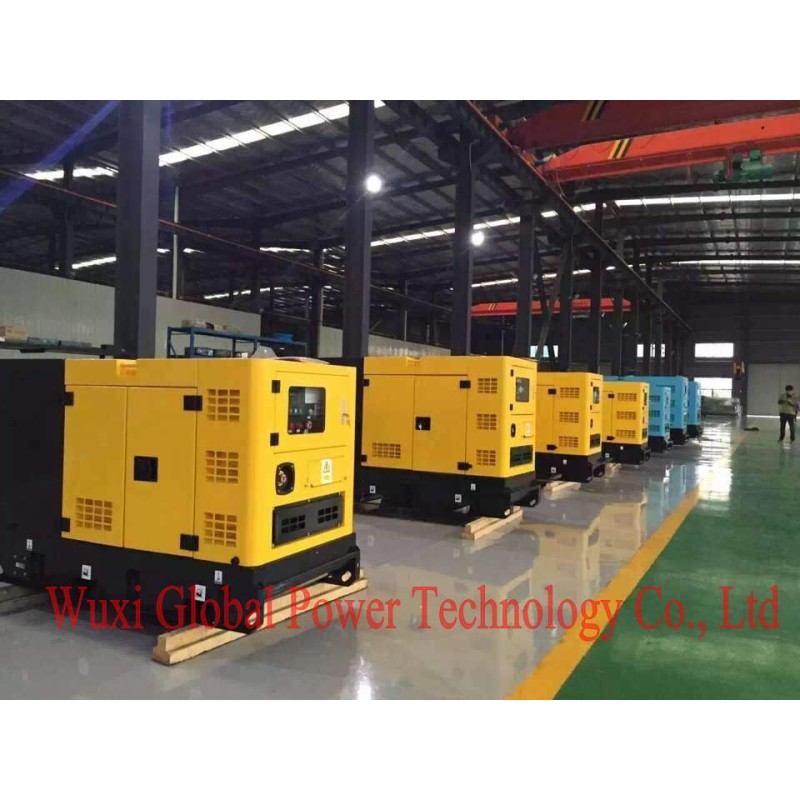

Our Picture :

Features and benefits:

• Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)Tightly structure, excellent design and craft
• Self-diagnostic capability simplifies troubleshooting
• LCD display shows system status and setup information
• Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
• Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
• Enclosed muffler for added quietness
• Service and maintenance accessible through easy-latch side service door.
• Transient state voltage regulation rate:+20%~-15%Un
• The generator excellent Features:

• Voltage regulation range:(95%Un ~105%)Un

• Steady- state Voltage regulation: ≤±1%

• No-load line voltage sine waveform distortion: ≤5%

• Thermal deviation is zero(ANU).
