Rental Cummins Diesel Generator Set Soundproof , 75 dB Three Phase Diesel Generator
Rental Cummins Diesel Generator Set Soundproof , 75 dB Three Phase Diesel Generator
Rental Cummins Diesel Generator Set Soundproof , 75 dB Three Phase Diesel Generator
Rental Cummins Diesel Generator Set Soundproof , 75 dB Three Phase Diesel Generator
Specifications
Brand Name :
Global Power
Model Number :
GP C500
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Cummins
Engine Model :
KTAA19-G6A
Output Power (kw) :
527
Rated Frequency (Hz) :
50
Alternator :
Stamford / Meecalt / copy Stamford
Canopy Size (l*w*h/mm） :
4600*1800*2530
Canopy Weight(KG) :
10400
Type :
Slient
Description

Rental Cummins Diesel Generator Set Soundproof , 75 dB Three Phase Diesel Generator

Technical Specifications :

Genset

Prime Power (kw/kva)

500 / 625

Standby Power (kw/kva)

550 / 688

Voltage Recovery Time

≤1S

Rated Current (A)

900

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Fuel Tank Capacity(L)

800

Engine

Engine brand

Cummins

Output Power (kw)

527

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

13.0:1

Displacement (L)

18.9

Bore X Stroke (mm)

159*159

Engine Speed (r/min)

1500

Speed Governing

Mechanical

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday…

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

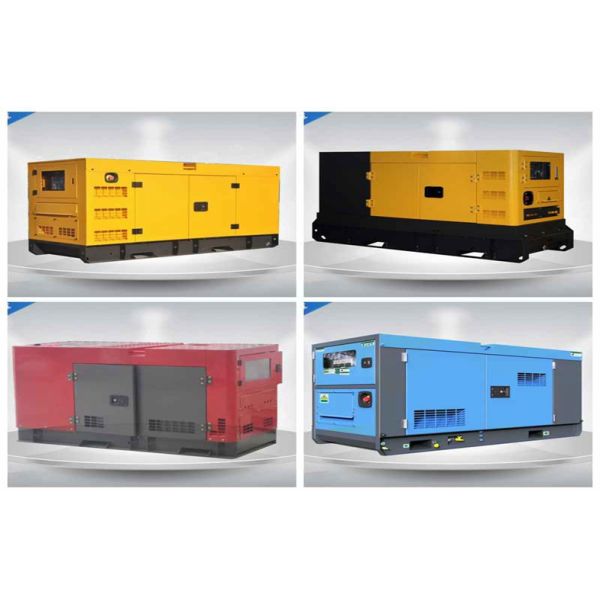

Our Picture :

Rental Cummins Diesel Generator Set Soundproof , 75 dB Three Phase Diesel Generator

Generator soundproof/Silent and canopy

  • Excellent ventilation
  • Black finish stainless steel locks and hinges
  • Zinc plated or stainless steel fasteners
  • Body made from steel components treated with polyester powder coating
  • Two large doors on either side
  • Radiator fill access plate
  • Fully guarded cooling fan and battery charging alternator
  • Fuel fill and battery access via lockable access doors
  • Emergency stop button on canopy exterior
  • Lube oil drain and radiator drain to exterior
  • Control panel viewing window
  • Lifting points on base frame

Our Service:

  • If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  • Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  • Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

  • Guarantee Period: One year or 1000 running hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent by air express.
  • 24 hours service hotline is available for customers.
