22kw / 28kva Prime Power Cummins Engine Slient Diesel Generator Set
22kw / 28kva Prime Power Cummins Engine Slient Diesel Generator Set
22kw / 28kva Prime Power Cummins Engine Slient Diesel Generator Set
22kw / 28kva Prime Power Cummins Engine Slient Diesel Generator Set
Specifications
Brand Name :
Global Power
Model Number :
GP C22
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Cummins
Engine Model :
4B3.9-G/24
Engine Output :
24kw
Type :
silent
Alternator :
Stamford / Meecalt / copy Stamford
Canopy Size (l*w*h/mm） :
2250×950×1300
Canopy Weight(KG) :
1640kg
Control Module :
DeepSea , Comap , Smartgen.
Description

Technical Specifications :

Genset

Prime Power (kw/kva)

22 / 28

Standby Power (kw/kva)

24 / 30

Voltage Recovery Time

≤1S

Rated Current (A)

40

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Fuel Tank Capacity(L)

70

Engine

Engine brand

Cummins

Output Power (kw)

24

Cylinder No. & Config.

4, in-line

Combustion System

direct injection

Compression Ratio

16.5:1

Displacement (L)

3.9

Bore X Stroke (mm)

102*120

Engine Speed (r/min)

1500

Speed Governing

Mechanical

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday…

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

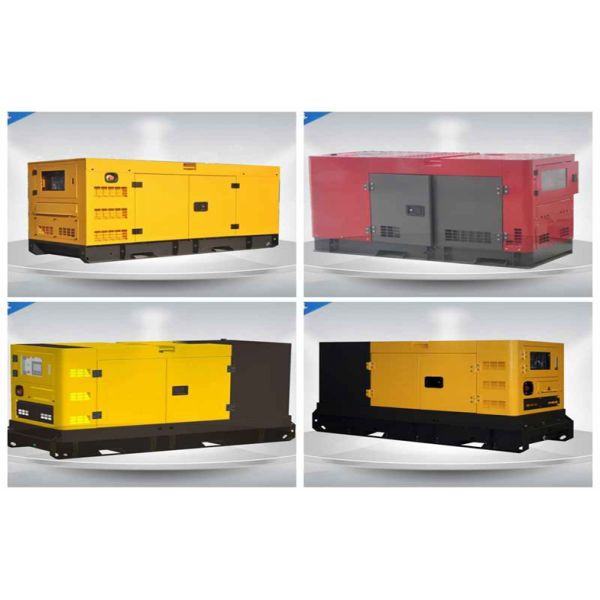

Our Picture :

22kw / 28kva Prime Power Cummins Engine Slient Diesel Generator Set

Generator soundproof/Silent and canopy

  • Excellent ventilation
  • Black finish stainless steel locks and hinges
  • Zinc plated or stainless steel fasteners
  • Body made from steel components treated with polyester powder coating
  • Two large doors on either side
  • Radiator fill access plate
  • Fully guarded cooling fan and battery charging alternator
  • Fuel fill and battery access via lockable access doors
  • Emergency stop button on canopy exterior
  • Lube oil drain and radiator drain to exterior
  • Control panel viewing window
  • Lifting points on base frame

Our Service:

  • If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  • Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  • Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

  • Guarantee Period: One year or 1000 running hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent by air express.
  • 24 hours service hotline is available for customers.
