Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type
Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type
Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type
Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type
Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type
Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type
Specifications
Brand Name :
Global Power
Model Number :
SU30LHE
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
2,000sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
FOB, CRF,CIF,EXW…
Product Name :
Open Diesel Powered Generator
Output Type :
AC Three Phase
Rated Voltage: :
400/230
Prime Power (kw/kva) :
30/37.5
Standby Power(kw/kva) :
33/41
Engine Model :
K4102-D1
Alternator Brand :
GPI 184G
Frequency :
50Hz
Weight(kg) :
620
Dimension Size(L*W*H/mm) :
1570*760*1270
Package :
Plastic Foam or Plywood Case
Control Module Brand :
HGM410
Description

Model: SU30LHE

Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type

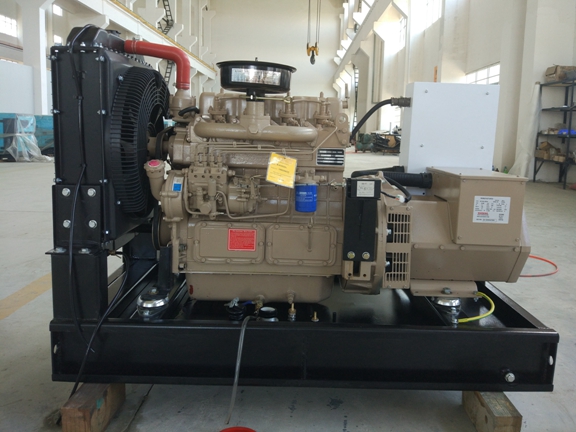

Open Diesel Generator data

Diesel Generator SU30LHE (three phase)

Prime Power (kw/kva) 30/37.5
Standby Power (kw/kva) 33/41
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 54
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm) 1570*760*1270
Open Type-Weight (kg) 620
Base Fuel Tank /
Continuous Running Time(hr.) 8

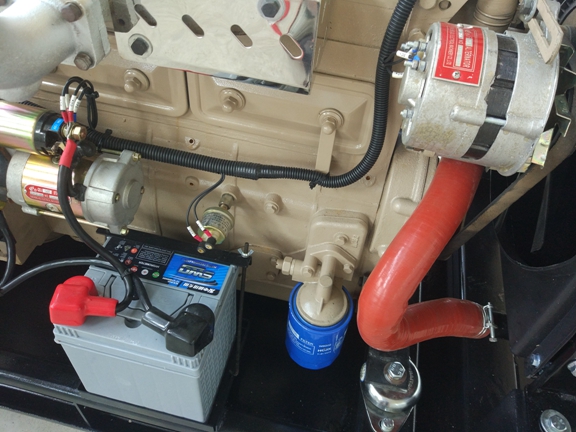

Engine specifications

Engine

Main features:

  1. Four-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance

Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type

Technical data

Model K4102D1

Engine brand Kofo
Output Power (kw) 36
Cylinder No. & Config. 4, in-line
Combustion System Eddy current
Aspiration type Natural aspirated
Displacement (L) 3.6
Bore X Stroke (mm) 100*115
Engine Speed (r/min) 1500
Speed Governing Mechanical / Electric
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 13
Fuel Consump. (g/kw·h) ≤258
Oil Capacity (L) 13

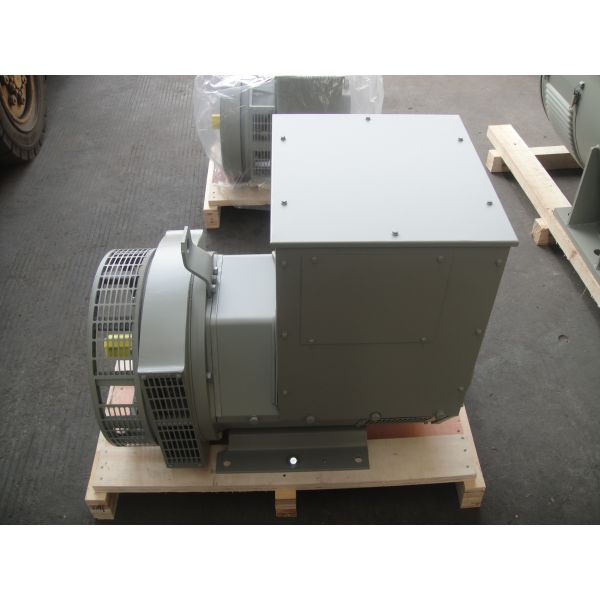

Alternator specifications

Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type

Alternator

Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid

Technical data

Model GPI 184G

Alternator brand Global Power
Rated Power (kw) 30
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

Control system

HGM410 controller

Water Cooled 30kw Dg Diesel Generator AC Three Phase Output Type

Main features:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
