80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption
Specifications
Brand Name :
Global Power
Model Number :
GP P64
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Prime Power :
64KW / 80KVA
Rated Voltage :
400V / 230V
Engine :
Perkins 1104A-44TG2
Alternator :
Meccalte ECP32-3L4B
Engine Speed :
1500 RPM
Control Panel :
HGM, DeepSea，ComAp, etc.
Fuel Tank Capacity :
180 L
Genset Type :
Open Type
Description

80 KVA 50 HZ 3 Phases Open Type Diesel Generator 400 V Low Fuel Consumption

Applications:

1. Banks and insurance

2. Data centers

3. Sales infrastructure

4. Agri-food and pharmaceutical industries

5. Health care: hospital, clinics, and retirement homes

6. Construction

80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption

Generator Set Specification GPP64
Type Open type
Prime power 64 kw / 80 kva
Stanby power 66 kw / 83 kva
Rated voltage 400 V /230 V
Rated current 108 A
Engine basic parameters

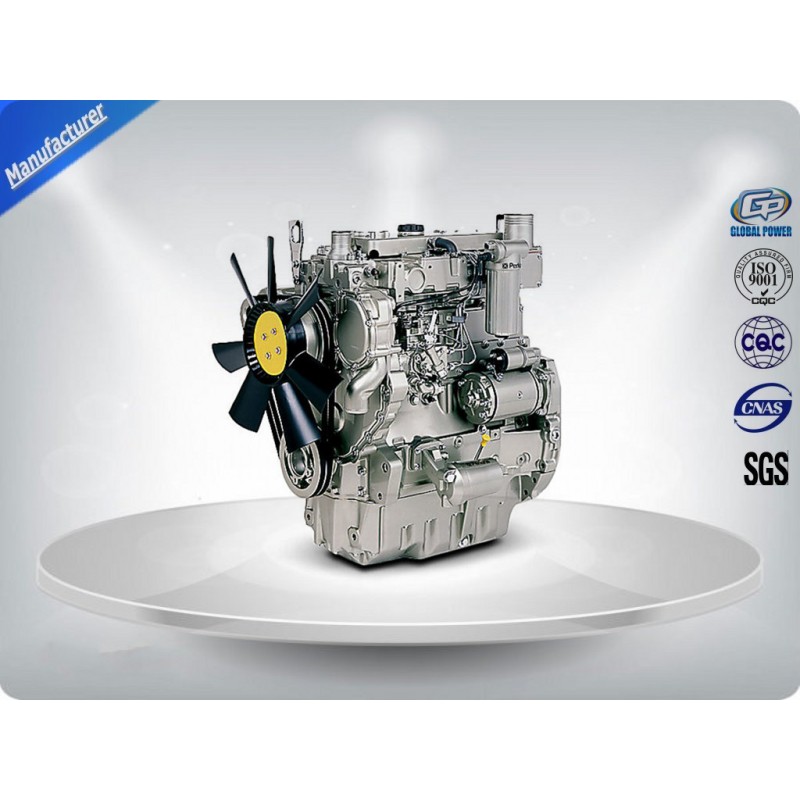

Model 1104A-44TG1
Continuous power/speed 72 kw / 1500rpm
Displacement: 4.4 L
Rated Fuel Consumption at 100% load 216 g/kw.h
Starting method 12V electric start
Alternator basic parameters
Brand Maccalte
Type Brushless, 100% copper wires stator & rotator
Copper wires vernished times 3 times
Rated output power 68 kw
Voltage Regulate method Adjusted automatically by AVR
Protection class / Insulation Class IP21 / H
Total offer list

1) Diesel engine ( corrugated tube, silencer, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover,high quality sensors, tool case, free spare parts, catalogue & manual)

2) Alterantor (air breaker, AVR, instruction manual)

3) Alternator cabinet( DELEX brand voltage/current/HZ meter, Schneider breaker, Omron relay)

4) Base steel frame ( industrial shock absorbers, forklift work hole)

5) Free-maintenance battery (include connecting cables, switch)(lead-acid)

6) Strong woodcase packing.

80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel ConsumptionShipping:

Dispatch will be arranged within 30 days once your payment is verified. Package will be shipped from Shanghai Port, reaching most of the countries all over the world. Please be advised that international delivery highly depends on destination, local customs, post service and other factors.

80KVA 50HZ 3 Phases Open Type Diesel Generator 400V Low Fuel Consumption

Commitment:

  1. Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.
  2. Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001
  3. Environmental Management System.
  4. All products are CE-certified.
  5. All products have passed rigorous factory test to ensure high quality.
  6. Product warranty terms are strictly enforced.
  7. High-efficiency assembly and production lines ensure on-time delivery.
  8. Professional, timely, thoughtful and dedicated services are offered.
  9. Favorable and complete original accessories are supplied.
  10. Regular and irregular technical training are provided all year round.
  11. 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.
