400KW 6 Cylinder Cummins Diesel Generators With Stamford Self Exciting Alternator
400KW 6 Cylinder Cummins Diesel Generators With Stamford Self Exciting Alternator
Specifications
Engine Brand :
Cummins
Engine Model :
QSZ13-G3
Output Power (kw) :
400
Rated Voltage (V) :
400/500
Speed Governing :
Electronic
Open Type-Weight (kg) :
3900
Open Type-Dimension (L*W*H) (mm) :
3450*1250*1930
Soundproof Type- Dimension (L*W*H) (mm) :
4500*1500*2300
Silent Type-Weight (kg) :
4900
Brand Name :
Cummins
Model Number :
GP C400
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
30 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

400kw / 500kva Diesel Generating set Less maintenance Longer service life ​

Technical Specifications :

Genset

Prime Power (kw/kva)

400 / 500

Standby Power (kw/kva)

440 / 550

Voltage Recovery Time

≤1S

Rated Current (A)

721

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Fuel Tank Capacity(L)

800

Engine

Engine brand

Cummins

Output Power (kw)

450

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

14.5:1

Displacement (L)

13

Bore X Stroke (mm)

 159*159

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

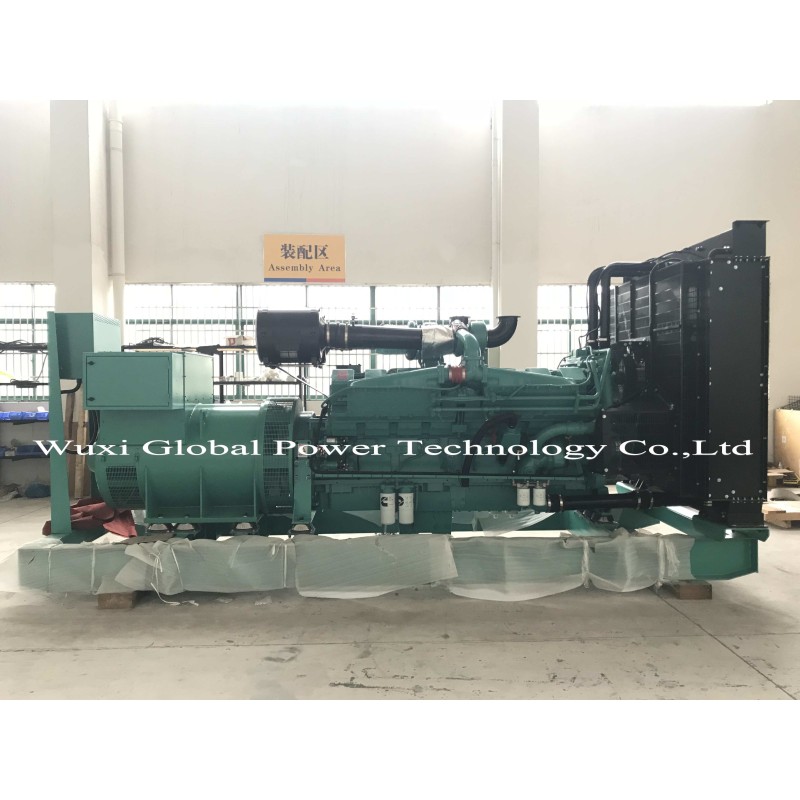

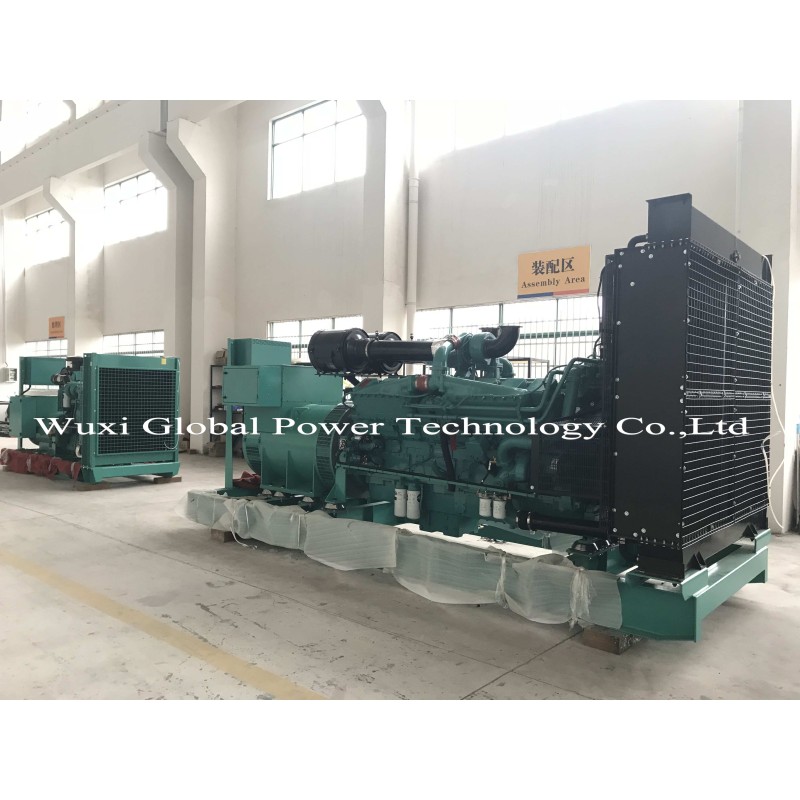

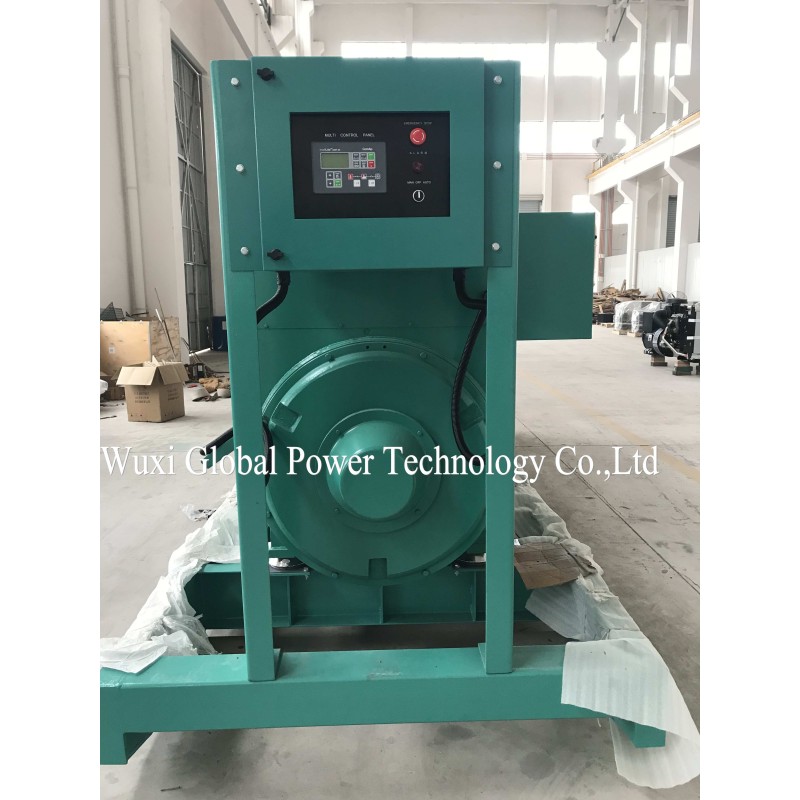

Our Picture :
400KW 6 Cylinder Cummins Diesel Generators With Stamford Self Exciting Alternator

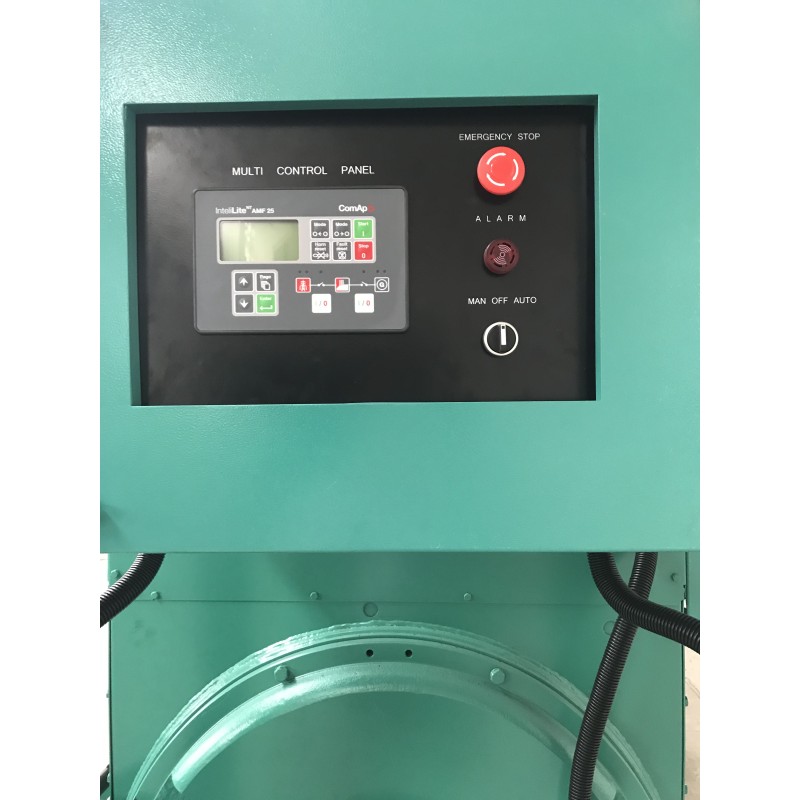

Control Panel :

400KW 6 Cylinder Cummins Diesel Generators With Stamford Self Exciting Alternator

400KW 6 Cylinder Cummins Diesel Generators With Stamford Self Exciting Alternator

Competitive service:

1) More than 15 years advanced production experience.

2) As OEM factory, we have obvious competitive in price and leading times.

3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.

5) 1000 hours warranty on the spare parts free provide & technical support in machine life.

Warranty and Maintenance:

1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.

4) 24 hours service hotline is available for customers.
