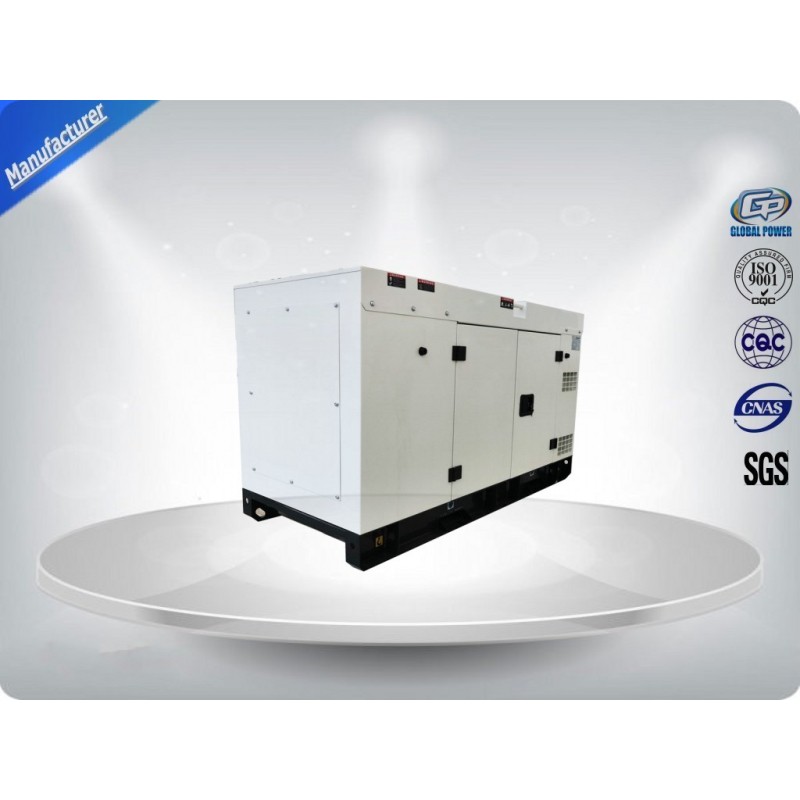

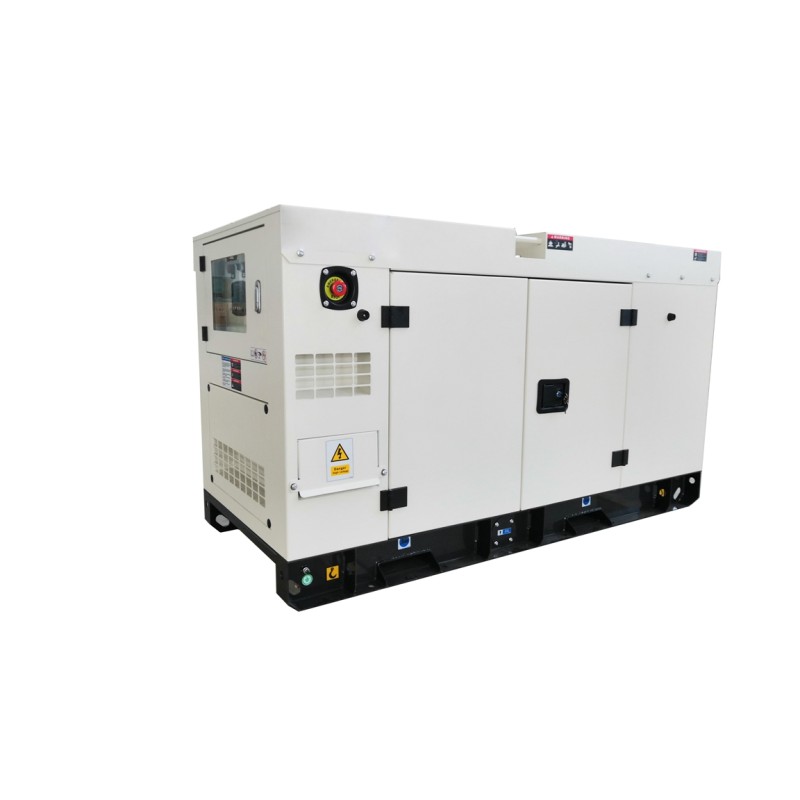

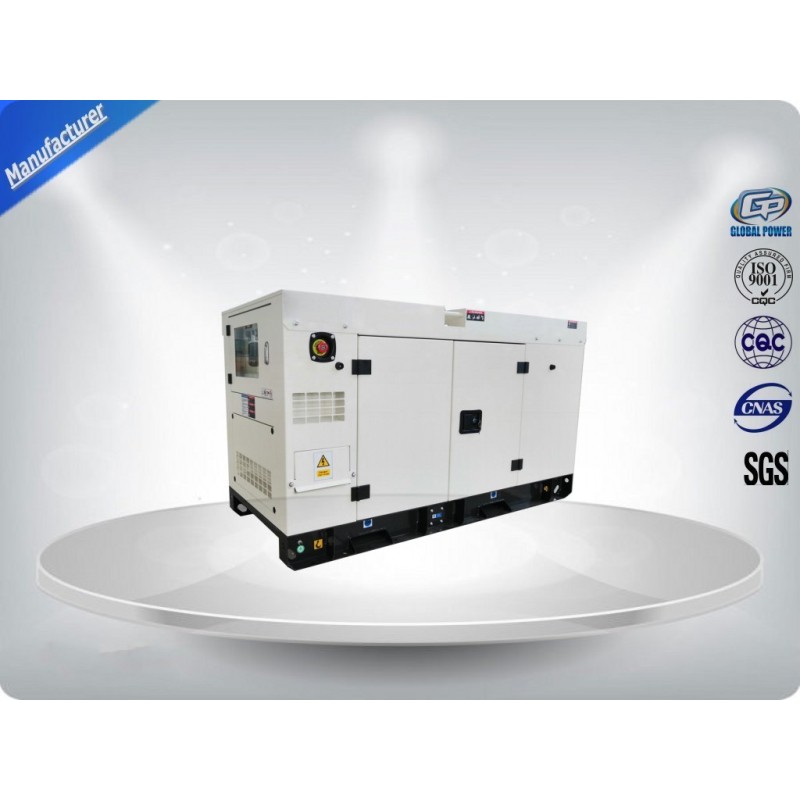

16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
Specifications
Brand Name :
Global Power
Model Number :
GP YD16
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
Plastic Foam or Plywood Case
Engine Model :
Yangdong, YSD490D
Alternator brand :
Copy Stamford, GPI 184ES
Frequency :
50Hz
Rated Voltage: :
415/240
Prime Power (kw/kva) :
16/20
Standby Power(kw/kva) :
18/22
Rated Current (A) :
28
Running Noise db(A)/7m(Silent type) :
75(silent type)
Control Module Brand :
SmartGen, Deepsea, ComAp
Battery capacity (V-Ah) :
12V 45Ah
Voltage Recovery Time :
≤1S
Description

Model: GP YD16

Small Diesel Generator Applications:


Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door

16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine

Emergency diesel Generator set data

Diesel Generator GP YD16 (three phase)

Prime Power (kw/kva) 16/20
Standby Power (kw/kva) 18/22
Rated Voltage (V) 415/240
Voltage Recovery Time ≤1S
Rated Current (A) 28
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 45Ah
Open Type-Dimension (L*W*H) (mm) 1159*578*940
Open Type-Weight (kg) 450
Soundproof Type- Dimension (L*W*H) (mm) 1900*800*1050
Soundproof Type-Weight (kg) 726
Fuel Tank Capacity(L) 160
Continuous Running Time(hr.) 8

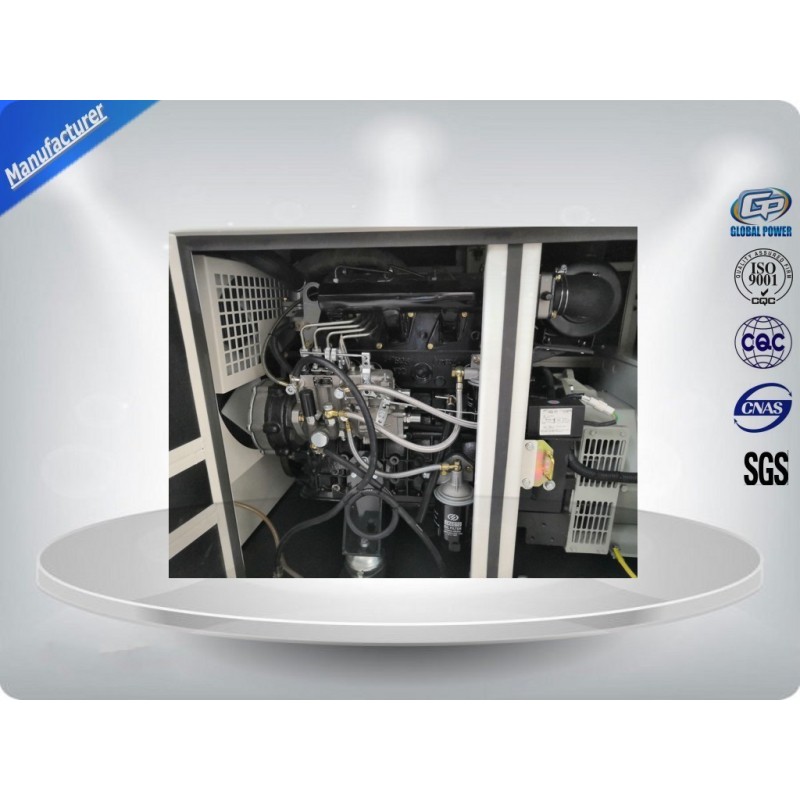

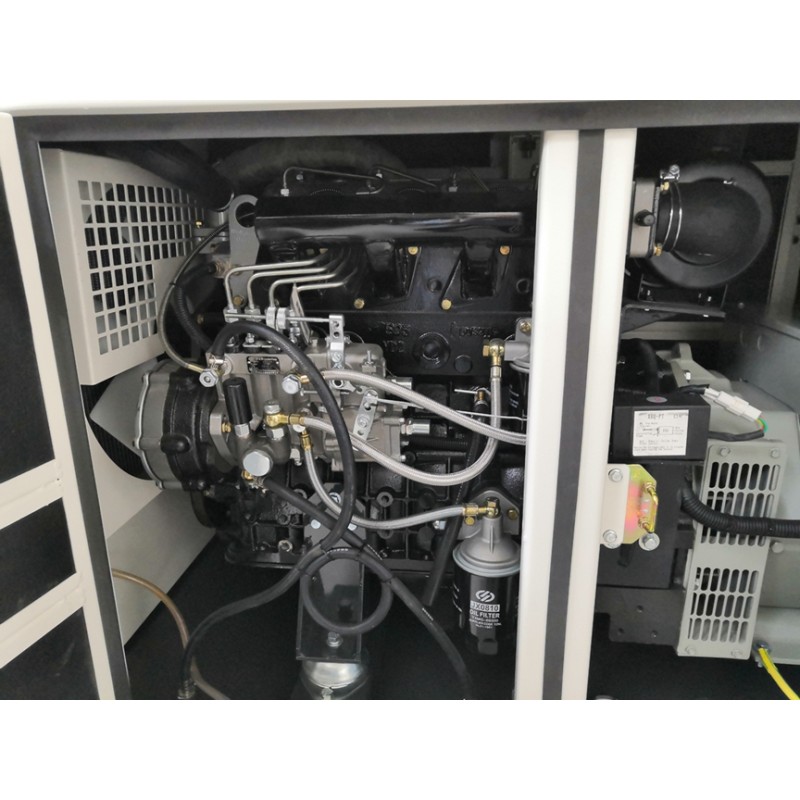

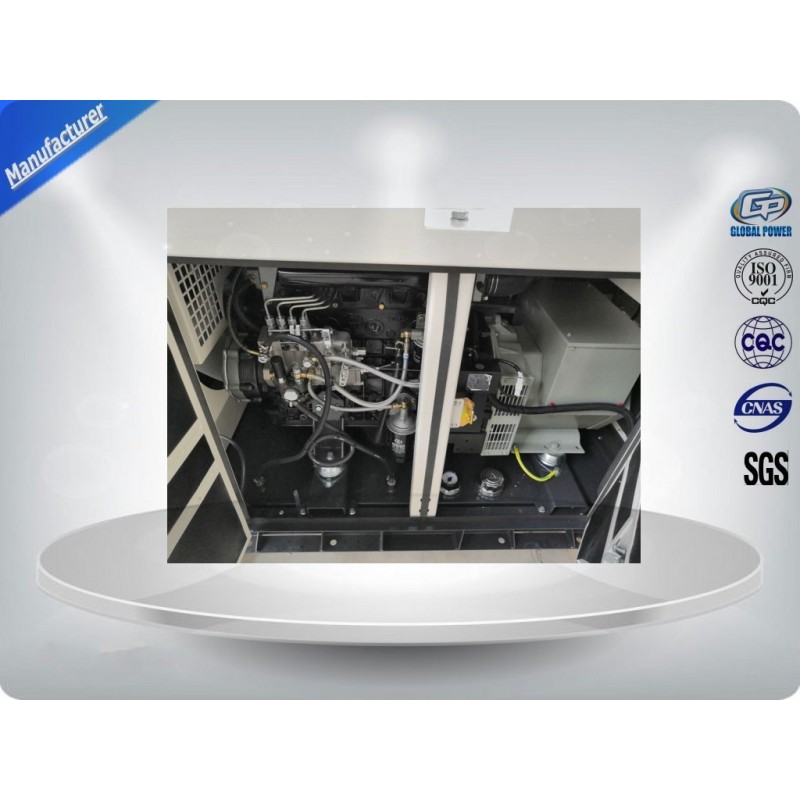

Yangdong Engine specifications


Engine
Main features:

  1. Four-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance


16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine

Technical data

Model YSD490D

Engine brand Yangdong
Output Power (kw) 21
Cylinder No. & Config. 4, in-line
Combustion System direct injection
Aspiration type Naturally aspirated
Displacement (L) 2.543
Bore X Stroke (mm) 90*100
Engine Speed (r/min) 1500
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Fuel Consump. (g/kw·h) ≤225
Lub. Consump (g/kw·h) ≤2.72

Alternator specifications


Copy Stamford Alternator
Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid


Technical data

Model GPI 184ES

Alternator brand Global Power
Rated Power (kw) 16
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%


Control system
16kw 20kva Electric Start Diesel Generator Set With Yangdong 4 Cylinder Diesel Engine
HGM410 controller

Main features:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
