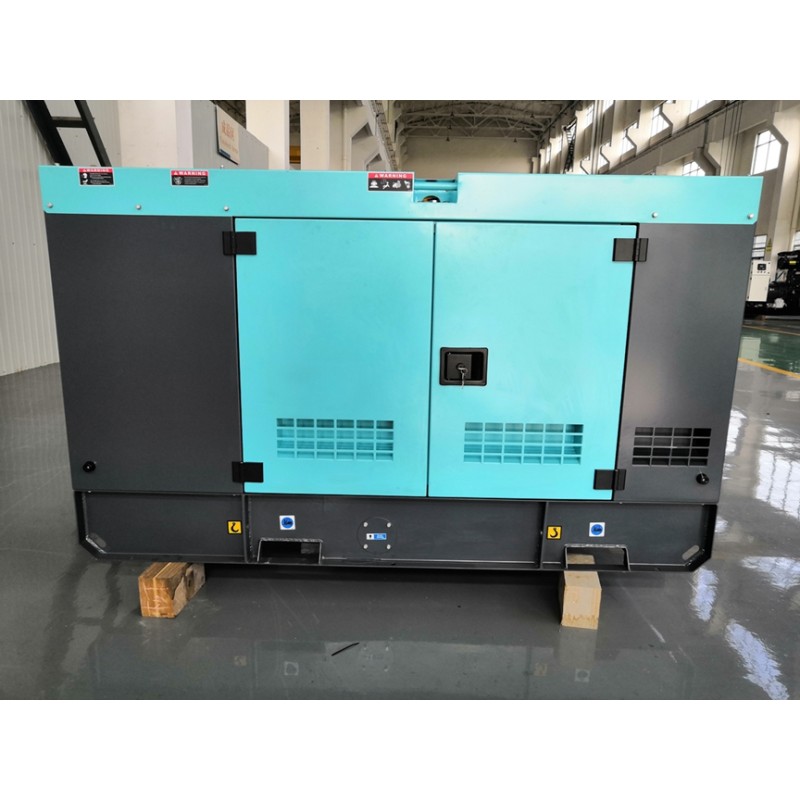

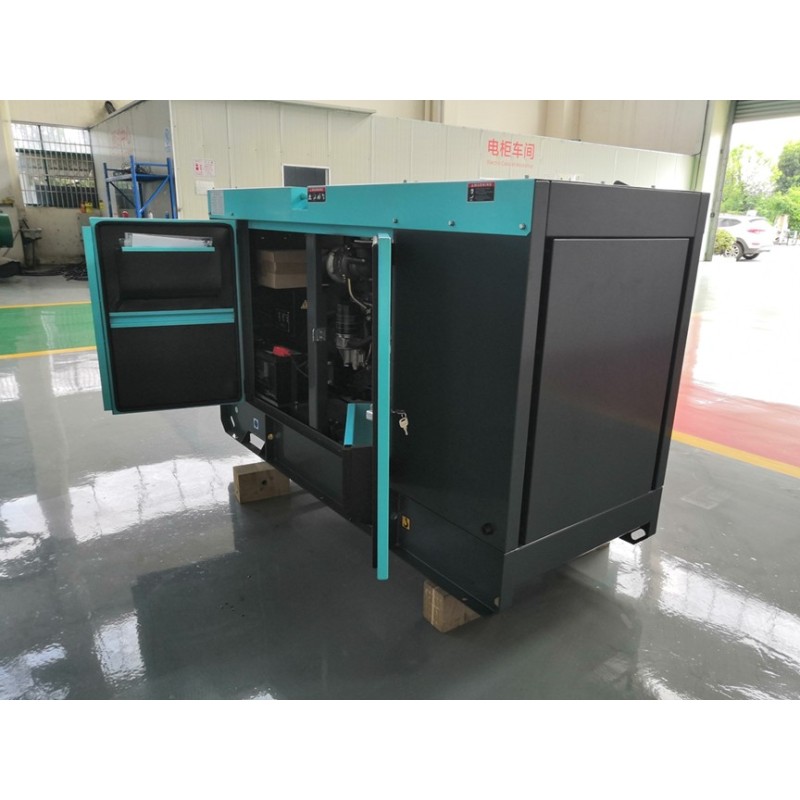

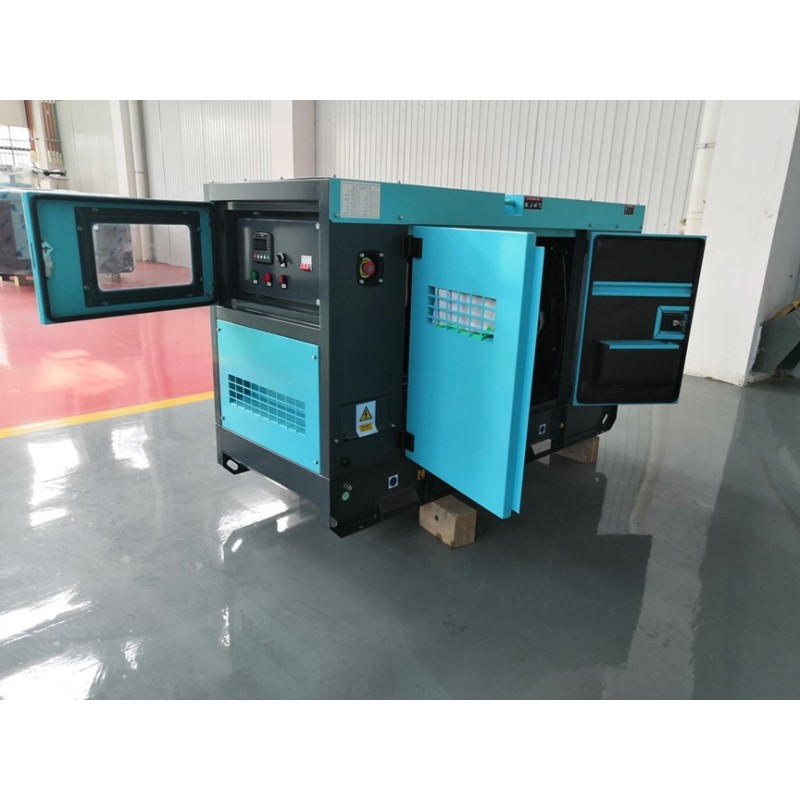

24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine
24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine
24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine
24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine
24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine
24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine
Specifications
Product Name :
Emergency diesel generator set
Engine Model :
ISUZU, 4JB1T
Alternator brand :
Copy Stamford, GPI 184G
Frequency :
50Hz
Rated Voltage: :
380/220
Prime Power (kw/kva) :
24/30
Standby Power(kw/kva) :
26/33
Rated Current (A) :
46
Running Noise db(A)/7m(Silent type) :
75(silent type)
Control Module Brand :
SmartGen, Deepsea, ComAp
Battery capacity (V-Ah) :
12V 45Ah
Voltage Recovery Time :
≤1S
Brand Name :
Global Power
Model Number :
GP IS24
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
Plastic Foam or Plywood Case
Description


24kw / 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine

Model: GP IS24

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–68dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door

24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine

Generator data

Diesel Generator GP IS24 (three phase)

Prime Power (kw/kva) 24/30
Standby Power (kw/kva) 26/33
Rated Voltage (V) 380/220
Voltage Recovery Time ≤1S
Rated Current (A) 46
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 68 (Soundproof Set)
Battery capacity (V-Ah) 12V 45Ah
Open Type- Dimension (L*W*H) (mm) 1450*660*1000
Open Type-Weight (kg) 570
Soundproof Type- Dimension (L*W*H) (mm) 1900*740*1130
Soundproof Type-Weight (kg) 700
Continuous Running Time(hr.) 8

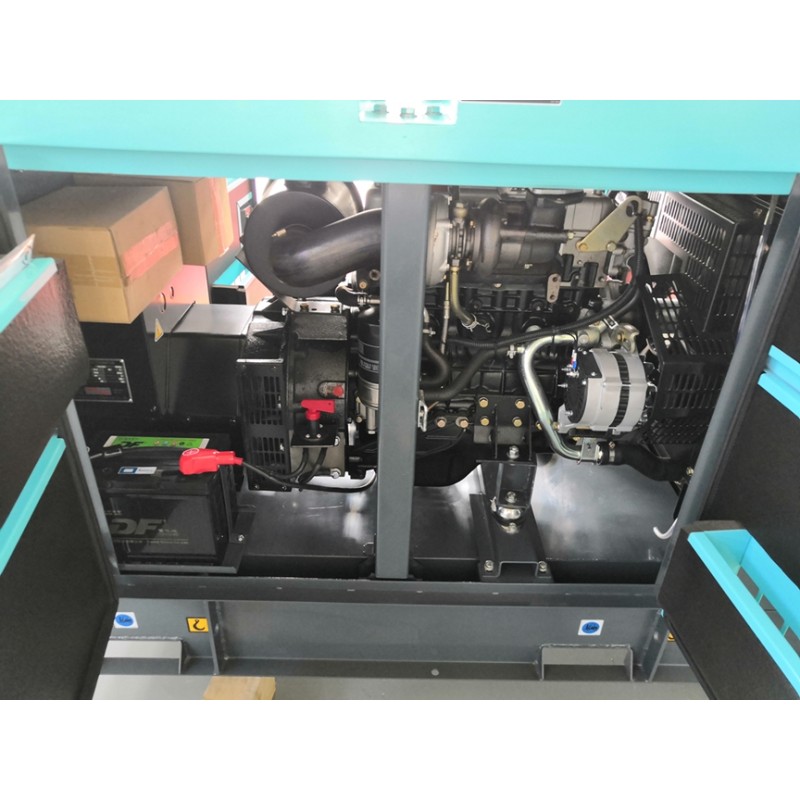

ISUZU Engine specifications

Engine specifications


Engine
Main features:

l Four-cylinder, water-cooled, in-line diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance





Technical data
Model 4JB1T

Engine brand ISUZU
Output Power (kw) 28
Cylinder No. & Config. 4, in-line
Combustion System direct injection
Aspiration type Turbocharged
Displacement (L) 2.779
Bore X Stroke (mm) 93*102
Engine Speed (r/min) 1500
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Fuel Consump. (g/kw·h) ≤218

Alternator specifications


Copy Stamford Alternator
Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid

24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine

Alternator specifications


Alternator
Main features:

l Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions

l 2/3 pitch winding as standard, to avoid excessive neutral currents

l Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings

l Easy access for installation and maintenance

l IP23 as standard

l Self-excited control system

l Resist of corruption of oil and acid



Technical data
Model GPI184G

Alternator brand Global Power
Rated Power (kw) 25
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%


Control system
24kw 30kva Diesel Electric Generator With ISUZU 4 Cylinder Diesel Engine
HGM410 controller

Main features:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
