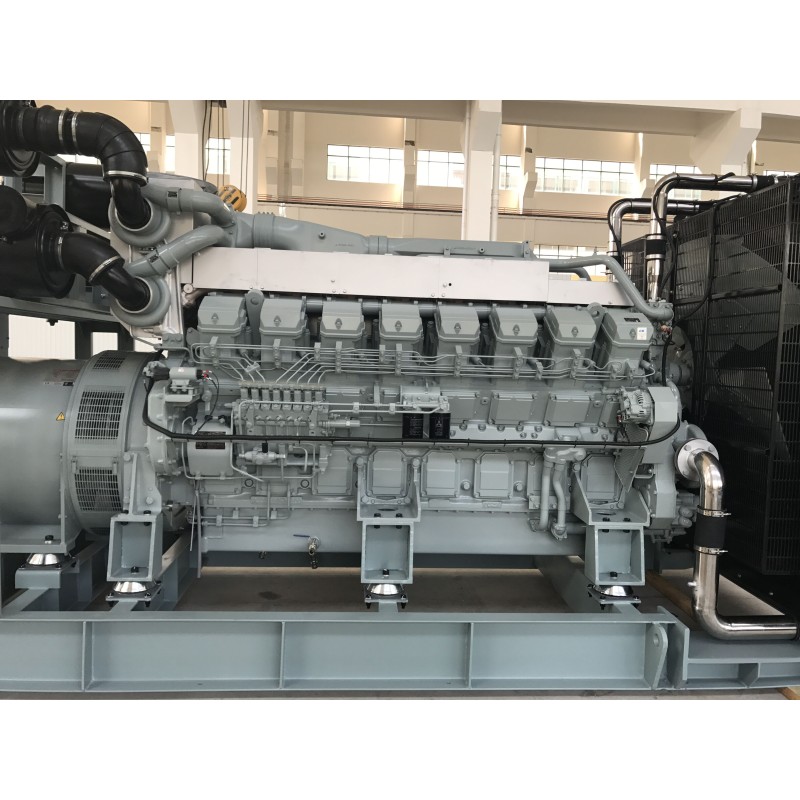

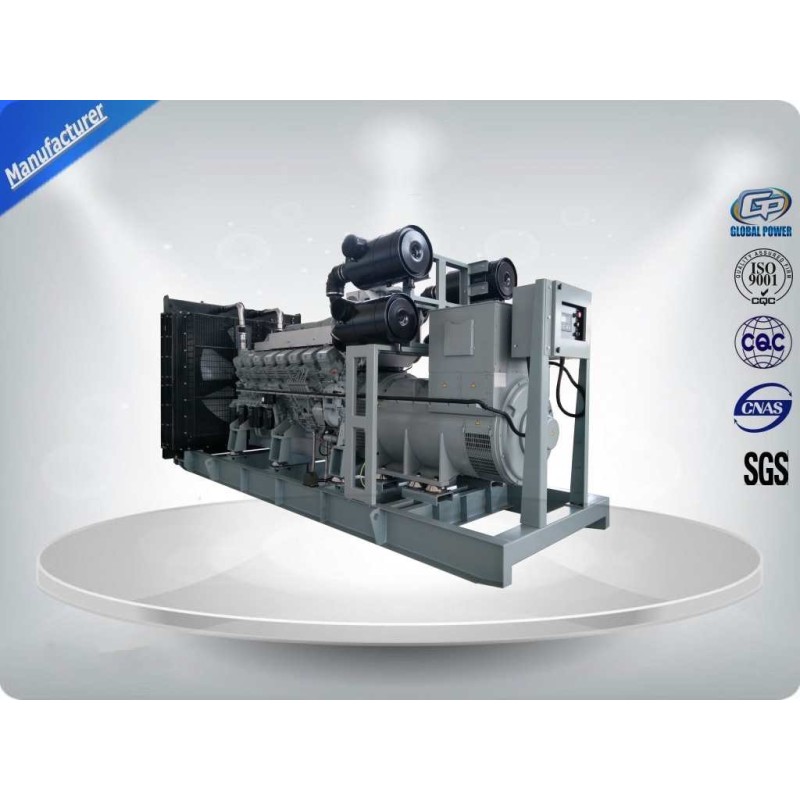

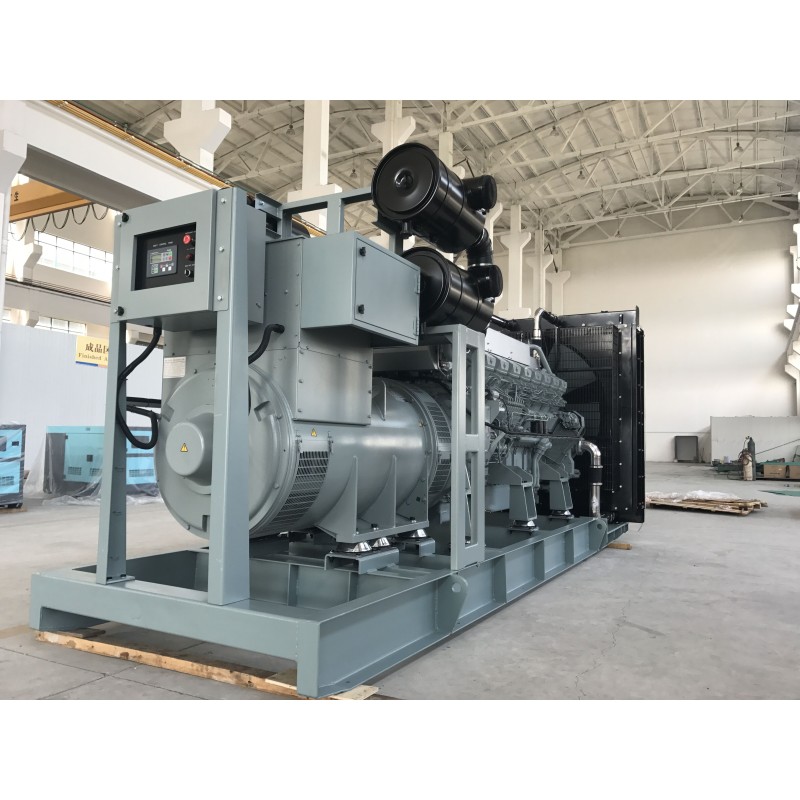

1200kw 1500kva 50Hz Mitsubishi Generator Set With Stamford Alternator IP23 400V 230V
1200kw 1500kva 50Hz Mitsubishi Generator Set With Stamford Alternator IP23 400V 230V
1200kw 1500kva 50Hz Mitsubishi Generator Set With Stamford Alternator IP23 400V 230V
1200kw 1500kva 50Hz Mitsubishi Generator Set With Stamford Alternator IP23 400V 230V
Specifications
Brand Name :
Global Power
Model Number :
GP M1200
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
FOB, CRF, CIF, EXW…
Engine Model :
Mitsubishi,S12R-PTAA2-C
Alternator brand :
Stamford, PI 734C
Frequency :
50Hz
Prime Power (kw/kva) :
1200/1500
Standby Power(kw/kva) :
1320/1650
Rated Voltage: :
400/230
Output Type :
AC Three Phase
Control Module Brand :
SmartGen, Deepsea
Open Type-Dimension (L*W*H) (mm) :
4920*2192*2976
Open Type-Weight (kg) :
13117
Package :
Plastic Foam or Plywood Case
Description

Model: GPM1200

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

1200kw 1500kva 50Hz Mitsubishi Generator Set With Stamford Alternator IP23 400V 230V

Features and benefits

  • Tightly structure, excellent design and craft
  • Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  • Self-diagnostic capability simplifies troubleshooting
  • LCD display shows system status and setup information
  • Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  • Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  • Enclosed muffler for added quietness
  • Service and maintenance accessible through easy-latch side service door

1200kw 1500kva 50Hz Mitsubishi Generator Set With Stamford Alternator IP23 400V 230V

Generator data

Diesel Generator GPM1200 (three phase)

Prime Power (kw/kva) 1200/1500
Standby Power (kw/kva) 1320/1650
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 2165
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 115
Battery capacity (V-Ah) 12V 150Ah*2*2
Open Type-Dimension (L*W*H) (mm) 4920*2192*2976
Open Type-Weight (kg) 13117
Continuous Running Time(hr.) 6

Engine specifications

Engine

Main features:

  • Twelve-cylinder, water-cooled, in “V” diesel engine
  • Efficient fuel system for max power output and durability
  • Large-capacity air cleaner
  • Cost effective, fuel efficient and reliable performance
  • Functional engine with compact structure
  • Excellent after-sales service and sufficient spare parts supplying
  • Easy installation and ready access for routine maintenance

1200kw 1500kva 50Hz Mitsubishi Generator Set With Stamford Alternator IP23 400V 230V

Technical data

Model S12R-PTAA2

Engine brand MITSUBISHI
Output Power (kw) 1277
Cylinder No. & Config. 12, in “V”
Combustion System direct injection
Displacement (L) 49.03
Bore(m) 170
Stroke (m) 180
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 317
Fuel Consump. (g/kw·h) 199
Oil Capacity (L) 180

Alternator specifications

Alternator

Main features:

  • Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  • 2/3 pitch winding as standard, to avoid excessive neutral currents
  • Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  • Easy access for installation and maintenance
  • IP23 as standard
  • Self-excited control system
  • Resist of corruption of oil and acid

Technical data

Model PI 734C

Alternator brand Stamford
Rated Power (kw) 1240
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

DSE7320 controller

Main features:

1.Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation

2. Security password-protected programming levels

3. All parameters use digital modulation, with higher reliability and stability

4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed

5. Power supply range is wide, accommodating to different starting battery voltage environment

6. Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
