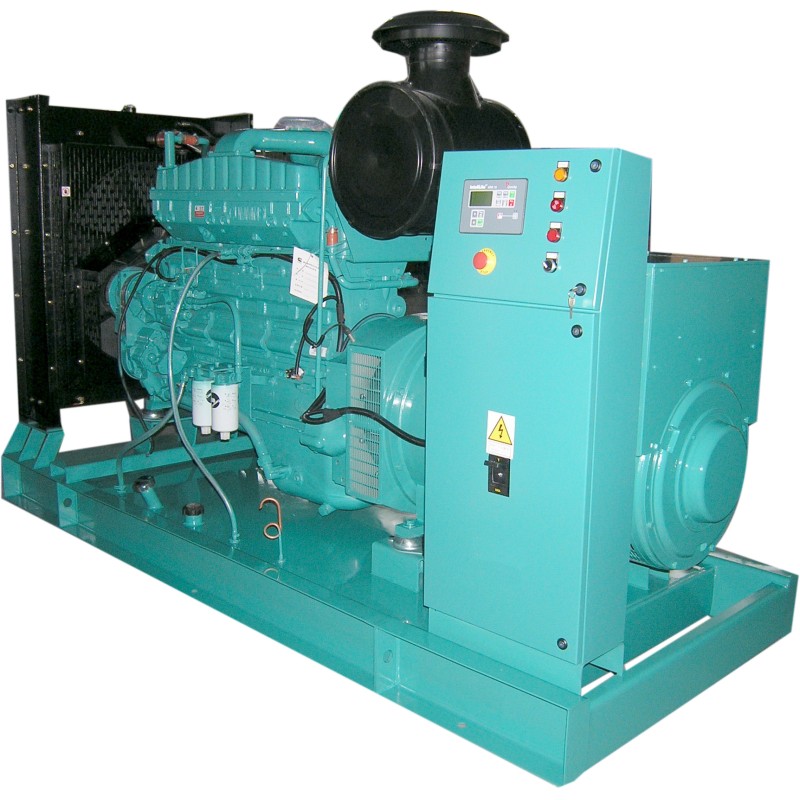

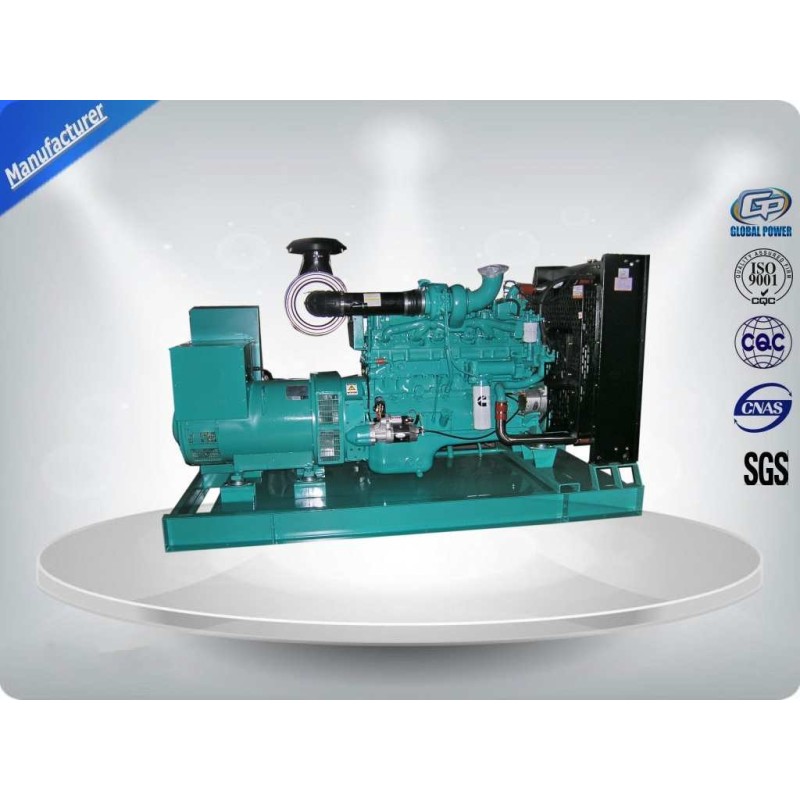

60Hz 200kw 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23
60Hz 200kw 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23
60Hz 200kw 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23
60Hz 200kw 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23
Specifications
Brand Name :
Global Power
Model Number :
GP1 C200
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
Plastic Foam or Plywood Case
Engine Model :
Cummins, 6LTAA8.9-G3
Alternator brand :
Stamford, UCDI274K
Frequency :
60Hz
Rated Voltage: :
440/270
Prime Power (kw/kva) :
200/250
Standby Power(kw/kva) :
220/275
Rated Current (A) :
328
Running Noise db(A)/7m(Silent type) :
115(Open type)
Control Module Brand :
SmartGen, Deepsea, ComAp
Battery capacity (V-Ah) :
12V 100Ah
Voltage Recovery Time :
≤1S
Description

60Hz 200kw / 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23

Model: GP1 C200

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door
60Hz 200kw 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23

Generator data

Diesel Generator GP1 C200 (three phase)

Prime Power (kw/kva) 200/250
Standby Power (kw/kva) 220/275
Rated Voltage (V) 440/254
Voltage Recovery Time ≤1S
Rated Current (A) 328
Rated Frequency (Hz) 60
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Open type) 115
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm) 2450*950*1500
Open Type-Weight (kg) 1570
Soundproof Type- Dimension (L*W*H) (mm) 3500*1300*1800
Soundproof Type-Weight (kg) 2600
Fuel Tank Capacity(L) 350
Continuous Running Time(hr.) 8

Engine specifications


Engine
Main features:

  1. Six-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance


Technical data
Model 6LTAA8.9-G2

Engine brand Cummins
Output Power (kw) 235
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 16.0:1
Displacement (L) 8.9
Bore X Stroke (mm) 114*145
Engine Speed (r/min) 1800
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant Capacity (L) 41
Fuel Consump. (g/kw·h) 197
Oil Capacity (L) 27.6

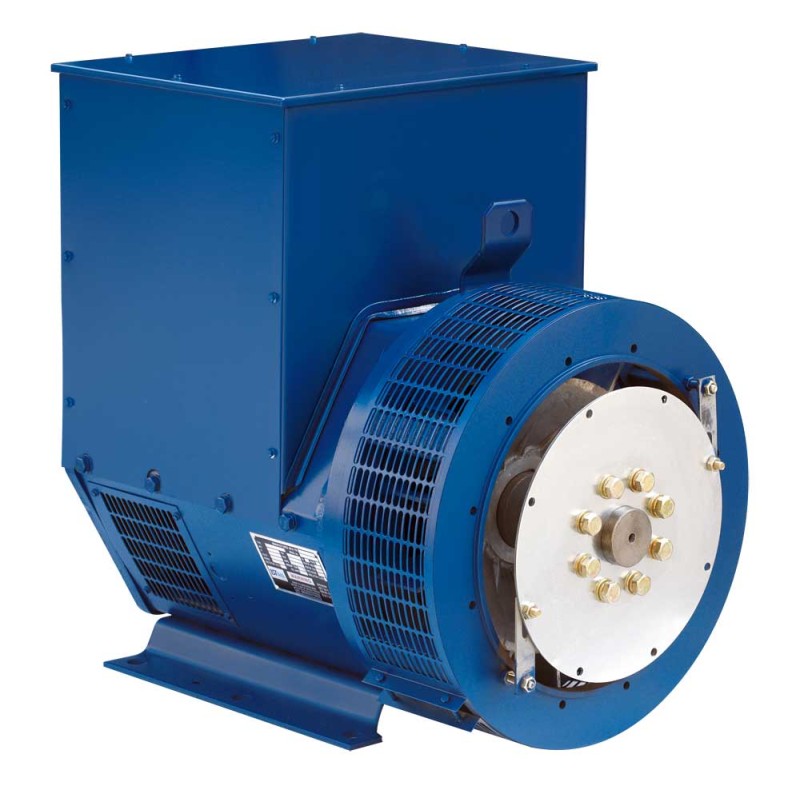

Alternator specifications

60Hz 200kw 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23
Alternator
Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid


Technical data
Model UCI274H

Alternator brand Stamford
Rated Power (kw) 196
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1800
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%


Control system

60Hz 200kw 250kva Open Cummins Diesel Generator Set With Stamford Water Cooled IP23
HGM6110 controller

Main features:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
