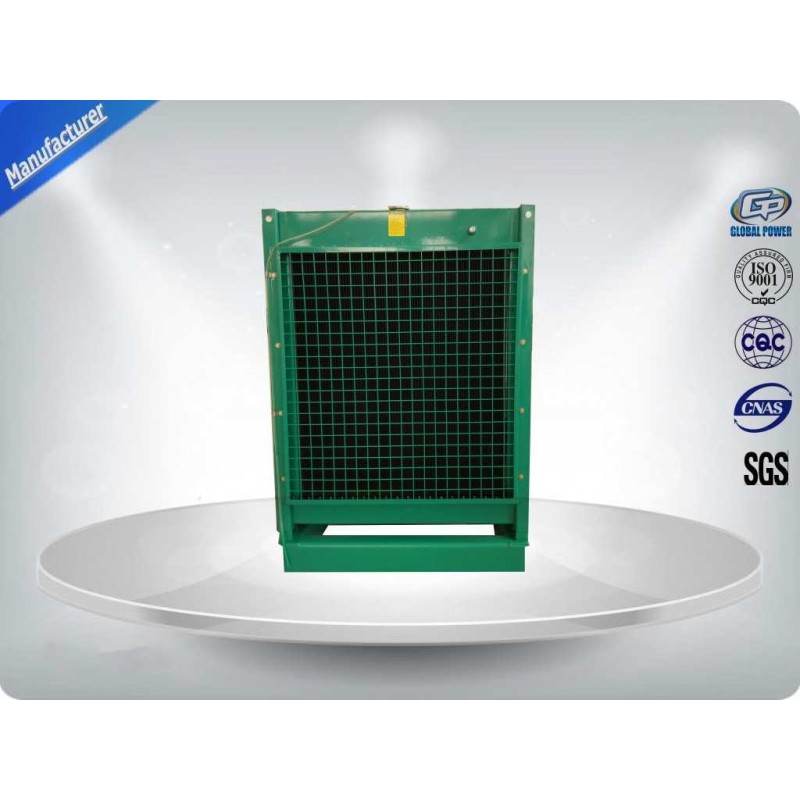

315kw 394kva 60Hz Cummins Diesel Engine Generator Set Water Cooled With Stamford Alternator
315kw 394kva 60Hz Cummins Diesel Engine Generator Set Water Cooled With Stamford Alternator
315kw 394kva 60Hz Cummins Diesel Engine Generator Set Water Cooled With Stamford Alternator
315kw 394kva 60Hz Cummins Diesel Engine Generator Set Water Cooled With Stamford Alternator
Specifications
Brand Name :
Global Power
Model Number :
GP1 C315
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
Plastic Foam or Plywood Case
Engine Model :
Cummins, NTA855-G3
Alternator brand :
Stamford, HCI444ES
Frequency :
60Hz
Rated Voltage: :
440/270
Prime Power (kw/kva) :
315/394
Standby Power(kw/kva) :
350/438
Rated Current (A) :
517
Running Noise db(A)/7m(Silent type) :
75(silent type)
Control Module Brand :
SmartGen, Deepsea, ComAp
Battery capacity (V-Ah) :
12V 100Ah*2
Voltage Recovery Time :
≤1S
Description

Model: GP1 C315

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door

Generator data

Diesel Generator GP1 C315 (three phase)

Prime Power (kw/kva) 315/394
Standby Power (kw/kva) 350/438
Rated Voltage (V) 440/254
Voltage Recovery Time ≤1S
Rated Current (A) 517
Rated Frequency (Hz) 60
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Open type) 115
Battery capacity (V-Ah) 12V 100Ah*2
Open Type-Dimension (L*W*H) (mm) 3035*1000*1750
Open Type-Weight (kg) 3035
Soundproof Type- Dimension (L*W*H) (mm) 4100*1400*2100
Soundproof Type-Weight (kg) 4450
Fuel Tank Capacity(L) 600
Continuous Running Time(hr.) 8

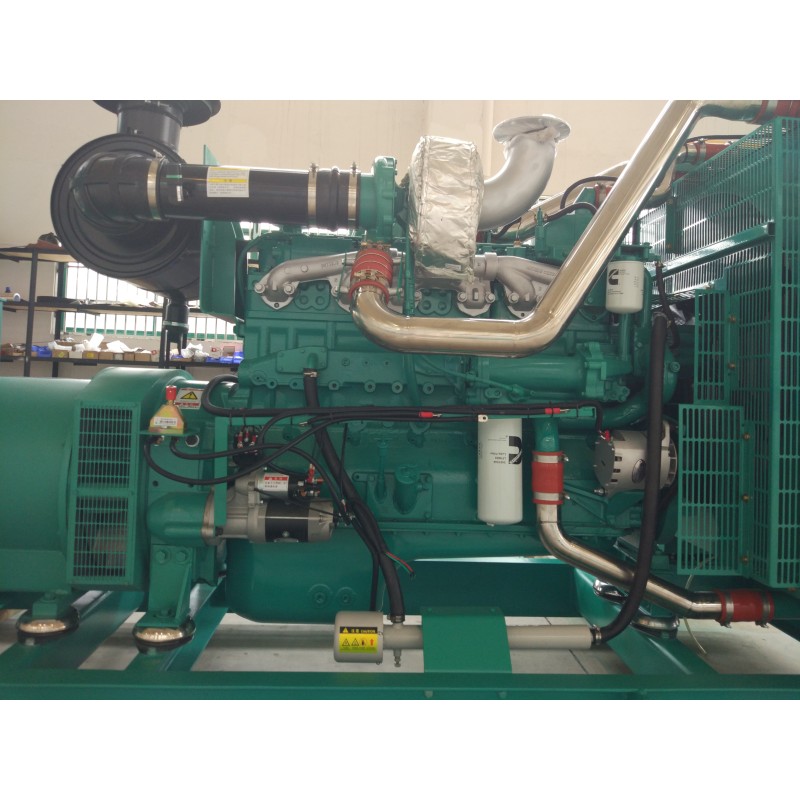

Engine specifications

Engine
Main features:

  1. Six-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance

315kw 394kva 60Hz Cummins Diesel Engine Generator Set Water Cooled With Stamford Alternator
Technical data
Model NTA855-G3

Engine brand Cummins
Output Power (kw) 358
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 14.0:1
Displacement (L) 14
Bore X Stroke (mm) 140*152
Engine Speed (r/min) 1800
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant Capacity (L) 49.2
Fuel Consump. (g/kw·h) 207
Oil Capacity (L) 36.7

Alternator specifications

Alternator
Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid

315kw 394kva 60Hz Cummins Diesel Engine Generator Set Water Cooled With Stamford Alternator
Technical data
Model HCI444ES

Alternator brand Stamford
Rated Power (kw) 315
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1800
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%


Control system

315kw 394kva 60Hz Cummins Diesel Engine Generator Set Water Cooled With Stamford Alternator
HGM6110 controller

Main features:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
