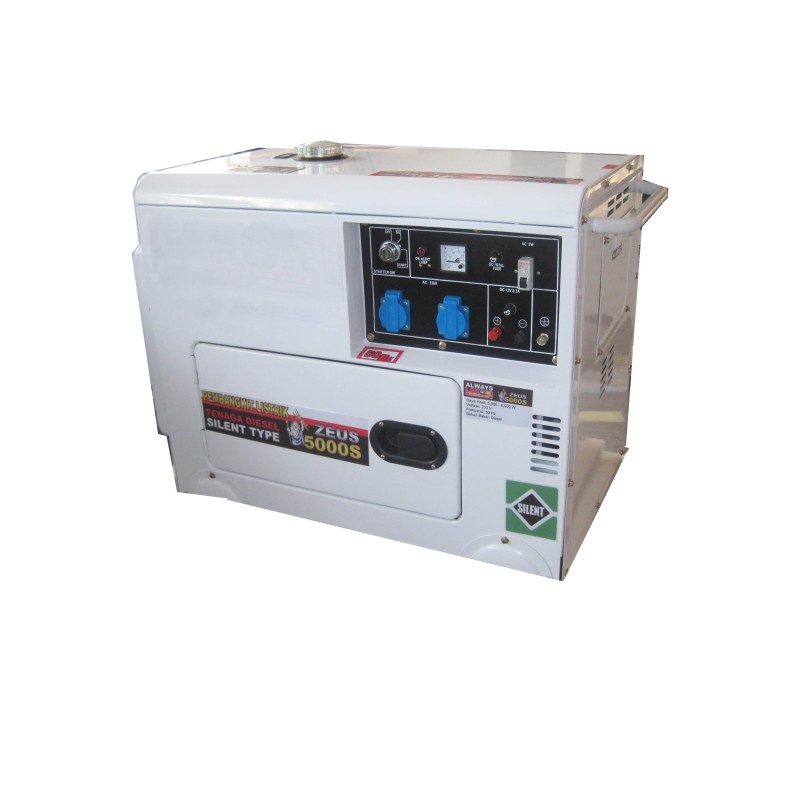

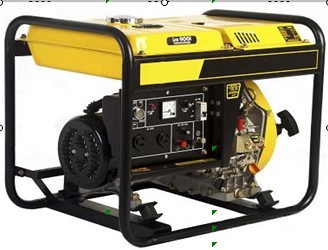

50Hz 7.5kva Silent Open Portable Diesel Generator 8.25kva Air Cooled Single Phase
50Hz 7.5kva Silent Open Portable Diesel Generator 8.25kva Air Cooled Single Phase
50Hz 7.5kva Silent Open Portable Diesel Generator 8.25kva Air Cooled Single Phase
50Hz 7.5kva Silent Open Portable Diesel Generator 8.25kva Air Cooled Single Phase
Specifications
Engine Model :
GP192FE
Frequency :
50Hz
Rated Voltage: :
230
Prime Power (kva) :
7.5
Rated Current (A) :
32.4
Voltage Recovery Time :
≤1S
Dimension (L *W*H) :
945*565*790
Dry weight（kg） :
165
Max Output(kVA) :
8.25
Brand Name :
Global Power
Model Number :
GPD8000T
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
Plastic Foam or Plywood Case
Description

GP D8000T

Ratings

Model GP D8000T
Rated frequency Hz 50
Rated power KVA 7.45
Max. power KVA 8.25
Overall dimension mm 945*565*790
Weight Kg 165

50Hz 7.5kva Silent Open Portable Diesel Generator 8.25kva Air Cooled Single Phase

Features and Benefits

1. Powerful Lees four-stroke engine

Lees commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.

2. Reliable and stable output

Applied the improved AVR (automatic voltage regulator), which not only can smooth the output but also provide reasonable protection against the overload of the whole set

3. Competitive economic operation

The high efficiency combustion system is designed to reduce the consumption and operation cost

4. Qualified breaker, electronic elements

Ensuring high quality of generator, protect the generator from being overload

5. Compact design

Provides unparalleled power to weight ratio

6. Large steel fuel tank

For durability and extended running time

7. Cover plate

Smart-designed cover plate effectively protects the electric elements inside

8. Fuel pump

High quality and precise fuel pump, for stable running and longer useful time

9. DC Charging

Charge the battery conveniently

10. Hardened steel tube cradle

For added durability and strength, easy transport and compact storage

11. Copper alternator

100% copper alternator ensures reliable and stable running

12. Fine craftwork

Good painting and fine craftwork, use 1.7mm thickness steel ensuring high strength

13. Wheels optional

For easily transport, now you can take the power wherever you need

50Hz 7.5kva Silent Open Portable Diesel Generator 8.25kva Air Cooled Single Phase

Generator

Frequency(Hz) 50
Rated Output(kVA) 7.45
Max Output(kVA) 8.25
Voltage(V) 230
Current(A) 32.4
Configuration Single phase
Factor 0.8-1.0
Insulation Class B
Pole 2
Phase 1
Excitation Mode Self-excitation & constant voltage(AVR)
Panel type General panel
output socket 2pc single phase socket
Connection Pole Without
DC12V Output 12V 8.3A
Dimension (L *W*H) 945*565*790
Dry weight(kg) 165
Working assorting weight (Kg) 172
Noise level(7m)dB(A) 72
Frame type Silent frame

Engine

Model GP 192FE
Engine type Single cylinder,4-stroke,forced air-cooled
Displacement(mL) 498
Cylinder NO.-bore×stroke (mm) 1-92×75
Rated power(kW) 7.5
Rated rotation speed(r/min) 3000
Fuel consumption ( g/kW.h) 275
Capacity of Fuel Tank (L) 16
Starting System Electric starter
Compression ratio 19:1
