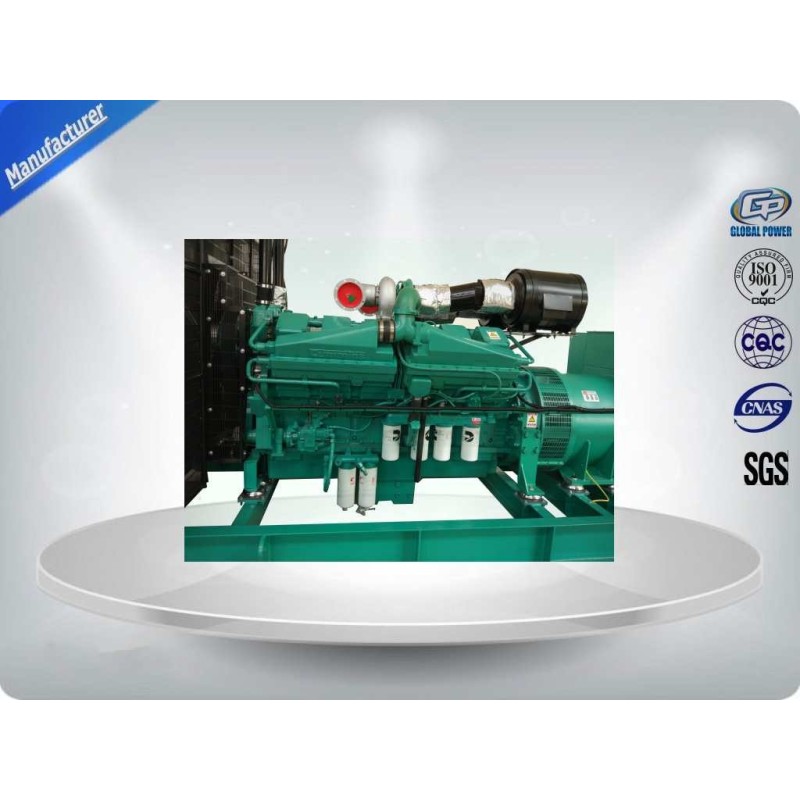

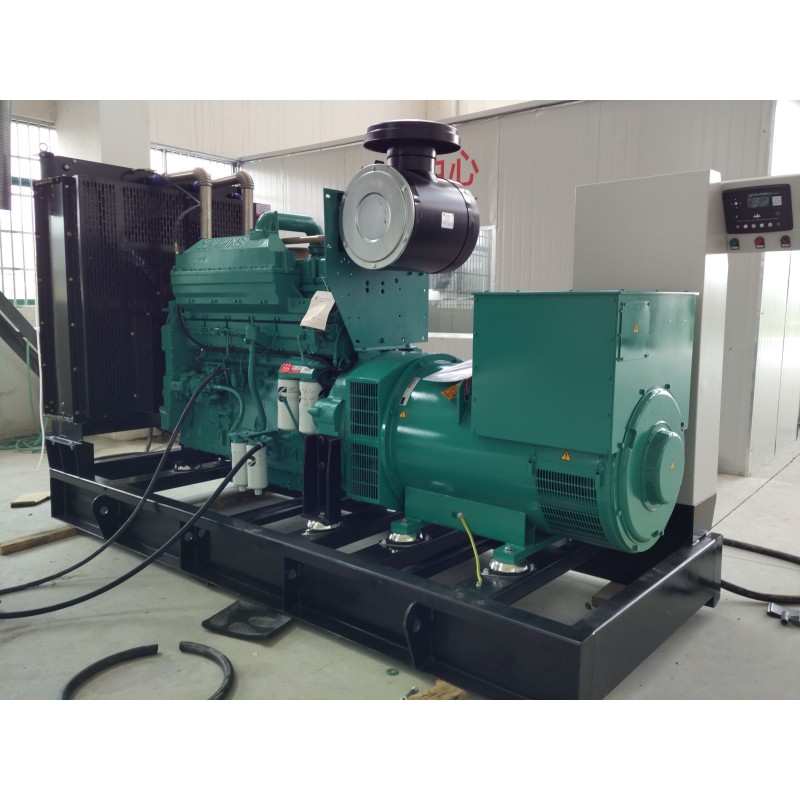

450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator
450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator
450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator
450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator
Specifications
Brand Name :
Global Power
Model Number :
GP C450
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
Plastic Foam or Plywood Case
Engine Model :
Cummins, KTAA19-G5
Alternator brand :
Stamford, HCI544D
Frequency :
50Hz
Rated Voltage: :
400/230
Prime Power (kw/kva) :
450/563
Running Noise db(A) :
115(open type)
Continuous Running Time(hr.) :
8
Standby Power(kw/kva) :
495/619
Control Module Brand :
SmartGen, Deepsea, ComAp
Battery capacity (V-Ah) :
12V 100Ah*2
Description


Model: GPC450

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator
Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door
450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator

Generator data

Diesel Generator GPC450 (three phase)

Prime Power (kw/kva) 450/563
Standby Power (kw/kva) 495/619
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 811
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah*2
Open Type-Dimension (L*W*H) (mm) 3570*1550*2160
Open Type-Weight (kg) 4050
Soundproof Type- Dimension (L*W*H) (mm) 4600*1800*2530
Soundproof Type-Weight (kg) 5850
Fuel Tank Capacity(L) 800
Continuous Running Time(hr.) 8


Engine specifications

450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator
Engine
Main features:

  1. Six-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance


Technical data
Model KTAA19-G5

Engine brand Cummins
Output Power (kw) 470
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 13.5:1
Displacement (L) 19
Bore X Stroke (mm) 159*159
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 96
Fuel Consump. (g/kw·h) 204.4
Oil Capacity (L) 50

Alternator specifications

Alternator
Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid


Technical data
Model HCI544D

Alternator brand Stamford
Rated Power (kw) 440
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%


Control system


HGM6110 controller
450kw 563kva 50Hz Cummins Diesel Generator Set Open IP23 Water Cooled Diesel Generator

Main features:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation


Precision measure and display of: Protection:

  • Generator voltage
  • Generator current
  • Generator frequency
  • Generator active power (kW)
  • Generator inactive power (kW)
  • Generator apparent power (kVA)
  • Generator power factor
  • Generator starts count
  • Generator hour count
  • Cumulate electric energy (kWh)
  • Generator temperature
  • Generator pressure
  • Start battery voltage


  • Emergency stop
  • High water temperature
  • Low oil pressure
  • Over speed
  • Under speed
  • Loss of speed signal
  • Generator over frequency
  • Generator under frequency
  • Generator over voltage
  • Generator under voltage
  • Generator over current
  • Fail to start
  • Auxiliary inputs
