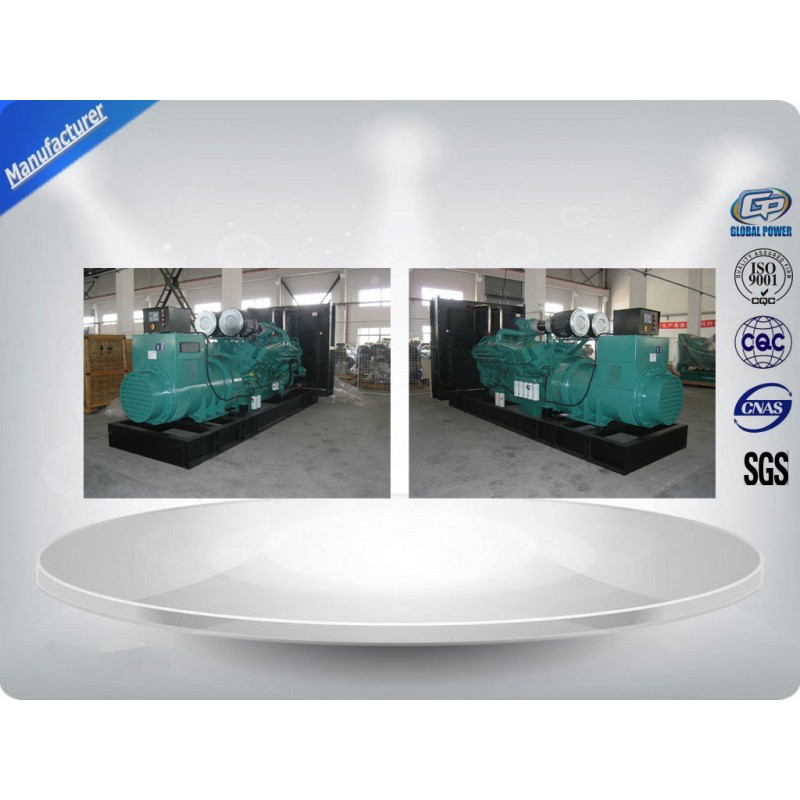

Soundproof Cummins Generator Set 800KW , 12 Cylinder Diesel Generators For Home Use
Soundproof Cummins Generator Set 800KW , 12 Cylinder Diesel Generators For Home Use
Specifications
Brand Name :
Cummins
Model Number :
GP C800
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2500 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Cummins
Engine Model :
KTA38-G5/880
Rated Voltage (V) :
400 / 230
Speed Governing :
Electronic
Rated Current (A) :
1442
Displacement :
38L
Cylinder :
12
Description

Cummins Diesel Generator 800KW (50HZ/400V)

Technical Specifications :

Genset

Prime Power (kw/kva)

800/1000

Standby Power (kw/kva)

800/1100

Voltage Recovery Time

≤1S

Rated Current (A)

1443

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Fuel Tank Capacity(L)

/

Engine

Engine brand

Cummins

Output Power (kw)

880

Cylinder No. & Config.

12,in “V”

Combustion System

direct injection

Compression Ratio

14.5:1

Displacement (L)

50.3

Bore X Stroke (mm)

159*159

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

Generator soundproof/Silent and canopy

1) Fully guarded cooling fan and battery charging alternator

2) Fuel fill and battery access via lockable access doors

3) Emergency stop button on canopy exterior

4) Lube oil drain and radiator drain to exterior

5) Control panel viewing window

6) Lifting points on base frame

7) Excellent ventilation

8) Black finish stainless steel locks and hinges

9) Zinc plated or stainless steel fasteners

10) Body made from steel components treated with polyester powder coating

11) Two large doors on either side

12 Radiator fill access plate

Application: home,buliding,hospital,bank and so on.

Our advantages :
1. Inspection

Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.


2. Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
