100kva Electric Generator Set Slient Type Excellent Ventilation
100kva Electric Generator Set Slient Type Excellent Ventilation
100kva Electric Generator Set Slient Type Excellent Ventilation
100kva Electric Generator Set Slient Type Excellent Ventilation
Specifications
Brand Name :
Perkins
Model Number :
GP P80
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Controller :
DeepSea , Comap , Smartgen.
Engine Model :
1104C-44TAG2
Engine Brand :
Perkins
Type :
silent / open
Alternator :
Stamford / Meecalt / copy Stamford
Engine Speed (r/min) :
1500
Soundproof Type- Dimension (L*W*H) (mm) :
2700*1150*1700
Open Type-Dimension (L*W*H) (mm) :
1900*720*1150
Description

100kva Stamford Alternator Perkins Diesel Generator Set Open or Slient type

Technical Specifications :

Genset

Prime Power (kw/kva)

80 / 100

Standby Power (kw/kva)

88 / 110

Voltage Recovery Time

≤1S

Rated Current (A)

144

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Fuel Tank Capacity(L)

180

Engine

Engine brand

Perkins

Output Power (kw)

103

Cylinder No. & Config.

4, in-line

Combustion System

direct injection

Compression Ratio

18.2:1

Displacement (L)

4.41

Bore X Stroke (mm)

105*127

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

12V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

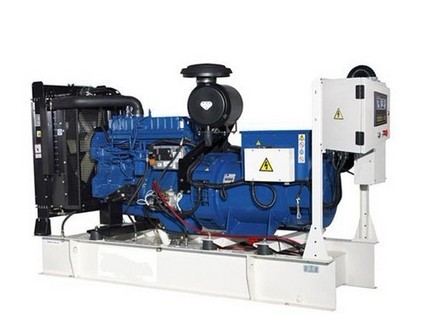

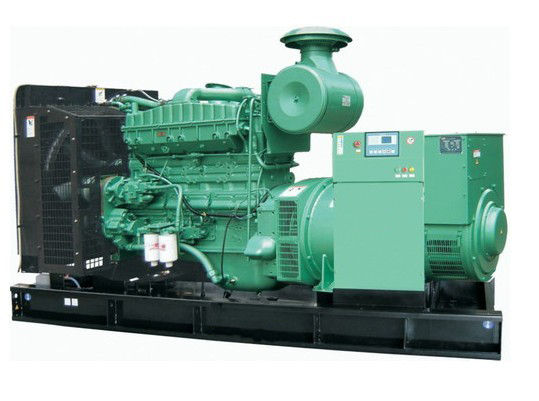

Our Picture :

100kva Electric Generator Set Slient Type Excellent Ventilation100kva Electric Generator Set Slient Type Excellent Ventilation

Generator soundproof/Silent and canopy

  • Excellent ventilation
  • Black finish stainless steel locks and hinges
  • Zinc plated or stainless steel fasteners
  • Body made from steel components treated with polyester powder coating
  • Two large doors on either side
  • Radiator fill access plate
  • Fully guarded cooling fan and battery charging alternator
  • Fuel fill and battery access via lockable access doors
  • Emergency stop button on canopy exterior
  • Lube oil drain and radiator drain to exterior
  • Control panel viewing window
  • Lifting points on base frame

Our Service:

  • If you are interested in our products we sincerely invite you to take a visit of our factory when you
  • are in China. We can drive to pick you up and visit our factory.
  • Suggest the best choice or referential suggestion based on customers’ information. Answer all
  • questions about the product from customer.
  • Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

  • Guarantee Period: One year or 1000 running hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent by air express.
  • 24 hours service hotline is available for customers.
