Electric Motor Generator Set Industrial Generator Set 200kw
Electric Motor Generator Set Industrial Generator Set 200kw
Electric Motor Generator Set Industrial Generator Set 200kw
Electric Motor Generator Set Industrial Generator Set 200kw
Specifications
Engine Brand: :
Perkins
Output Power (kw) :
239
Alternator Brand: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
1306C-E87TAG6
Frequency (Hz) :
50
Generator Type: :
open / slient
Control Module Brand :
Comap,SmartGen, DeepSea
Soundproof Type- Dimension (L*W*H) (mm) :
3400*1400*2150
Package :
Plastic foam or plywood case
Fuel Tank Capacity(L) :
600
Brand Name :
Perkins
Model Number :
GP P200
Certification :
OEM / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Open Three Phase Industrial Generator Set With Stamford Alternator 200kw Perkins

Basic Specification:

1. Engine brand, Perkins.

2. Alternator brand, Meccalte, Stanform, GP...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12.50/60hz

13. Atomatic alarm system

14. Insulation, class H

Diesel Generator GPP200 (three phase)

Prime Power (kw/kva)

200/250

Standby Power (kw/kva)

220/275

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

361

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Open Type-Dimension (L*W*H) (mm)

2600*900*1570

Open Type-Weight (kg)

1950

Soundproof Type- Dimension (L*W*H) (mm)

3400*1400*2150

Soundproof Type-Weight (kg)

4750

Fuel Tank Capacity(L)

600

Continuous Running Time(hr.)

8

Engine specifications:


1.Main features:

  1. Six-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance

2.Technical data

Model 1306C-E87TAG6

Engine brand

Perkins

Output Power (kw)

239

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

16.9:1

Displacement (L)

8.7

Bore X Stroke (mm)

116.6*135.9

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

37.2

Fuel Consump. (g/kw·h)

188

Oil Capacity (L)

26.5

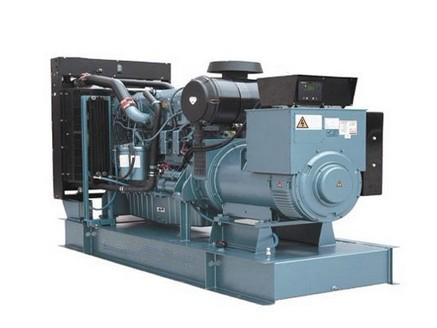

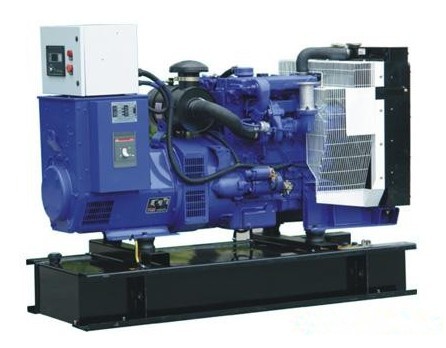

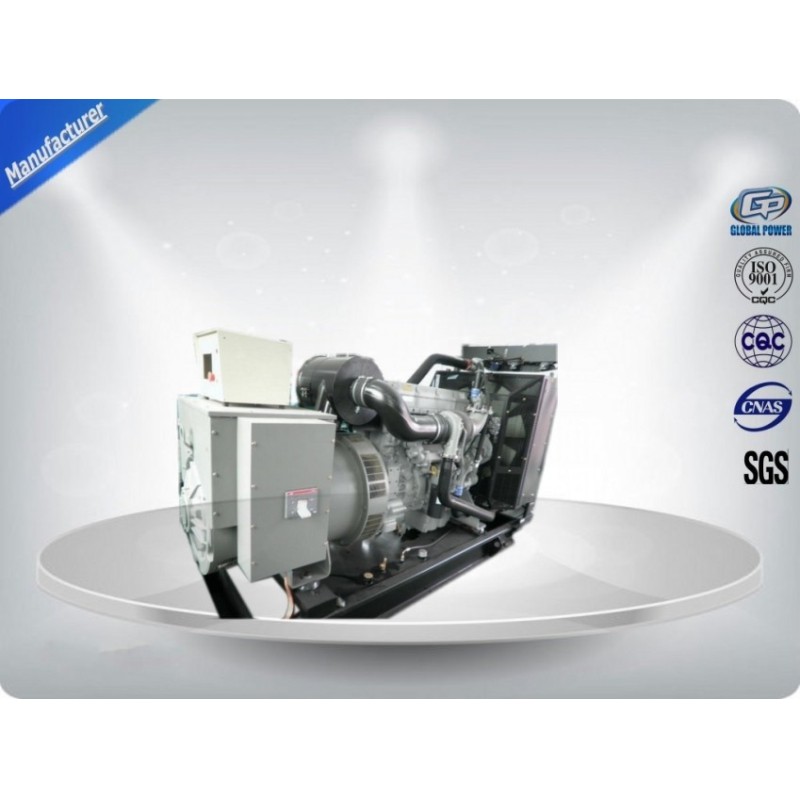

Product Picture:

Electric Motor Generator Set Industrial Generator Set 200kwElectric Motor Generator Set Industrial Generator Set 200kw

Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door
