10KVA~1250KVA Diesel Generator Set Cummins Water - Cooling CE / ISO
10KVA~1250KVA Diesel Generator Set Cummins Water - Cooling CE / ISO
10KVA~1250KVA Diesel Generator Set Cummins Water - Cooling CE / ISO
10KVA~1250KVA Diesel Generator Set Cummins Water - Cooling CE / ISO
Specifications
Brand Name :
Cummins
Model Number :
GP C1000
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Cummins
Engine Model :
KTA50-G3/1087
Output Power (kw) :
1087
Rated Voltage (V) :
400 / 230
Speed Governing :
Electronic
Rated Current (A) :
1801
Cooling system :
Water-cooled
Package :
Plastic Foam Packing or Plywood Case
Color :
Customized
Description

10KVA~1250KVA Diesel generator set Cummins Water - Cooling Diesel Generator Set

Technical Specifications :

Genset

Prime Power (kw/kva)

1000 /1250

Standby Power (kw/kva)

1100/1375

Voltage Recovery Time

≤1S

Rated Current (A)

1801

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Fuel Tank Capacity(L)

/

Engine

Engine brand

Cummins

Output Power (kw)

1087

Cylinder No. & Config.

16,in “V”

Combustion System

direct injection

Compression Ratio

13.9:1

Displacement (L)

50.3

Bore X Stroke (mm)

159*159

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

Generator soundproof/Silent and canopy

1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame

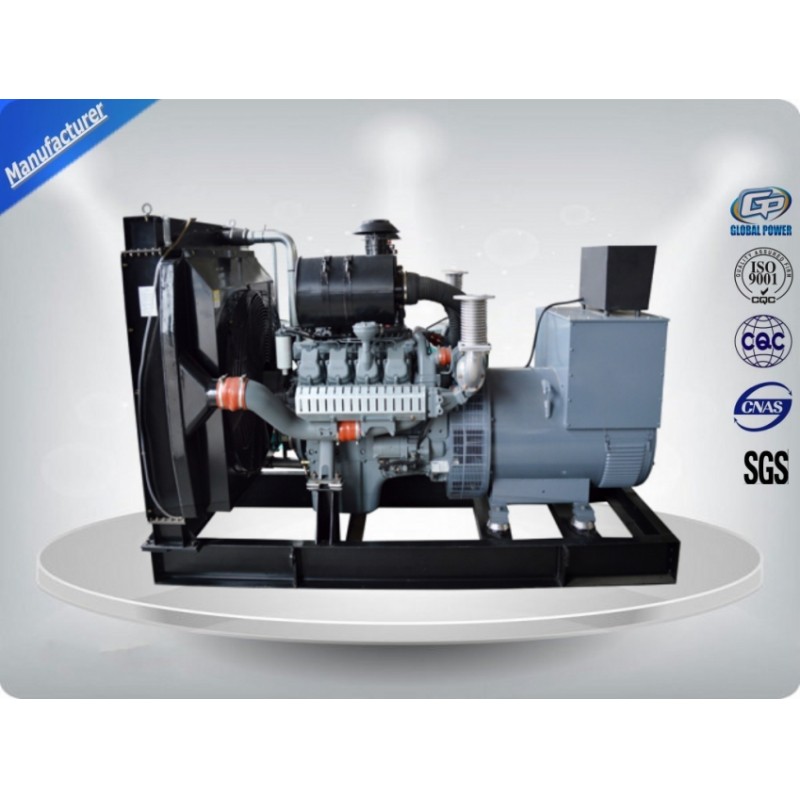

Our Picture :
10KVA~1250KVA Diesel Generator Set Cummins Water - Cooling CE / ISO

Our advantages :
1.Inspection

1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.


2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Company Profile:
Wuxi Global Power Technology Co., Ltd is located in national Hi-tech Nanchang district, Wuxi city, Jiangsu, China, which is famous as the ‘source of power’. Our company is a key-enterprise of being engaged in research, development, manufacture and exportation of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
We mainly produced “Global Power” brand three-phase brushless synchronous alternators and many kinds of diesel generator sets, such as open generator, silent/soundproof generator, outdoor power plant, containerized gensets, trailer gensets and equipments of construction machinery like mobile light tower, forklift, air-compressor and so on.

10KVA~1250KVA Diesel generator set Cummins Water - Cooling Diesel Generator Set
