Low Fuel Perkins Diesel Power Generator 20kva Rated Electrical Governoring
Low Fuel Perkins Diesel Power Generator 20kva Rated Electrical Governoring
Low Fuel Perkins Diesel Power Generator 20kva Rated Electrical Governoring
Low Fuel Perkins Diesel Power Generator 20kva Rated Electrical Governoring
Specifications
Brand Name :
Global Power
Model Number :
GP P16
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Perkins
Engine Model :
404A-22G
Prime Power :
16/20 kw/kva
Standby Power :
18/23 kw/kva
Alternator :
Stamford / Meecalt / copy Stamford
Rated Voltage (V) :
400/230
Rated Current :
108A
Fuel Tank Capacity :
70 L
Description

Power Generator with Perkins diesel engine, open or soundproof automatic operating

Features and benefits:

  • Tightly structure, excellent design and craft
  • Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  • Self-diagnostic capability simplifies troubleshooting
  • LCD display shows system status and setup information
  • Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  • Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  • Enclosed muffler for added quietness
  • Service and maintenance accessible through easy-latch side service door.


Our Features :
1) Universal design and manufacture.
2) Engineers are familiar with diesel generators powered by Perkins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Technical Specifications :

Prime Power (kw/kva)

16/20

Standby Power (kw/kva)

18/23

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

29

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Open Type-Dimension (L*W*H) (mm)

1500*550*1000

Open Type-Weight (kg)

600

Soundproof Type- Dimension (L*W*H) (mm)

1850*900*1120

Soundproof Type-Weight (kg)

1530

Fuel Tank Capacity(L)

70


Perkins Engine:

Engine brand

Perkins

Output Power (kw)

20

Cylinder No. & Config.

4, in-line

Combustion System

Indirect injection

Compression Ratio

23.3:1

Displacement (L)

2.216

Bore X Stroke (mm)

84*100

Engine Speed (r/min)

1500

Speed Governing

Mechanical

Starting System

12V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

7

Fuel Consump. (g/kw·h)

237

Oil Capacity (L)

10.6



Alternator:

Alternator brand

Meccalte

Rated Power (kw)

16

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Voltage accuracy

≤±1%

Protection Grade

IP23

Telephone Influence Factor

TIF＜50

Harmonic Coefficient

THF＜2%


Control system

Brand: DeepSea,Comap,Smartgen
feature:

  1. Security password-protected programming levels
  2. All parameters use digital modulation, with higher reliability and stability
  3. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  4. Power supply range is wide, accommodating to different starting battery voltage environment
  5. Built-in watch dog can never be dead halt, ensuring smooth program execution
  6. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

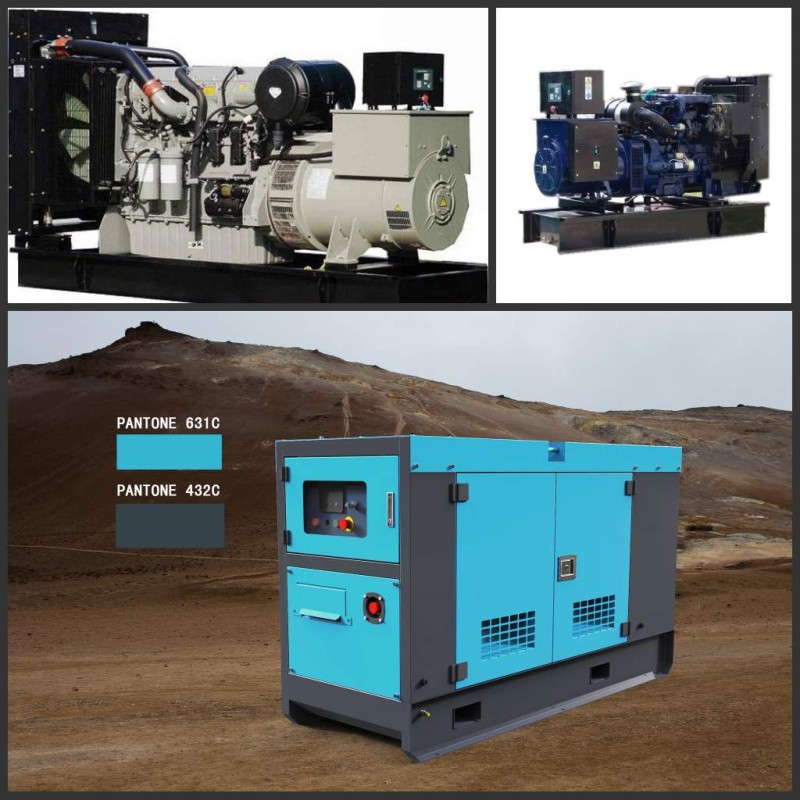

Our Photo:
Low Fuel Perkins Diesel Power Generator 20kva Rated Electrical Governoring


Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.


Our advantages :
1.Inspection

1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
