ISUZU 25kva Diesel Generator Set with high configuration
ISUZU 25kva Diesel Generator Set with high configuration
ISUZU 25kva Diesel Generator Set with high configuration
ISUZU 25kva Diesel Generator Set with high configuration
Specifications
Engine Brand :
ISUZU
Engine Model :
4JB1/24
Prime Power (kw) :
25kVA / 20kW
Standby Power :
27.5kVA / 22kW
Control System :
HGM410
Frequency & Phase :
50Hz & 3PH
Engine Speed (r/min) :
1500
Cooling system :
Water-cooled
Brand Name :
Global Power
Model Number :
4JB1/24
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

ISUZU 25kva Diesel Generator Set with high configuration

Technical Specifications :

Genset

Prime Power (kw/kva)

20/25

Standby Power (kw/kva)

22/27.5

Voltage Recovery Time

≤1S

Engine Brand & Model

ISUZU & 4JB1/24

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Fuel Tank Capacity(L)

/

Engine

Engine brand

ISUZU

Output Power (kw)

24

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

18.2:1

Displacement (L)

2.771

Bore X Stroke (mm)

93 mm / 102 mm

Engine Speed (r/min)

1500

Speed Governing

Mechanical

Cooling Method

Water cooled

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

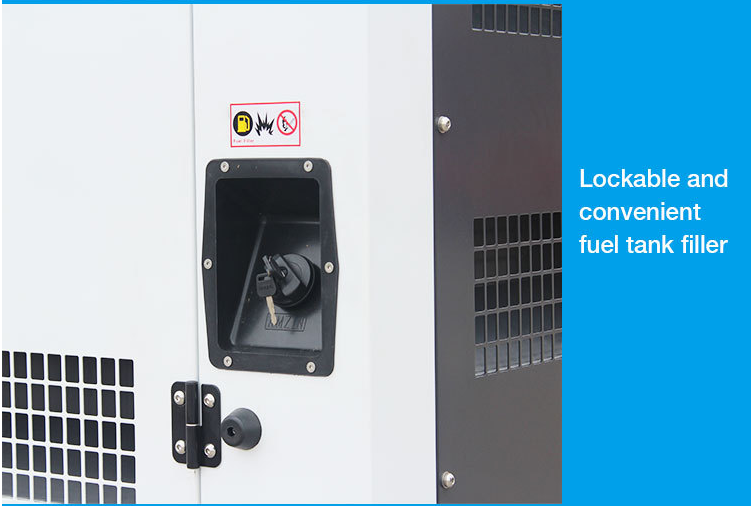

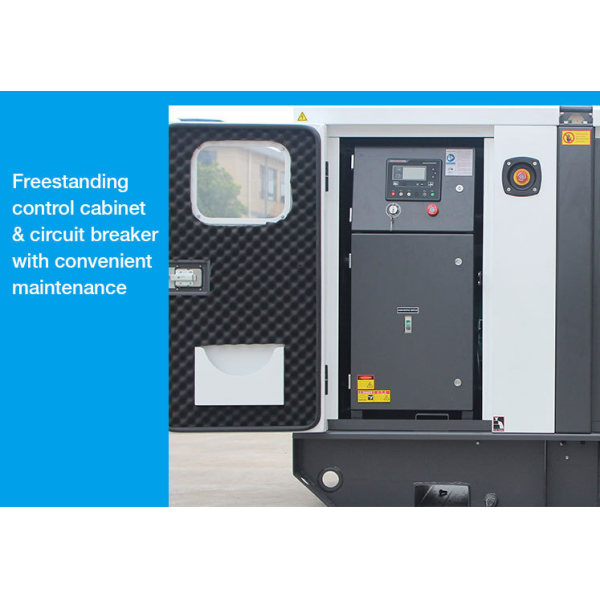

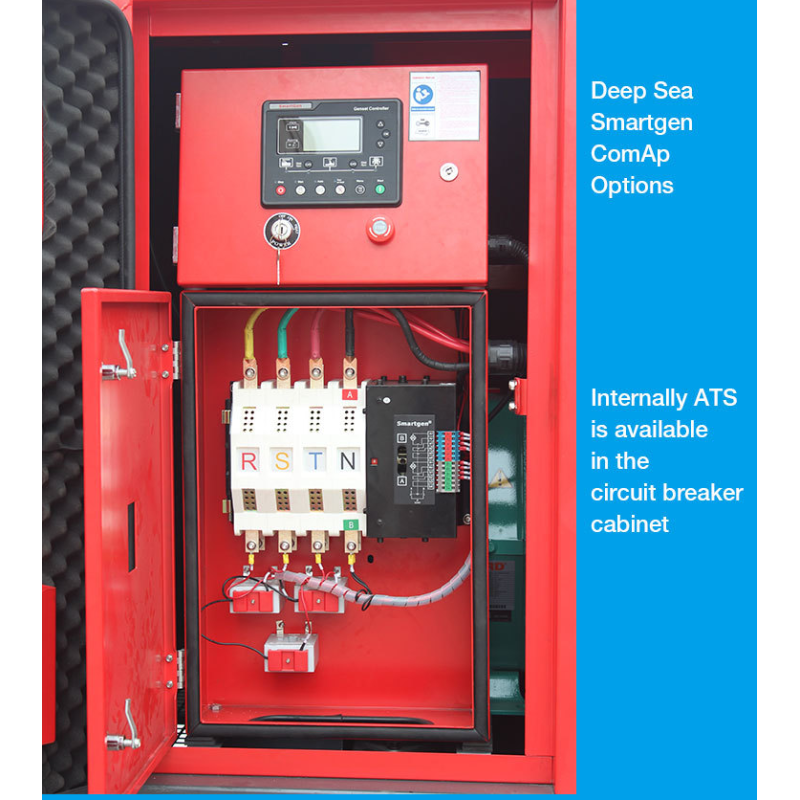

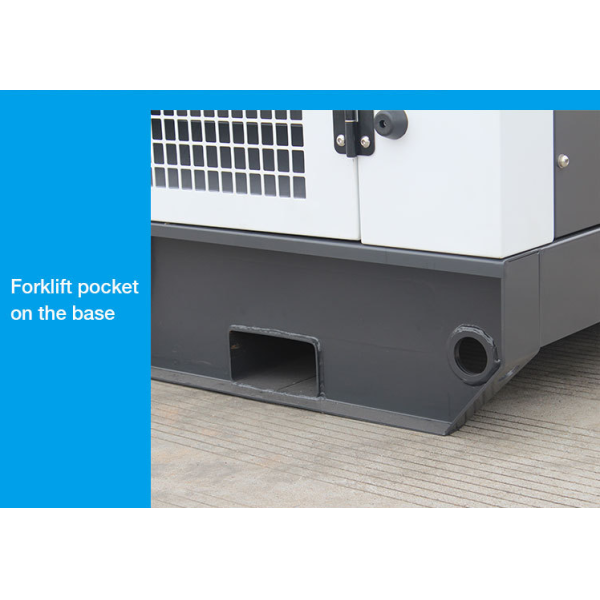

Our Picture :

ISUZU 25kva Diesel Generator Set with high configurationISUZU 25kva Diesel Generator Set with high configurationISUZU 25kva Diesel Generator Set with high configurationISUZU 25kva Diesel Generator Set with high configuration

Competitive service:

1) More than 15 years advanced production experience.

2) As OEM factory, we have obvious competitive in price and leading times.

3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.

5) 1000 hours warranty on the spare parts free provide & technical support in machine life.

Warranty and Maintenance:

1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.

4) 24 hours service hotline is available for customers.

Our service :
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing

2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.

3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent
maintenance.

4)Spare parts supply:
We provide all kinds of spare parts and technical support.

5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
