Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels
Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels
Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels
Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels
Specifications
Engine Model :
6BTAA5.9-G2
Combustion System :
direct injection
Compression Ratio :
16.0:1
Starting System :
24V DC Electric
Rated Current (A) :
1621
Fuel Consump. (g/kw·h) :
208
Oil Capacity (L) :
16.4
Brand Name :
Cummins
Model Number :
GPC100
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPC100 (three phase)

Prime Power (kw/kva) 100/125
Standby Power (kw/kva) 110/138
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 180
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 24V 100Ah
Open Type-Dimension (L*W*H) (mm) 2320*790*1455
Open Type-Weight (kg) 1200
Soundproof Type- Dimension (L*W*H) (mm) 3050*1100*1600
Soundproof Type-Weight (kg) 3000
Fuel Tank Capacity(L) 180
Continuous Running Time(hr.) 8

Engine Technical data

Model 6BTAA5.9-G2

Engine brand Cummins
Output Power (kw) 120
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 16.0:1
Displacement (L) 5.9
Bore X Stroke (mm) 102*120
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 29
Fuel Consump. (g/kw·h) 208
Oil Capacity (L) 16.4

Alternator Technical data

Model UCI274D

Alternator brand Stamford
Rated Power (kw) 96
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

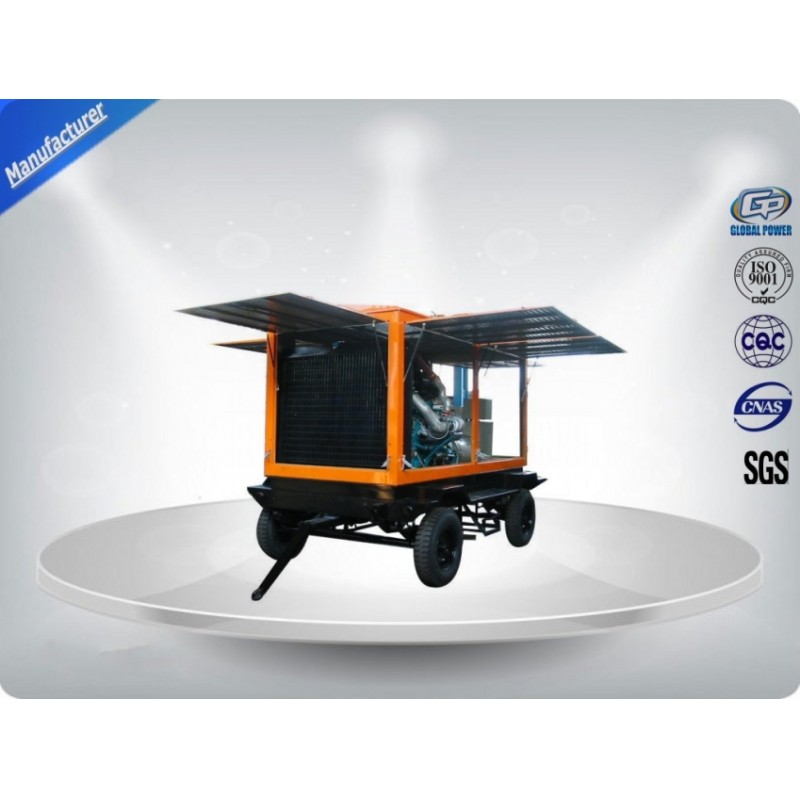

Our Picture :
Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels

Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels

Our advantages :
1.Inspection

1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

Warranty and Maintenance:

1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.

4) 24 hours service hotline is available for customers.
