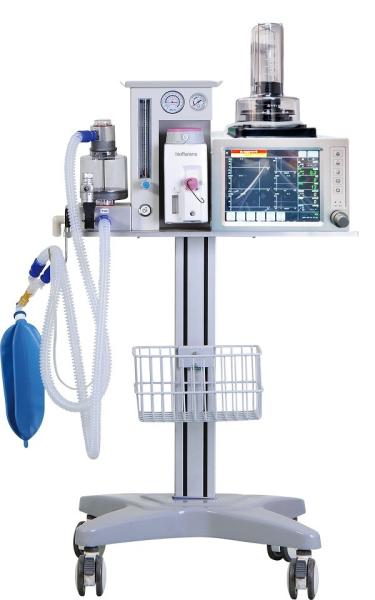

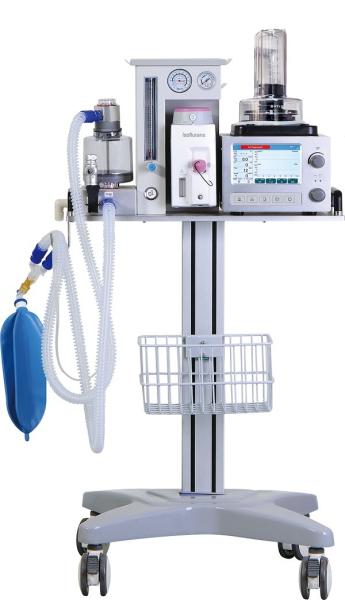

7'' Colorful TFT LCD Touch Screen Vet Clinic Equipment Veterinary Anesthesia System
7'' Colorful TFT LCD Touch Screen Vet Clinic Equipment Veterinary Anesthesia System
7'' Colorful TFT LCD Touch Screen Vet Clinic Equipment Veterinary Anesthesia System
7'' Colorful TFT LCD Touch Screen Vet Clinic Equipment Veterinary Anesthesia System
Specifications
Brand Name :
Golead
Model Number :
DM6B
Certification :
CE, ISO13485
Place of Origin :
China
Product name :
Pet Clinic Veterinary Equipment Anesthesia Machine Veterinary Anesthesia System
Display :
7" Colorful TFT LCD Touch screen
Application :
small and big animal
Vaporizer :
1 for standard
Warranty :
1 Year
Trolley :
standard
Ventilation mode :
IPPV, A/C, PCV, PSV, SIMV, SIGH, MANU
ACGO :
optional
Description

Pet Clinic Veterinary Equipment Anesthesia Machine Veterinary Anesthesia System

Overview

The Veterinary Anesthesia System is a highly regarded and widely used system in veterinary clinics, hospitals, and laboratories around the world. The DM6B model is specifically designed to provide safe, simple, and controllable inhalation anesthesia for animals.

This system offers rapid control of anesthetic depth, making it suitable for a wide range of cases, from simple to complex and from small to large animals such as Dogs, Cats, Rabbits, Mice, Birds, and more. The system's design ensures little resistance to respiration, making it easy to use and ensuring the animal's comfort during the procedure.

With its advanced technology, the Veterinary Anesthesia System provides reliable and accurate results, making it an essential tool for veterinary professionals. It has received positive feedback from clients around the world, cementing its position as a trusted and effective tool for animal anesthesia.

Advantage

7" touch screen with various display areas.
electronic flowmeter to measure fresh gas flow to animals.
The vaporizer has temperature, pressure, flow compensation, and self-lock functions for safety.
Real-time pressure-time and flow-time loop oscillogram are included.
The device can detect ETCO2 and O2 concentration with high precision.
Electronic PEEP allows for precise parameter adjustment.
The screen displays both manual and mechanical ventilation modes.
It is suitable for animals weighing up to 200KG.
Optional features include ETCO2 module and Anesthesia Gas Scavenging System (AGSS).

Specification

SPECIFICATION VALUE
Ventilator parameter range
Flowmeter O2 (0.1～5L/min)
Rapid oxygen supply 25L/min～75L/min
Tidal volume (Vt) 0, 20 mL～ 1500 mL
Frequence 1/min～100/min
I:E 4:1～1:8
Pressure triggering sensitivity(Ptr) -20 cmH2O～20 cmH2O(Based on PEEP)
Flow trigger sensitivity (Ftr) 0.5 L/min ～ 30 L/min
Pressure control (PC) 5 cmH2O ～ 60 cmH2O
SIGH 0(off) 1/100 ～ 5/100
Pressure limit 20 cmH2O ～ 100 cmH2O

Clinical Image
