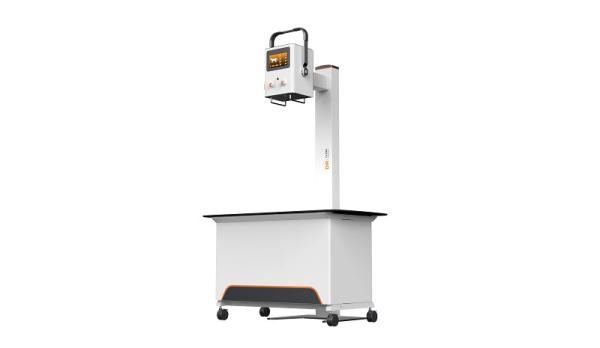

The veterinary digital radiography (DR) device is designed to meet the clinical application needs of veterinarians and integrates multiple patented technologies. With its novel shape, appealing appearance, excellent image chain configuration, and streamlined operation process, this product provides veterinarians with high-quality images and an efficient, intelligent operation experience.
| Generator Specifications | ||
|---|---|---|
| Power | Single phase, 220V/110AC | |
| Maximum power | 8KW | |
| Tube voltage | 40kV - 125kV | |
| Tube current | 3.2mA - 160mA | |
| Loading time | 1~10000ms | |
| Current time product | 0.1~250mAs | |
| Nominal output power | 8KW(100kV,80mA,0.1s) | |
| Instantaneous power | 3KVA | |
| Inverter frequency | 100kHz | |
| X-ray Tube Specifications | |
|---|---|
| Model | KL20(Stationary Anode) |
| Maximum X-ray tube voltage | 125KV |
| Focal spot | 2.0mm |
| Target anode angle | 15° |
| Permanent filtration | 0.65 mm Al@75kV |
| Anode heat content | 30 kJ |
| Weight | 0.3 kg |
| Detector Specifications | |
|---|---|
| Model | SONTU50-4343S-C |
| Scintillator | Csi |
| Image sensor | a-Si(Amorphous Silicon) TFT |
| Active area size | 428×428mm (17"×17") |
| Active area pixel | 3072×3072 Pixels |
| Pixel pitch | 140 μm |
| Spatial resolution | 3.4 Lp/mm |
| A/D Conversion | 16bits |
| DQE | ≥62% |
| Imaging time | 5 S |
| Preview time | 3 S |
| Ingress protection | IPX4 |
Golead TC-100 Veterinary Medical Equipment is designed for veterinary digital radiography systems. The machine is CE certified and manufactured with high-quality materials. With maximum power of 8KW and white color finish, it operates on single phase 220V/110AC power with loading time of 1~10000ms. Ideal for veterinary X-ray applications, equine radiography equipment, and other veterinary X-ray machine requirements.
Veterinary medical equipment is packaged and shipped in accordance with applicable regulations and safety standards. All equipment is inspected for damage before shipping. Appropriate packaging materials are selected based on equipment type and size.
Smaller items are packaged in sturdy cardboard boxes with suitable cushioning material. Larger items are packed in wooden crates with adequate padding to protect from rough handling and weather damage. Foam packaging provides additional protection.
All packages are clearly labeled with sender and recipient information, contents, weight, and dimensions. Special handling instructions are communicated to shipping carriers. Packages are sealed for security, and hazardous materials are marked and handled according to carrier regulations.
