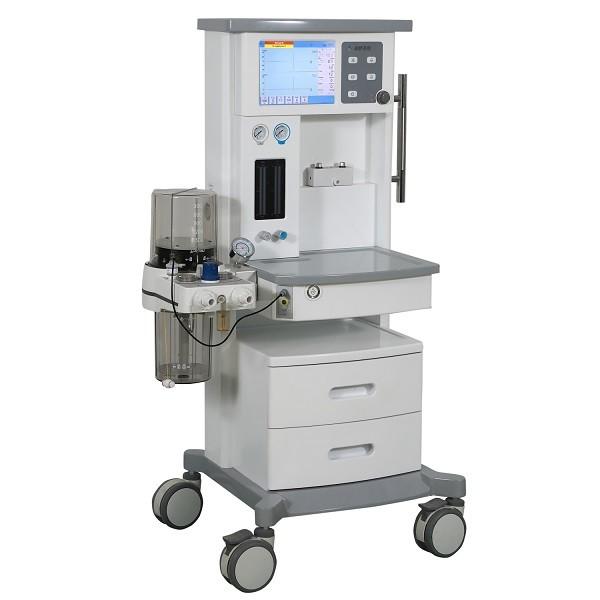

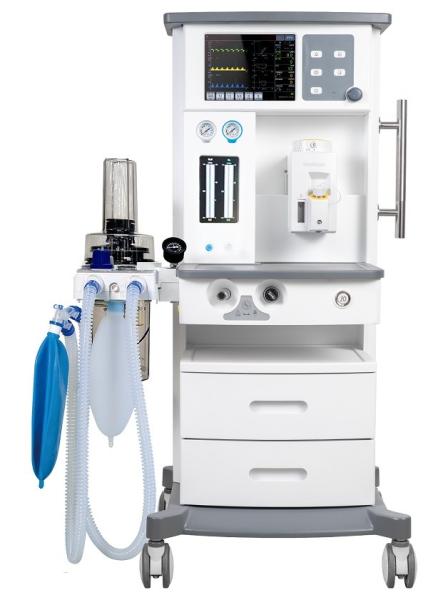

Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
Specifications
Brand Name :
Golead
Model Number :
DM6A
Certification :
CE, ISO13485
Place of Origin :
China
Product name :
Reliable Trolley Veterinary Anesthesia System Pet Clinical Equipment
Display :
10.4"Colorful TFT LCD Touch screen
Application :
small and big animal
Vaporizer :
2 for standard
Warranty :
1 Year
Weight :
60kg
Ventilation mode :
IPPV, A/C, PCV, PSV, SIMV, SIGH, MANU
ACGO :
standard
Description

Reliable Trolley Veterinary Anesthesia System Pet Clinical Equipment

Overview

The DM6A model of Veterinary Anesthesia System is designed to provide safe and controllable inhalation anesthesia for animals, and has received a good reputation from clients around the world. Anesthesia is an essential part of veterinary medicine that allows for pain-free surgery and procedures, and it's important to have a reliable and efficient anesthesia system to ensure the safety and comfort of the animals.

It's also good to know that the Veterinary Anesthesia System can accommodate a wide range of animals, from small to large and from simple to complex cases. This flexibility is crucial in veterinary medicine, as different species and cases require different levels of anesthesia and monitoring. By providing rapid control of anesthetic depth with little resistance to respiration, the Veterinary Anesthesia System can help ensure that animals are kept safe and comfortable throughout their procedures.

Advantage

10.4" touch screen with various display areas.
electronic flowmeter to measure fresh gas flow to animals.

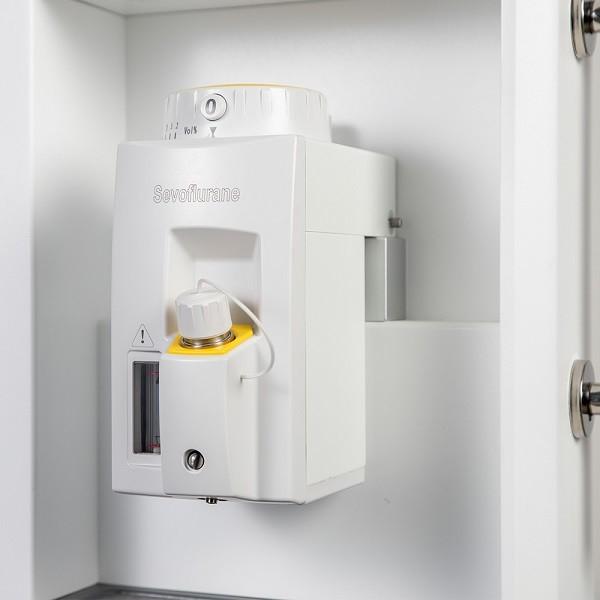

The vaporizer has temperature, pressure, flow compensation, and self-lock functions for safety.
Real-time pressure-time and flow-time loop oscillogram are included.
The device can detect ETCO2 and O2 concentration with high precision.
Electronic PEEP allows for precise parameter adjustment.
The screen displays both manual and mechanical ventilation modes.
It is suitable for animals weighing up to 200KG.
Optional features include ETCO2 module and Anesthesia Gas Scavenging System (AGSS).

Specification

SPECIFICATION VALUE
Ventilator parameter range
Flowmeter O2 (0.1～10L/min)
N2O (0.1～10L/min)
Rapid oxygen supply 25L/min～75L/min
Tidal volume (Vt) 0, 20 mL～ 1500 mL
PEEP 0cmH2O~20cmH2O
Frequence 1/min～100/min
I:E 4:1～1:8
Pressure triggering sensitivity(Ptr) -20 cmH2O～20 cmH2O(Based on PEEP)
Flow trigger sensitivity (Ftr) 0.5 L/min ～ 30 L/min
Pressure control (PC) 5 cmH2O ～ 60 cmH2O
SIGH 0(off) 1/100 ～ 5/100
Pressure limit 20 cmH2O ～ 100 cmH2O
Apnea ventilation OFF,5 s ～ 60 s

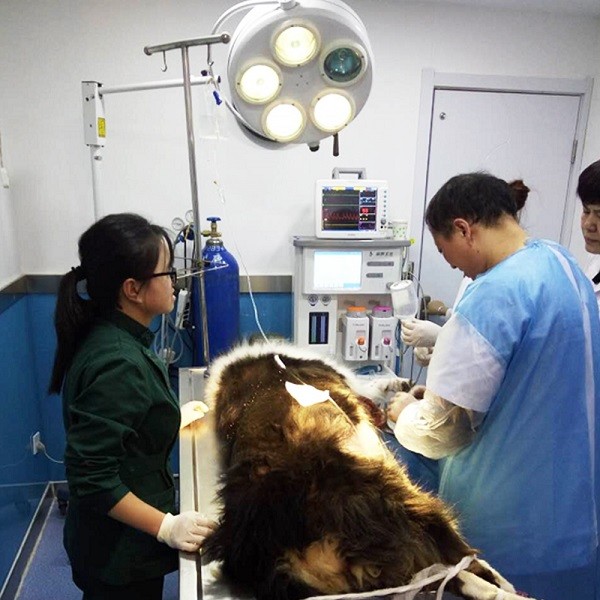

Clinical Image

Reliable Trolley Portable Anesthesia Machine Veterinary Clinic Equipment 60kg
