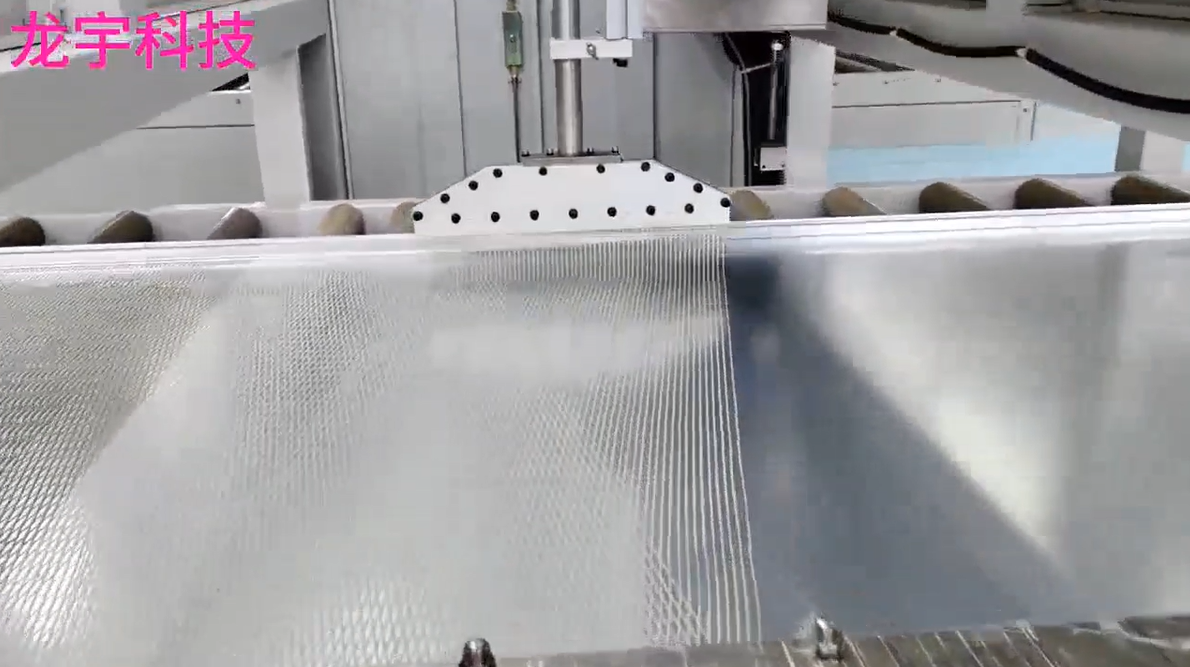

Ceramic Electrode Corona Treatment Equipment For Non Metallic Materials 1-3mm Thick
Ceramic Electrode Corona Treatment Equipment For Non Metallic Materials 1-3mm Thick
Specifications
Brand Name :
LONGYU
Certification :
ISO9001
MOQ :
1Set
Price :
USD:3000-4000
Payment Terms :
T/T
Supply Ability :
10Sets/month
Delivery Time :
10-30 days
Packaging Details :
Standard wooden case
Key Benefit :
Enables Strong Adhesive Bonding
Material :
Ceramic Electrode
Frequency :
High frequency, usually 50-60 kHz
Usage :
Material Surface Treatment
Package :
wooden case
Input Voltage :
AC380V 50 / 60Hz
Scope Of Application :
Materials: PP, pet, PE, PVC, etc
Application :
Plastic films, sheets, and other polymer surfaces
Description

Corona Treatment Equipment for Aluminum and SPC Substrates

Specifications:

Technical Parameter

Specification

Model Number

LY-09-1300

Main Application

Surface activation for improved adhesion

Max. Corona Treatment Width

1300 mm (Optional)

Max. Production Line Speed

12 m/min

Applicable Board Thickness

1 - 3 mm (Non-metallic materials, Optional)

Min. Board Size (for processing)

1-1.3 m (W) × 0.5 m (L)

Target Materials

SPC, Aluminum Plates, various non-metallics

Power Supply

220V 50Hz Single-Phase AC (Optional)

Max. Power Consumption

6 KW

Ceramic Electrode Corona Treatment Equipment For Non Metallic Materials 1-3mm Thick

Notices:

1. Electrical Safety Measures – This unit operates at high voltage. Ensure the system is properly grounded, safety interlock devices are installed, and all operators receive thorough training prior to use.

2. Substrate Suitability – Confirm that the material being processed can withstand corona discharge and fits within the designated thickness and width limits.

3. Routine Maintenance – To avoid arcing and maintain uniform treatment quality, clean the electrode and dielectric roller on a regular schedule.

4. Treatment Timing – The surface activation effect is temporary (limited shelf life). For best results, perform coating, printing, or lamination shortly after the corona treatment step.

Ceramic Electrode Corona Treatment Equipment For Non Metallic Materials 1-3mm Thick

Ceramic Electrode Corona Treatment Equipment For Non Metallic Materials 1-3mm Thick

Ceramic Electrode Corona Treatment Equipment For Non Metallic Materials 1-3mm Thick

Applications:

Critical for surface preparation prior to any bonding or coating process in panel production:

1. Pre‑Laminate Surface Activation – Prepares SPC or aluminum facing sheets before they feed into the LY‑07‑3000 Laminating Machine, ensuring strong adhesive bonding.

2. Digital Printing & Coating – Enhances surface energy for direct digital printing, paint application, or film lamination onto panels.

3. Plastic and Foil Treatment – Improves the adhesion characteristics of various non‑porous, low‑surface‑energy materials.

Ceramic Electrode Corona Treatment Equipment For Non Metallic Materials 1-3mm Thick
