Surface Activation Corona Treater 12m/Min For SPC / Aluminum Sheets
Surface Activation Corona Treater 12m/Min For SPC / Aluminum Sheets
Specifications
Brand Name :
LONGYU
Certification :
ISO9001
MOQ :
1Set
Price :
USD:3000-4000
Payment Terms :
T/T
Supply Ability :
10Sets/month
Delivery Time :
10-30 days
Packaging Details :
Standard wooden case
Process :
Atmospheric Plasma Surface Treatment
Function :
Increases Material Surface Energy
Max. Treatment Width :
1300 mm
Line Speed :
Up to 12 m/min
Target Material :
SPC, Aluminum, Non-metallics
Key Benefit :
Enables Strong Adhesive Bonding
Electrode :
Ceramic electrode, metal electrode
Warranty :
1 year
Description

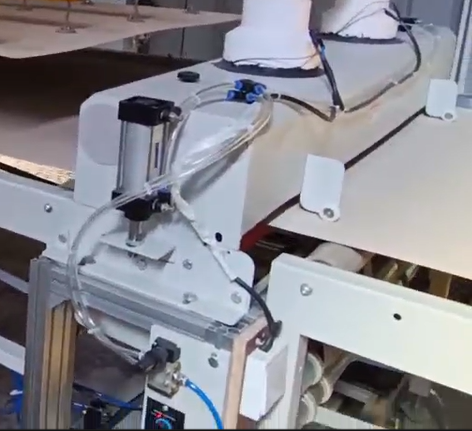

Corona Treater For SPC and Aluminum Panels

Quick Detail:

1. Surface Activation: Uses corona discharge to increase surface energy of materials for better adhesion.

2. Wide Treatment Width: Handles materials up to 1300mm wide for efficient processing.

3. High-Speed Integration: Compatible with production lines running at speeds up to 12m/min.

4. For Composite Panels: Specifically effective for treating SPC (Stone Plastic Composite) and aluminum sheets.

5. Compact Power: High-efficiency 6KW generator ensures consistent treatment performance.

Surface Activation Corona Treater 12m/Min For SPC / Aluminum Sheets

Surface Activation Corona Treater 12m/Min For SPC / Aluminum Sheets

Specifications:

Technical Parameter

Specification

Model Number

LY-09-1300

Main Application

Surface activation for improved adhesion

Max. Corona Treatment Width

1300 mm (Optional)

Max. Production Line Speed

12 m/min

Applicable Board Thickness

1 - 3 mm (Non-metallic materials, Optional)

Min. Board Size (for processing)

1-1.3 m (W) × 0.5 m (L)

Target Materials

SPC, Aluminum Plates, various non-metallics

Power Supply

220V 50Hz Single-Phase AC (Optional)

Max. Power Consumption

6 KW

Surface Activation Corona Treater 12m/Min For SPC / Aluminum Sheets

Notices:

1. Safety First: The equipment generates high voltage. Ensure proper grounding, installation of safety interlocks, and operator training before use.

2. Material Compatibility: Verify that the material to be treated is compatible with corona discharge and falls within the specified thickness and width range.

3. Maintenance: Regular cleaning of the electrode and dielectric roller is essential to maintain consistent treatment quality and prevent arcing.

4. Process Validation: The treatment effect is not permanent (shelf-life effect). It is recommended to perform the coating, printing, or lamination process shortly after treatment for optimal results.

Surface Activation Corona Treater 12m/Min For SPC / Aluminum Sheets
