4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels
4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels
Specifications
Brand Name :
LONGYU
Certification :
ISO9001
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1Set/month
Delivery Time :
45-90 days
Packaging Details :
Standard wooden case
Key Component :
4-layer negative pressure machine
Glue Application :
CNC Glue Spraying, ±5% Accuracy
Adhesive Compatibility :
Single or Two-component (≤25,000 mpa.s)
Production Speed :
Up to 6 m/min
Function :
Sintering and densification of materials under vacuum and high temperature
Powersupply :
Three-phase AC 380V, 50/60Hz
Applicationfields :
Ceramics, metals, composites, electronic materials
Air Supply :
0.6 - 0.8 MPa
Description

Multilayer Vacuum Hot Pressing Production Line LY-15-3000 for RV & Refrigerated Truck Panels, 73M Length, 4 Layers

Specifications

Parameter Category Item Specification
Basic Specs Model LY-15-3000
Line Type Multilayer Vacuum Hot Pressing Production Line
Equipment Length 73 m (Customizable)
Processing Capacity Applicable Board Width 0.5 - 3 m (Customizable)
Applicable Board Length 2 - 13 m
Applicable Board Thickness 1 - 100 mm
Max. Production Line Speed 6 m/min
Glue Spraying System Work Coating Amount 500 - 4000 g/min
Flow Accuracy ≤ ±5%
Glue Nozzle Hole Pitch 8 mm
Coating Width Range 1000 - 3000 mm (Optional)
Glue per Unit Area 200 - 1000 g/m²
Adhesive Viscosity ≤ 25,000 mpa.s
Adhesive Type Two-component / Single-component (Optional)
Vacuum Hot Press Press Type 4-Layer Vacuum Hot Press
Vacuum Range -0.01 ~ 0.08 MPa
Utilities Air Supply 0.6 - 0.8 MPa
Power Supply 380V 50Hz 3-Phase (Optional)
Maximum Power 200 KW

4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels

4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels

Quick Detail:

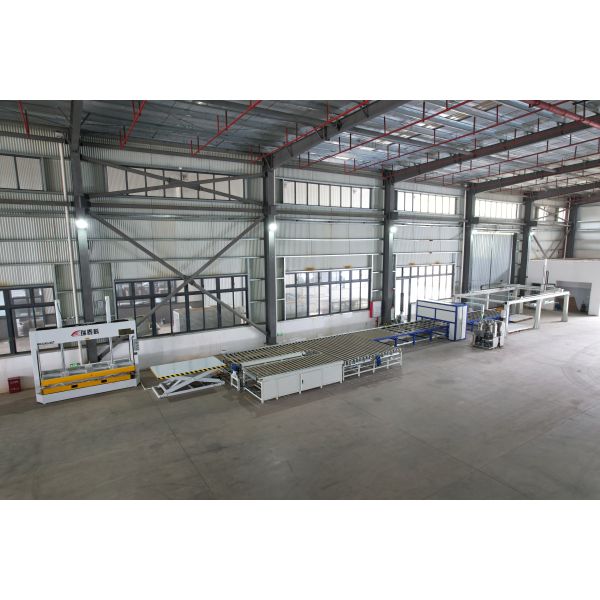

1. Integrated Multilayer Production Line: Combines unwinding, glue spraying, 4-layer negative pressure machine, and cutting in one continuous line.

2. 4-Layer Vacuum Hot Press: High-efficiency multilayer pressing for maximum output with minimal footprint.

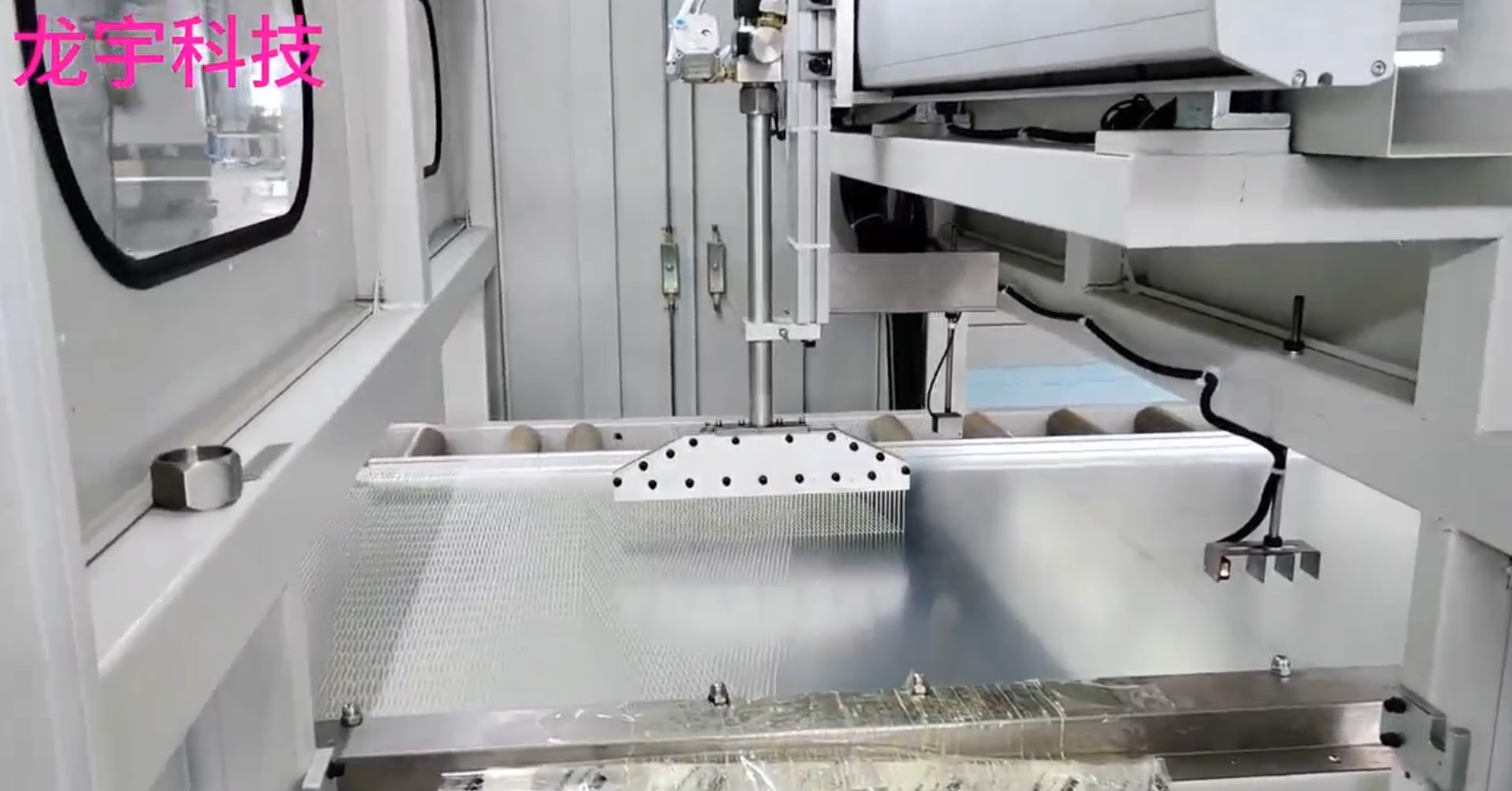

3. Precision Glue Application: ±5% flow accuracy, 500-4000g/min coating amount, width up to 3000mm.

4. Large Format Capability: Handles panels up to 3m wide, 13m long, and 100mm thick.

5. High Output: Production line speed up to 6m/min, ideal for RV and refrigerated truck panel manufacturing.

4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels

4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels

4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels

4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels

Applications:

1. High-volume production of RV (Recreational Vehicle) cabin walls, floors, and roofs.

2. Manufacturing of refrigerated truck and trailer body panels.

3. Large-format sandwich panel production for other transportation and industrial applications.

4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels
