50T Press Fully Automatic Production Line for Marine Insulation Board
50T Press Fully Automatic Production Line for Marine Insulation Board
Specifications
Brand Name :
LONGYU
MOQ :
1Set
Price :
Negotiable
Payment Terms :
,T/T
Supply Ability :
1Set/month
Delivery Time :
45-90 days
Packaging Details :
Standard wooden case
Materialtype :
Marine Grade Plywood
Drying method :
Hot Pressing
Product name :
Marine Board Production Line
Automation level :
High Automation
Surface finish :
Smooth and Waterproof
Certification :
CE,ISO9001,SGS,BV,ISO
Color :
Customizable,Blue,Requirement,Optional,Customized
Product type :
Plastic profile,WPC PVC board,Plastic Sheet,Foam board,PVC ceiling
Description

Automatic Production Line for Marine Insulation Board

Specifications

Parameter Category Item Specification
Board Processing Applicable Board Width 0.5 - 1.3 m (Customizable)
Applicable Board Length 2 - 3 m
Facing Material Thickness 1 - 3 mm
Production Line Total Equipment Length 62 m (Customizable)
Production Efficiency 2 boards per minute (for 3m board)
Glue Pouring System Work Coating Amount 500 - 4000 g/min
Flow Accuracy ≤ ±5%
Glue Nozzle Hole Pitch 8 mm
Coating Width Range 500 - 1300 mm (Optional)
Glue per Unit Area 200 - 500 g/m²
Adhesive Viscosity ≤ 25,000 mpa.s
Adhesive Type Two-component
Pressing Unit Press Pressure 50 Tons (Optional)
Utilities Air Supply 0.6 - 0.8 MPa
Power Supply 380V 50Hz 3-Phase (Optional)
Maximum Power (Whole Line) 370 KW

50T Press Fully Automatic Production Line for Marine Insulation Board

50T Press Fully Automatic Production Line for Marine Insulation Board

Quick Detail

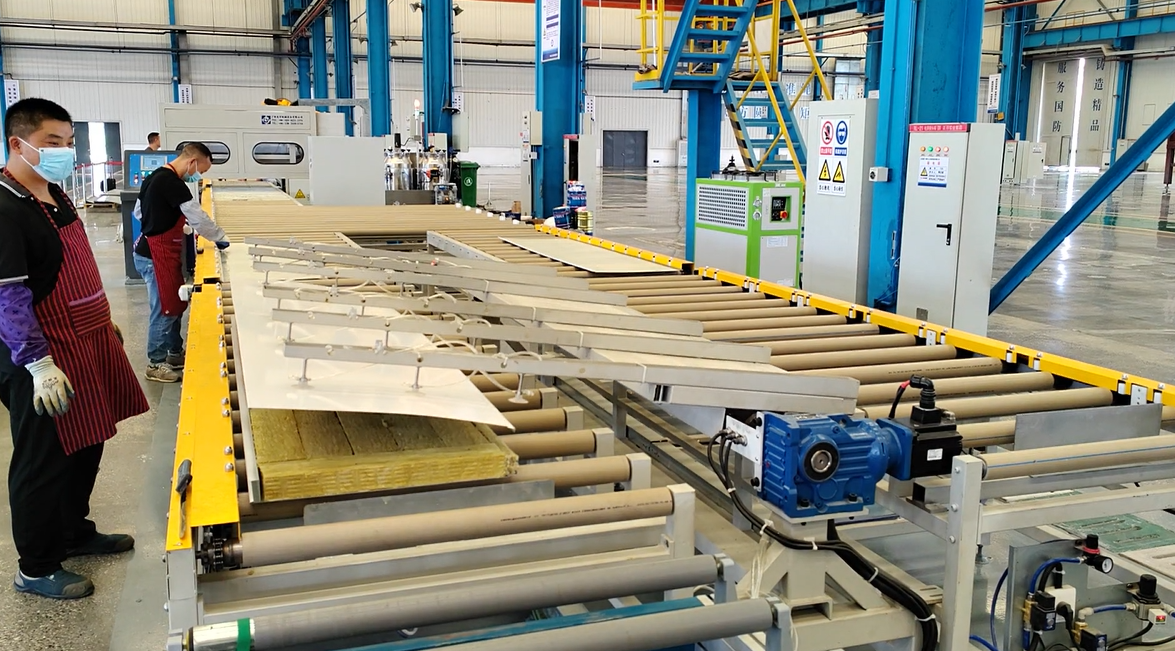

1. Integrated Production Line: Complete automated solution from glue application to pressing for marine insulation boards.

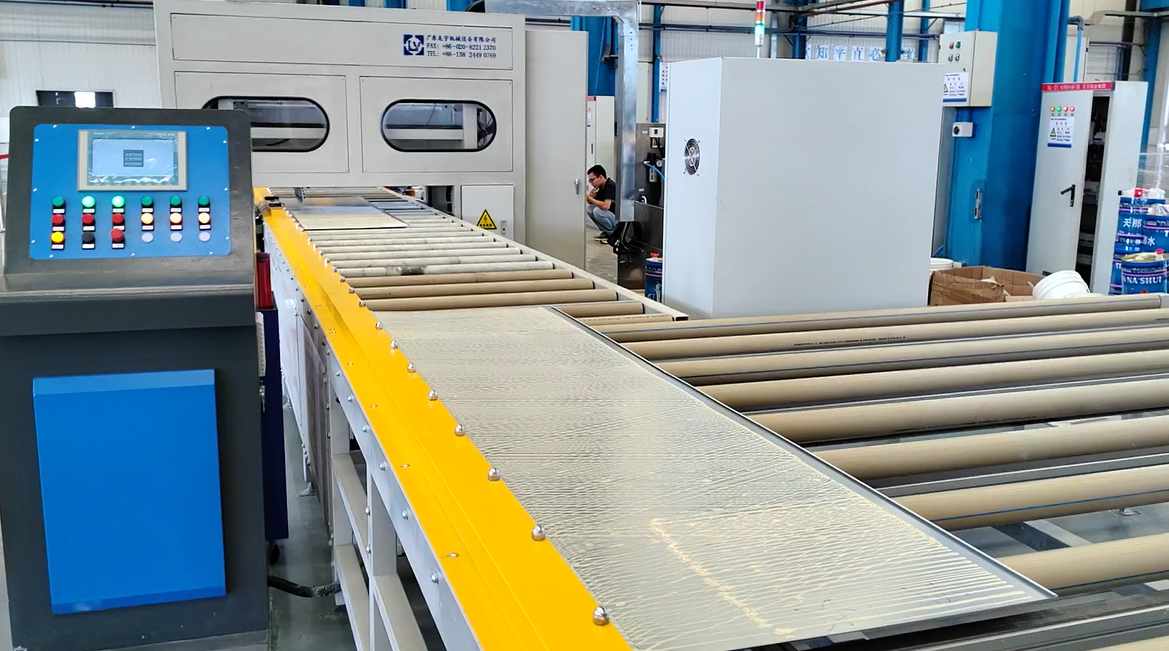

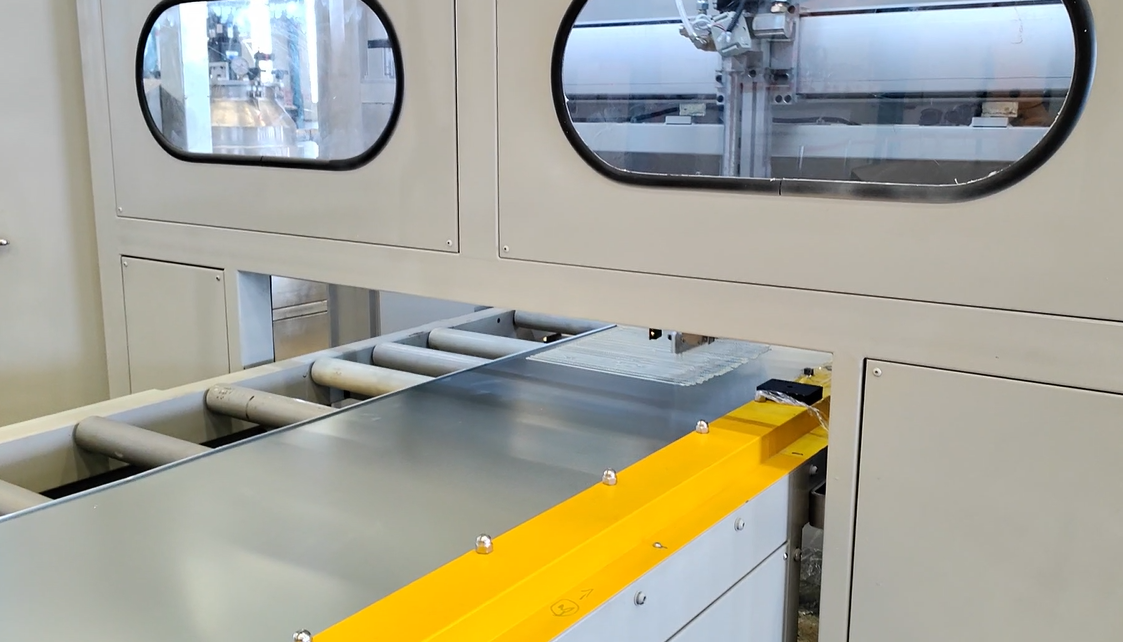

2. High-Precision Glue Pouring: ±5% accuracy, 500-4000g/min flow range, 8mm nozzle pitch.

3. Customizable Board Sizes: Handles boards up to 1.3m wide, 3m long, and 3mm thick (for facing materials).

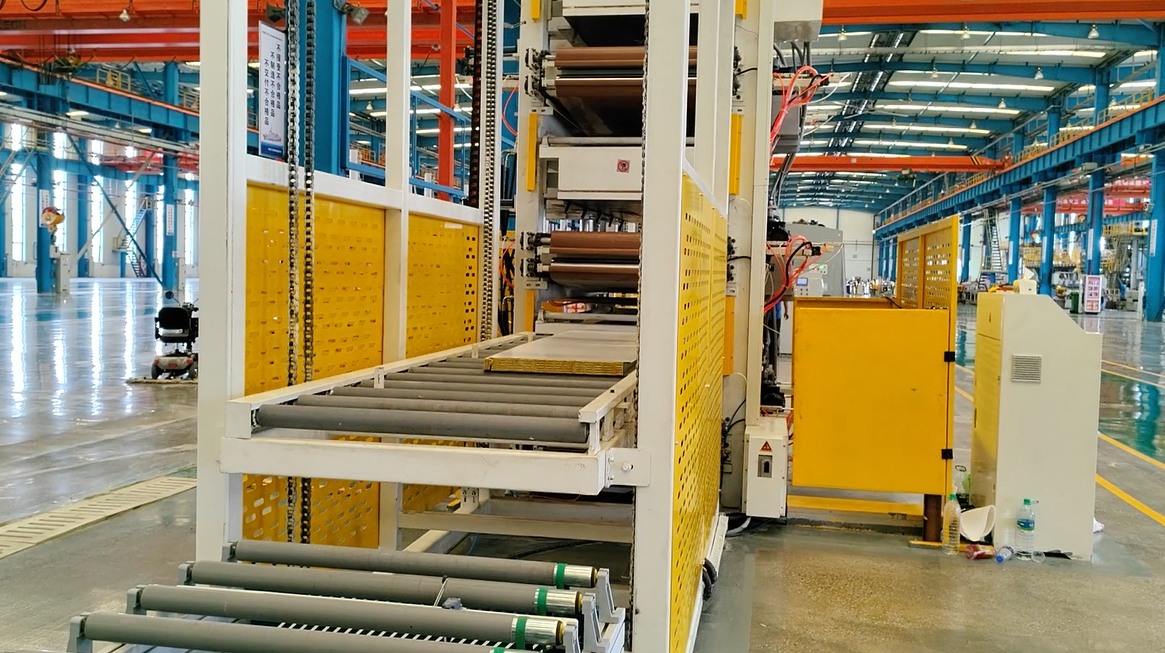

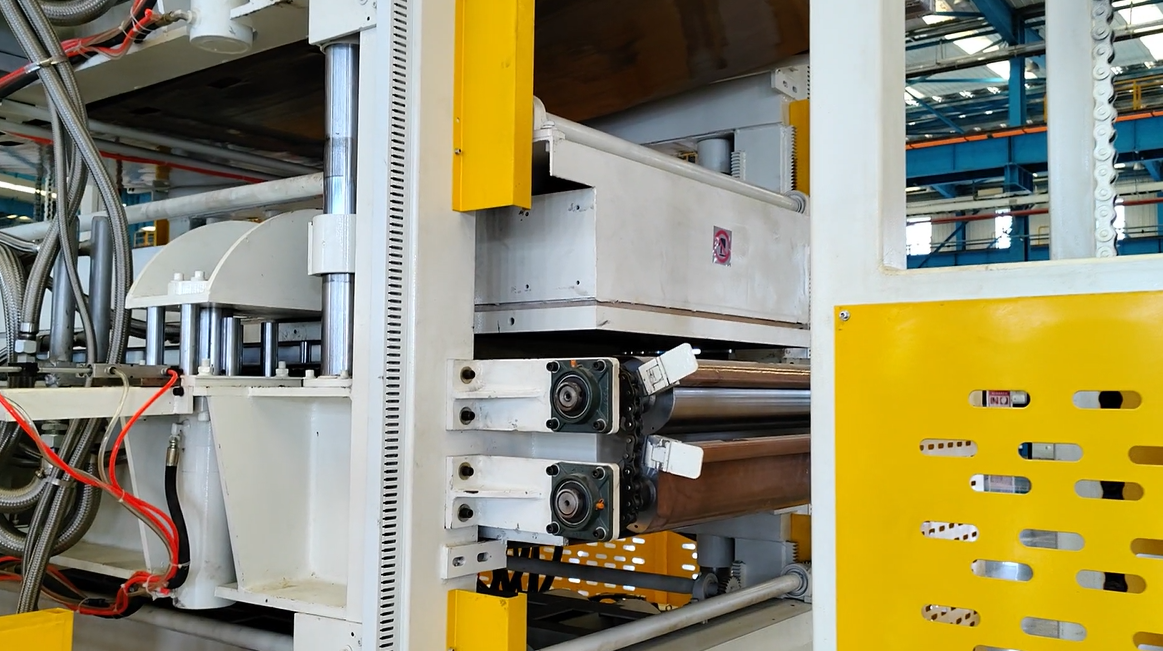

4. Efficient Pressing: Integrated 50T press with production speed of 2 boards per minute.

5. Total Length 62M: Modular design with customization options.

50T Press Fully Automatic Production Line for Marine Insulation Board

50T Press Fully Automatic Production Line for Marine Insulation Board

50T Press Fully Automatic Production Line for Marine Insulation Board

Applications:

1. Production of marine insulation partition boards for ships and vessels.

2. Composite panel manufacturing for other demanding environments requiring high bond strength.

50T Press Fully Automatic Production Line for Marine Insulation Board
50T Press Fully Automatic Production Line for Marine Insulation Board
50T Press Fully Automatic Production Line for Marine Insulation Board
