Automatic Honeycomb Ceiling Panel Production Line

Quick Detail

1. Fully automatic honeycomb ceiling panel production line
2. Designed for composite honeycomb ceiling and wall panels
3. Production efficiency up to 2 boards per minute
4. Coating width range 500–1300mm
5. Glue flow rate 500–4000g/min
6. Adhesive flow accuracy ≤ ±5%
7. Dual-component adhesive system
8. 100T hot press machine
9. Customizable 58m production line length
10. Integrated palletizing and conveying system

Description

The LY-16-1300 Automatic Honeycomb Ceiling Panel Production Line is a fully automated manufacturing system designed for producing honeycomb ceiling panels, medical wall panels, and other composite panel products.

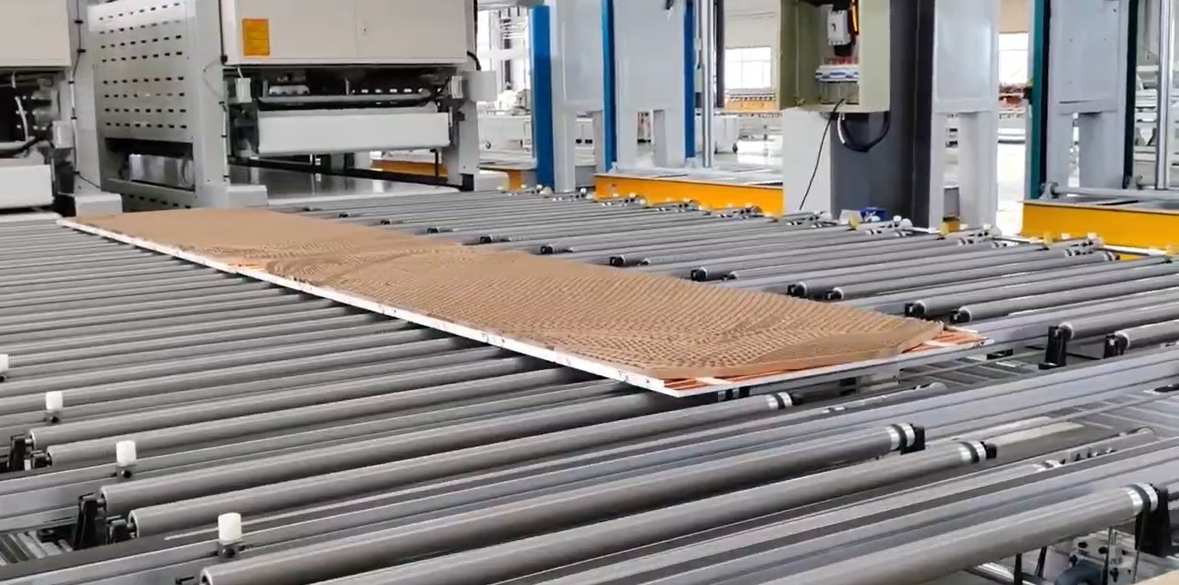

The production line integrates several key processes including unwinding, glue spraying, panel forming, hot pressing, flipping, and automatic palletizing. With a production capacity of up to 2 boards per minute, the system significantly improves manufacturing efficiency while maintaining stable product quality.

The glue spraying system provides precise adhesive control with a flow accuracy of ±5%, ensuring uniform bonding and optimal adhesive consumption. The coating width can be adjusted from 500mm to 1300mm to accommodate different panel specifications.

The hot press machine delivers up to 100 tons of pressure, ensuring strong bonding performance and excellent panel flatness. The entire production line can be customized up to 58 meters in length to match factory layout requirements.

With advanced automation and energy-efficient design, the LY-16-1300 production line is an ideal solution for manufacturers seeking high-volume honeycomb panel production with consistent quality and reduced labor costs.

Production Line Configuration

1. Unwinding Machine
2. Forming Machine

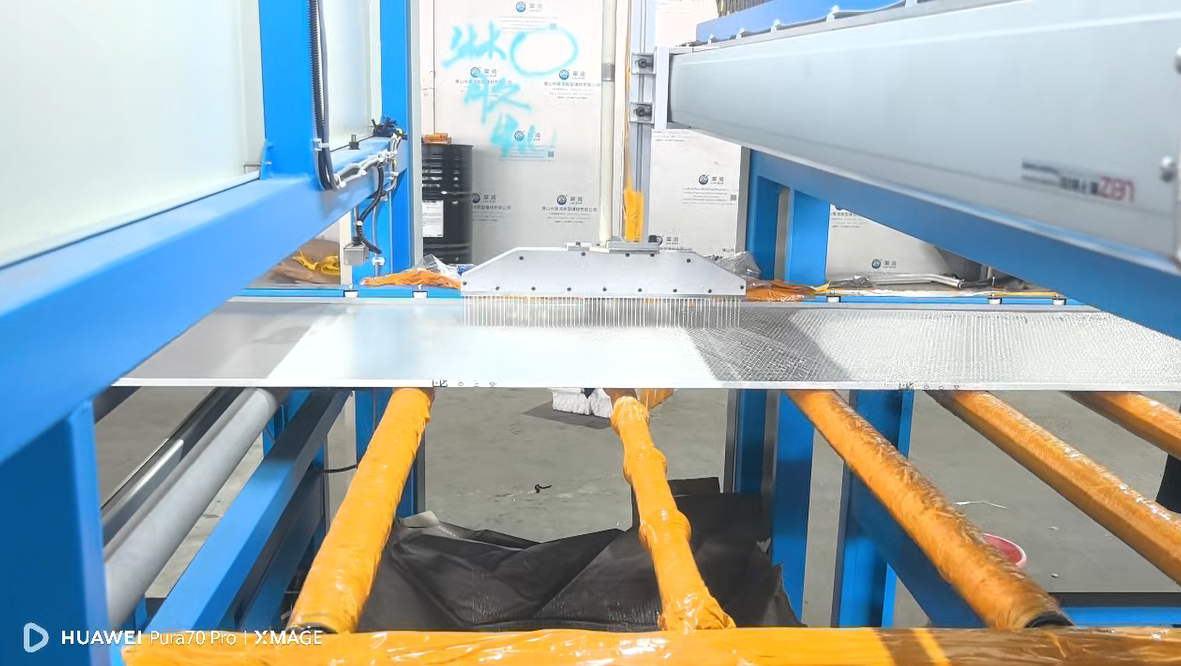

3. Double Head Automatic Glue Spraying Machine
4. Automatic Flipping Machine
5. Single Layer Hot Press Machine
6. Three Axis Palletizing Machine

Technical Specifications

Applications

1. Honeycomb ceiling panel manufacturing
2. Aluminum honeycomb composite panels
3. Medical wall panel production
4. Decorative building panels
5. Industrial composite board production
