Automobile Gantry Type Glue Pouring Vacuum Lamination Machine

Quick Detail:

1. Large-Format Laminating Press: Massive negative pressure platform (17m long standard) for oversized panel production.

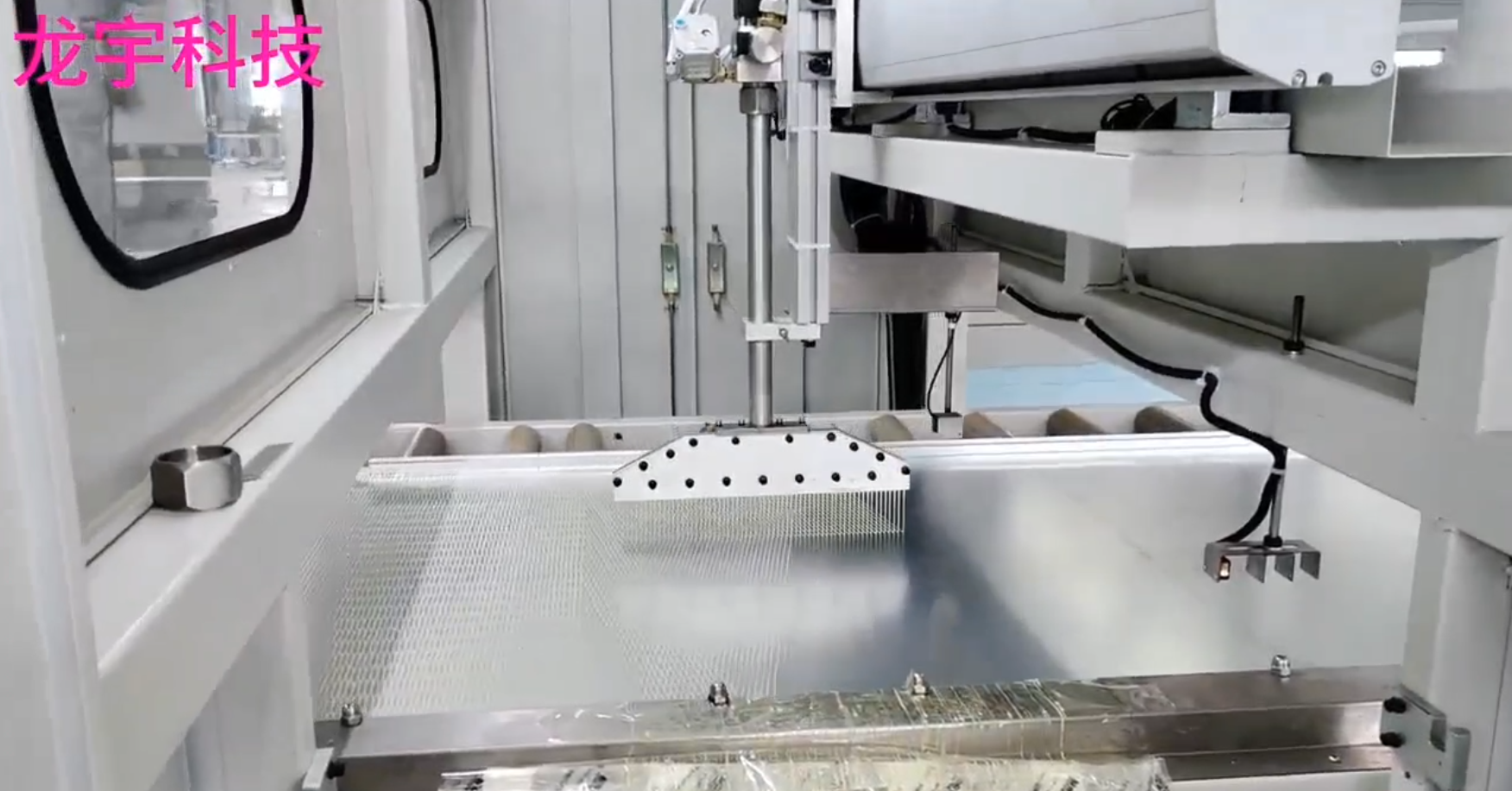

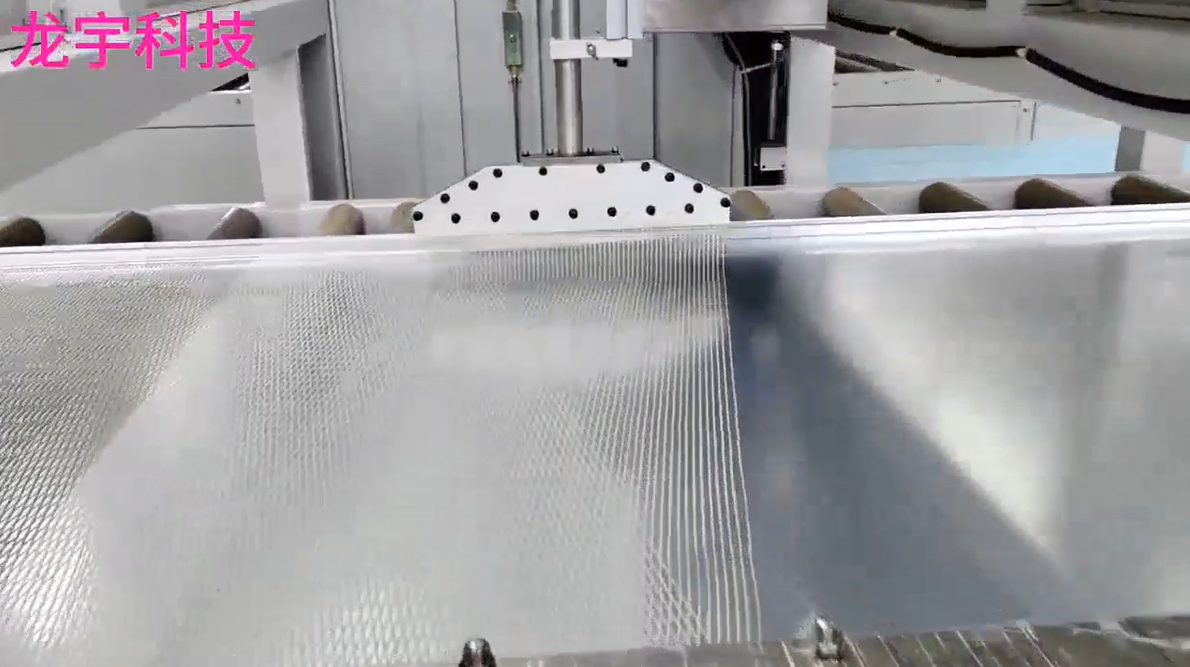

2. Precision Glue Pouring: Integrated glue dispensing system with flow accuracy ≤ ±5%, adjustable from 500-4000g/min.

3. For Transportation Industry: Specifically designed for bonding composite panels used in RV cabins and refrigerated truck bodies.

4. High-Efficiency Vacuum: Stable vacuum pressure up to -0.08MPa ensures bubble-free, strong lamination.

5. Automated & Robust: Gantry structure with automated controls for consistent, high-quality panel bonding.

Description:
The LY-07-3000 Automobile Gantry Type Glue Pouring Vacuum Laminating Machine is a cornerstone in the production of high-strength, lightweight composite panels for the commercial transportation sector. Engineered to handle the demanding scale of RV and refrigerated truck manufacturing, this machine seamlessly integrates precise adhesive application with powerful vacuum pressing in a single automated cycle. Its defining feature is the exceptionally long (up to 17 meters) and wide (up to 3 meters) negative pressure platform, capable of processing full-size cabin and body panels in one operation. The precision glue pouring system travels on a gantry, ensuring uniform adhesive distribution across the entire panel surface, which is then perfectly bonded under controlled vacuum pressure. This process guarantees panels with superior structural integrity, excellent insulation properties, and no voids or delamination, meeting the rigorous standards of the automotive industry.

Specifications:

Notices:

1. Due to the machine’s large footprint (especially length), verify your workshop has sufficient space for installation, operation, and maintenance access.

2. This machine is designed for two-component adhesives. Ensure the adhesive viscosity is within the specified range (≤25,000 mpa.s) for optimal performance.

3. Proper training on the vacuum system operation and safety procedures is essential before use.

4. Regular maintenance of the glue dispensing system (nozzles, pumps) and vacuum seals is crucial for consistent product quality.

Applications:
Primarily used in the core manufacturing process for composite sandwich panels in the transportation industry:

1. RV (Recreational Vehicle) Panels: For walls, floors, roofs, and interior partitions.

2. Refrigerated Truck & Trailer Panels: For insulated body linings, doors, and floors.

3. Other Large Composite Panels: For special vehicles, modular buildings, and industrial doors requiring high-strength bonding.
