Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Specifications
Place of Origin :
China
Brand Name :
CETU
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$800-30000
Model NO. :
Trimble S7 Autolock (1 second)
Range Finding :
3-15km
After-Sales Service :
Professional Guidance
Warranty :
1 Year
Sensor Type :
Absolute Encoder with Diametrical Reading
Type :
Centered Dual-Axis
EDM :
Laser Class 1
Rotation Speed :
115degrees/Sec (128 Gon/Sec)
Clamps and Slow Motions :
Servo-Driven, Endless Fine Adjustmentcentering
Magnification :
30X
Transport Package :
Carton
Specification :
40*40*60 cm
Trademark :
Trimble
Origin :
Sweden
HS Code :
9015800090
Production Capacity :
5000
Package Size :
50.00cm * 50.00cm * 60.00cm
Package Gross Weight :
15.000kg
Description
Absolute Encoder and Diametrical Reading Trimble S7 Autolock 1 Prime Total Station for Construction Survey Professional
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Product Description

The Trimble S7 is a powerful total station with all of the features and tools you need to maximize efficiency in the field and in the office:

  • MagDrive, for exceptional speed and accuracy, reduce wear and tear, and smooth, silent operation
  • FineLock, which detects targets without interference from surrounding prisms, ensuring target lock over long distances, and eliminating errors caused by interference
  • SurePoint, ensures precise pointing and measuring by staying on target through virtually any situation, from windy weather to vibrations
  • Optional Trimble Sentinel tracking technology
  • Industry-leading field and office software for fast data collection and processing no matter the Trimble instrument

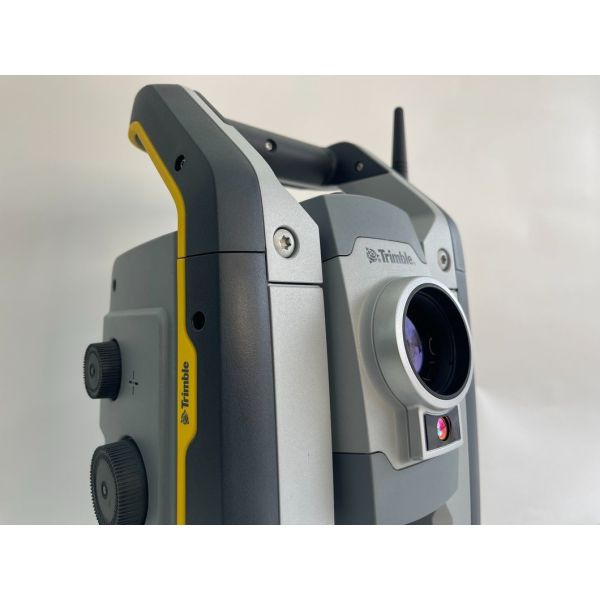

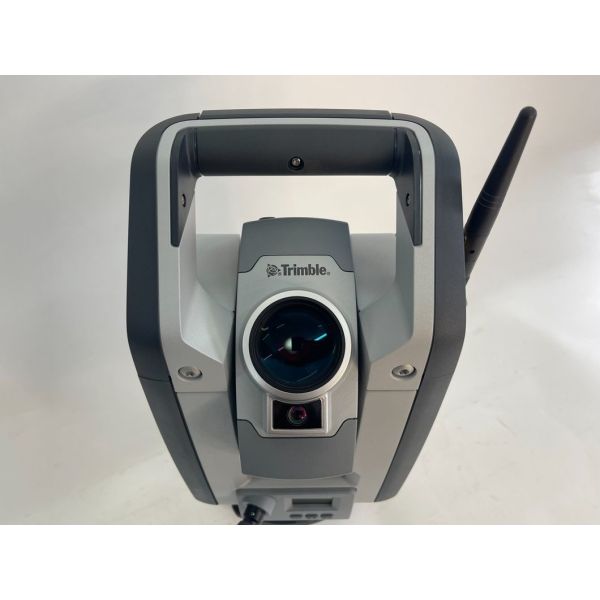

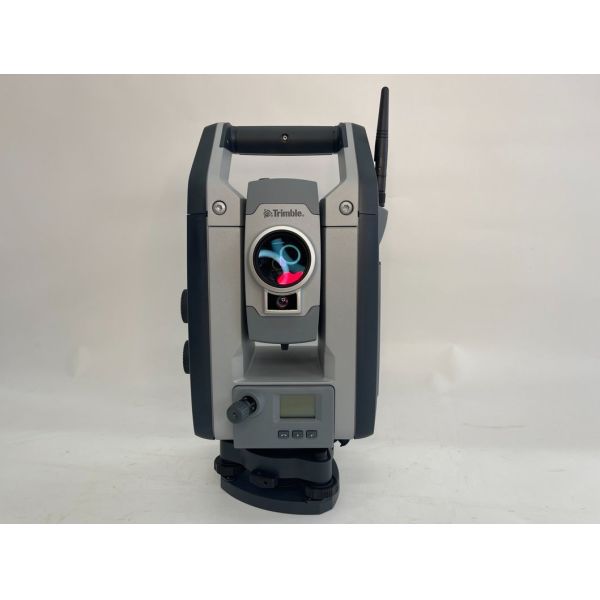

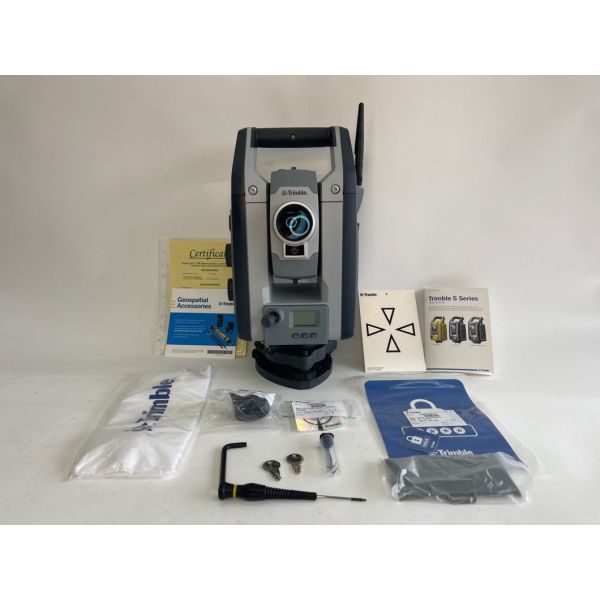

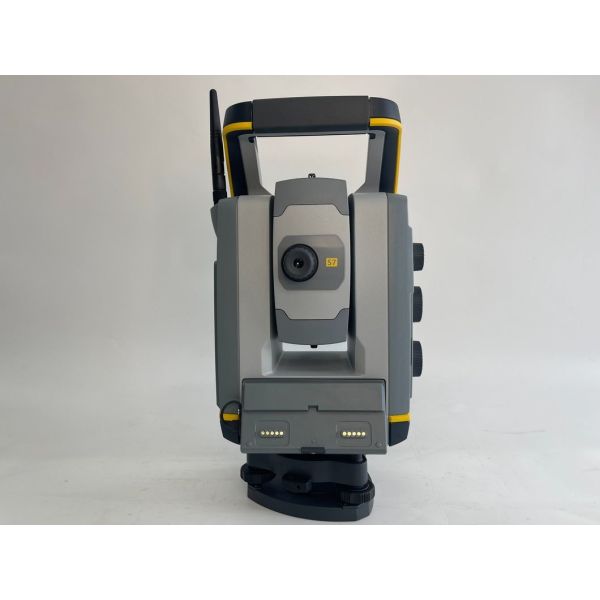

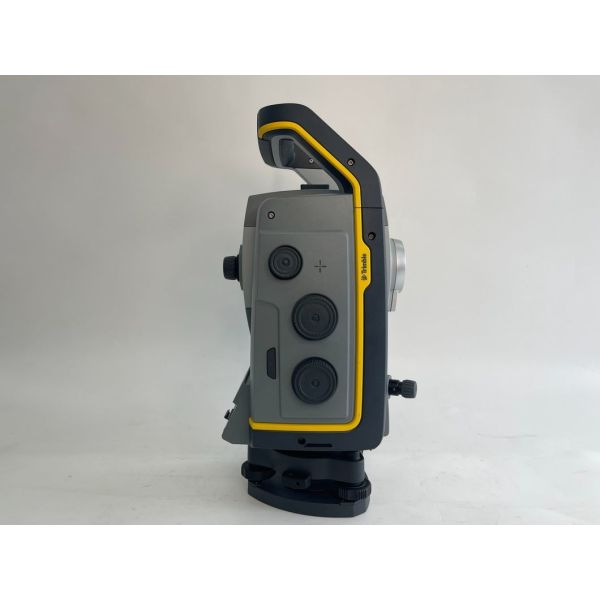

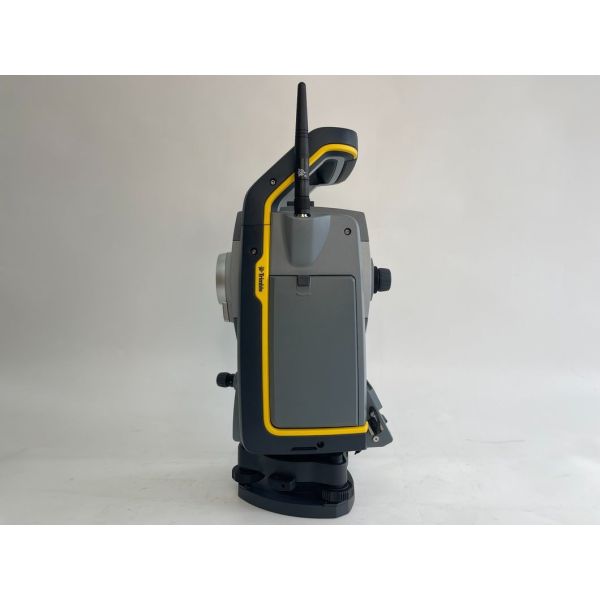

Detailed Photos
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument
Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument

Trimble S7 Autolock 1 Prime Construction Total Station Robotic Survey Instrument

Product Parameters
Performance Angle measurement Sensor type Absolute encoder with diametrical reading
Accuracy 1″(0.3 mgon), 2″(0.6 mgon) or 5″(1.5 mgon)
Angle display
(least count)		 0.1″(0.01 mgon)
Automatic level compensator Type Centered dual-axis
Accuracy 0.5″(0.15 mgon)
Range ±5.4′(±100 mgon)
Distance measurement Accuracy(ISO) Prism mode Standard 1mm+2ppm(0.003ft+2ppm)
Accuracy(RMSE) Prism mode Standard 2mm+2ppm(0.0065ft+2ppm)
Tracking 4mm+2ppm(0.013ft+2ppm)
DR mode Standard 2mm+2ppm(0.0065ft+2ppm)
Tracking 4mm+2ppm(0.013ft+2ppm)
Extended range 10mm+2ppm(0.033ft+2ppm)
