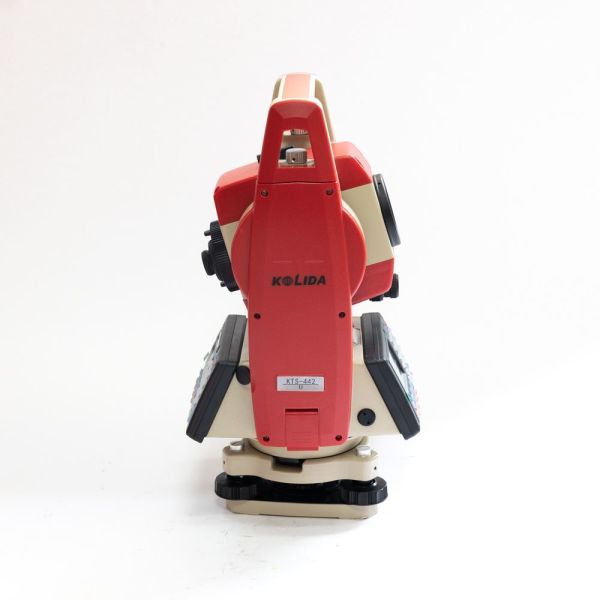

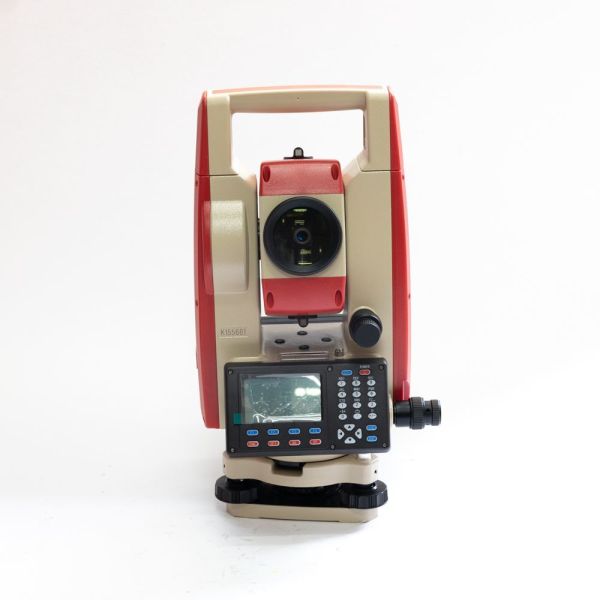

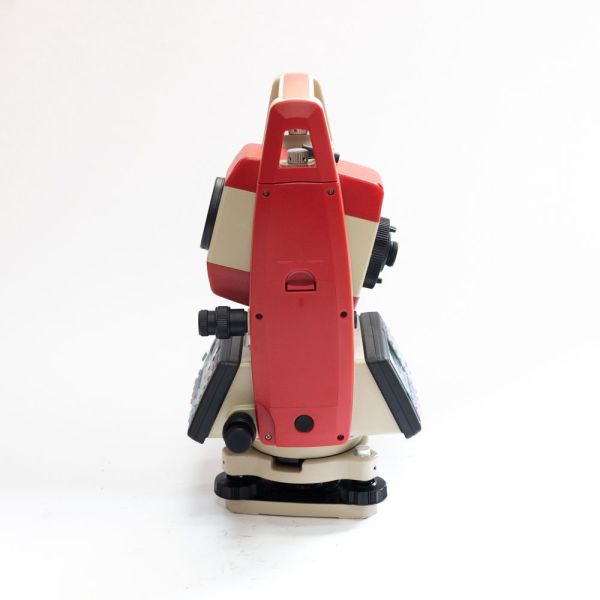

Kolida Total Station Kts442u R10 Industrial Measuring Instruments

Specifications

Model NO. :

Kolida KTS-442U R10

Range Finding :

3-15km

After-Sales Service :

Professional Guidance

Warranty :

1 Year

Transport Package :

Carton

Trademark :

Kolida

Origin :

Guangzhou, China

HS Code :

9015800090

Production Capacity :

10000

Package Size :

50.00cm * 30.00cm * 40.00cm

Package Gross Weight :

9.000kg

Place of Origin :

China

Brand Name :

CETU

Certification :

MOQ :

Packaging Details :

Carton

Delivery Time :

10-30days

Payment Terms :

T/T advance; Western union; MoneyGram,etc.

Supply Ability :

1000

Price :

$800-30000

Description

Measuring Device Industrial Level Kolida Total Station Kts442u R10 with Professional Guidance and After-Sales Service

KTS-442U has new quick measurement keys, serial SD card is upgraded to U disk interface, standard built-in Bluetooth, newly upgraded LCD screen and font library, larger screen, font display More clearly, it is a tailor-made measurement program based on the actual field measurement, suitable for pure field operation, the instrument is simple and practical to operate, and can be easily used without measurement experience.

1. International advanced dual-axis compensation technology to automatically eliminate errors and compensate to improve accuracy. Graphical electronic bubbles at a glance.

2. A new quick measurement button is added, and the measurement can be started by simply pressing the black circular measurement button on the side of the total station.

3. The serial port SD card is upgraded to a U disk interface, and data import and export are carried out through the U disk, which is convenient and fast.

4. The built-in bluetooth can communicate with the mobile terminal in real time; it can be seamlessly connected with the mobile phone surveyor software to realize the uploading and uploading of files; through the transmission software, the data can be exchanged with the PC terminal.

5. The battery compartment on the side of the total station keeps improving. The built-in battery compartment is designed for easy access and buckle, which is safe and reliable.

Basic Properties
Data Transmission	U disk interface, built-in standard Bluetooth
Index difference 2C correction	Automatic Correction
Telescope
Image	Erect
Lens barrel length	154mm
Magnification	30X
Objective Lens Effective Aperture	45mm DTM:50mm
Resolution	3''
Field of Angle	1°30′
Angle Measurement
Angle Measure Method	Absolute Encode
Code Disc Diameter	79mm
Angle Measure Precision	2″
Reading	1″,5″
Distance Measurement
Single Prism	5 km
Index difference 2c correction	Automatic correction
Measuring time	Fine mode: 0.3s Tracking mode: 0.1s
Reading	Maximum: 99999999.999m Minimum: 1mm
Precision	With prism: 2+2ppm Without prism: 3+2ppm
Atmospheric Correction	Auto Correction
Prism constant Correction	Auto Correction
Automatic Vertical Compensation
System	Dual-axis Liquid-electric Sensor Compensation
Working Range	±4′ (±6′ optional)
Resolution	1″
Level
Long Level	30″/ 2mm
Circle Level	8′/ 2mm
Optical Plummer
Image	Erect
Magnification	3X
Focusing Range	0.5~∞
Field of view	5°
Laser Plummer
Plummer Precision	±1.5mm at 1.5m
Brightness	With brightness adjustment function
Physical Characteristics
Battery	Rechargeable Lithium Battery, 3100mAh
Voltage	DC 7.4V
Continous Working Time	About 10 hours
Size & Weight
Size	190X190X350mm
Weight	5.6kg
