3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
Specifications
Model NO. :
FOIF RTS-342 R10
Range Finding :
3-15km
Accuracy :
2mm
Vertical Lines :
1
Horizontal Line :
1
After-Sales Service :
Professional Guidance
Warranty :
1 Year
Precise Measurement :
0.3s
Precision :
±(2mm+2×10-6·d)
Minimum Display :
0.1mm
Angle Measuring Method :
Absolute Encoding (Code Disc Diameter 79mm)
Transport Package :
Carton
Specification :
50*30*40 cm
Trademark :
FOIF
Origin :
Suzhou, China
HS Code :
9015800090
Production Capacity :
5000
Package Size :
50.00cm * 30.00cm * 40.00cm
Package Gross Weight :
10.000kg
Place of Origin :
China
Brand Name :
CETU
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$800-30000
Description
3-15km Range Finding and High Precision Foif Rts342 R10 Total Station Survey Equippment with Absolute Encoding
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
Product Description

1. Prism-free measuring range;

2. Laser pointing, automatically open when not ranging,
which is convenient for aiming at the target in a dark environment;

3. Double-sided color QVGA display;

4. Laser plummet, clearly visible in sunlight, adjustable brightness;

5.With 4G memory; support SD card expansion.

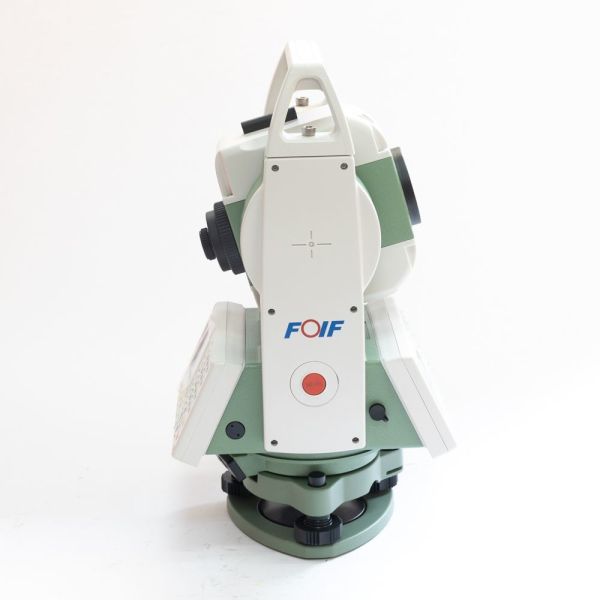

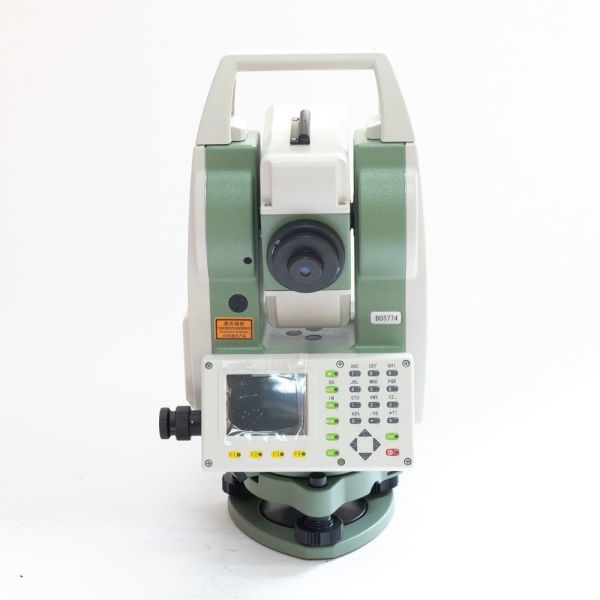

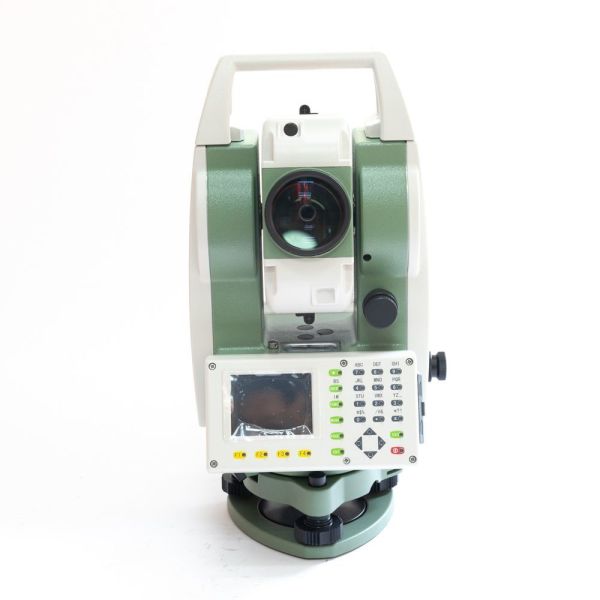

Detailed Photos
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine
3-15km Range Finding High Precision Total Station Foif Rts342 R10 Geophysical Survey Machine


Product Parameters
Distance measurement
RTS342 5000m/single prism
RTS342R5 500m/non-prism; 800m/reflector; 5000m/single prism
RTS342R6 600m/non-prism; 1000m/reflector; 5000m/single prism
RTS342R8 800m/non-prism; 1200m/reflector; 6000m/single prism
RTS342R10 1000m/non-prism; 1200m/reflector; 6000m/single prism
Precise measurement 0.3S
Precision ±(2mm+2×10-6·D)
Minimum display 0.1mm
Angle measurement
Angle measuring method Absolute encoding (code disc diameter 79mm)
Accuracy 2″
Minimum reading 0.1″/1″/5″
Telescope
Image Erect
Field of view 1°30′
Objective lens effective aperture Φ48mm
Resolution 3″
Magnification 30X
Shortest sight distance 1.0m
Compensator
Compensation method Double axis compensation
Compensation range ±6′
Power
Voltage 7.4V DC(rechargeable lithium-ion battery)
Working time ≥ 12 hours
Others
Display 2.7-inch color display on both sides
Communication RS-232C/USB/SD card copy
Waterproof and dustproof IP66
