Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Specifications
Model NO. :
Sino T30
Type :
Geodesic Receiver
After-Sales Service :
Professional Guidance
Warranty :
1 Year
Transport Package :
Carton
Specification :
135*135*84.75mm
Trademark :
Comnav
Origin :
Nanjing, China
HS Code :
8526919090
Production Capacity :
30000
Package Size :
35.00cm * 25.00cm * 30.00cm
Package Gross Weight :
3.000kg
Place of Origin :
China
Brand Name :
CETU
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$1200-3000
Description
Model Comnav Sino T30 Imu Gnss Receiver Professional for Accurate Surveying Results geo equipment
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Product Description

With built-in IMU engine, full-constellation tracking capability, 4G/WiFi/Bluetooth® connection and easy survey workflow with Android-based Survey Master Software, the T30 IMU GNSS receiver is an ideal choice for your survey task.

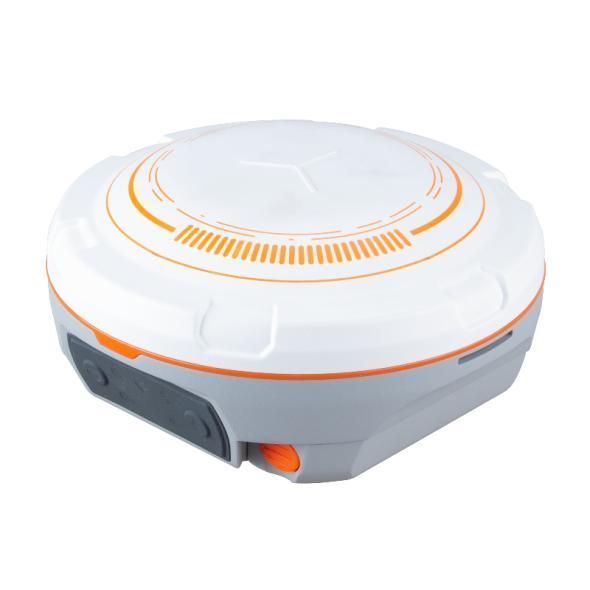

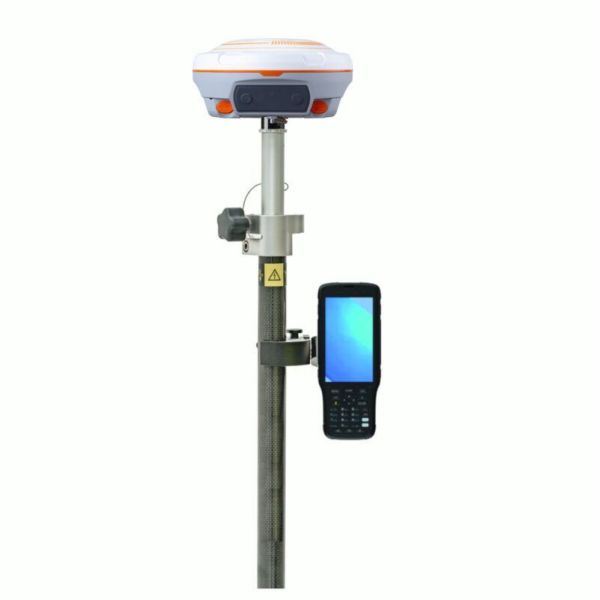

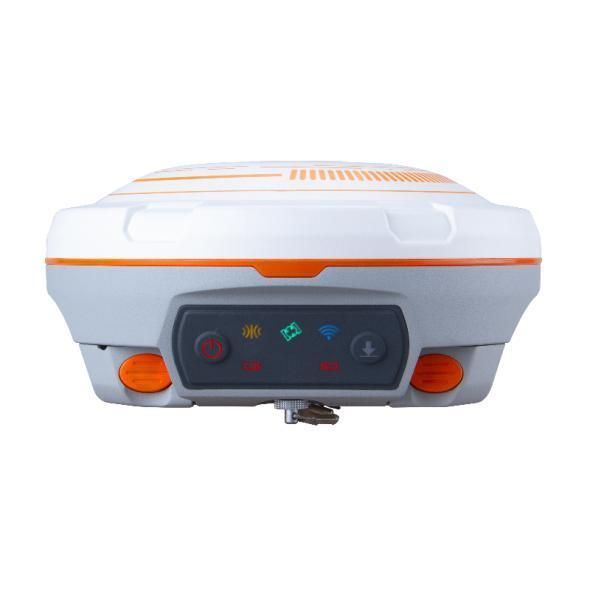

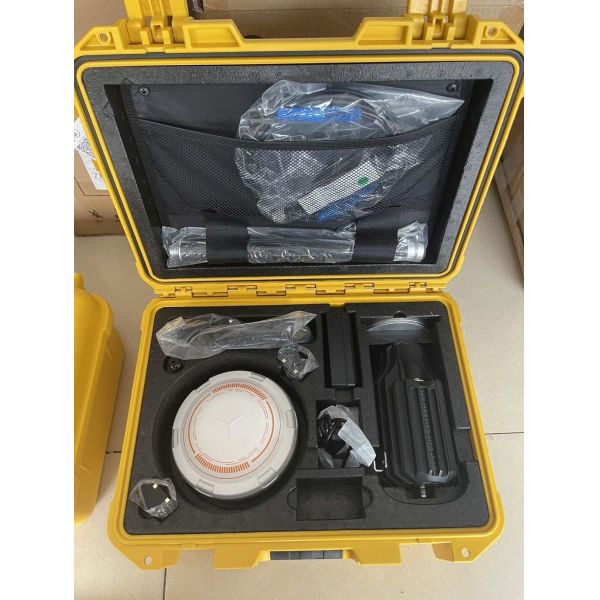

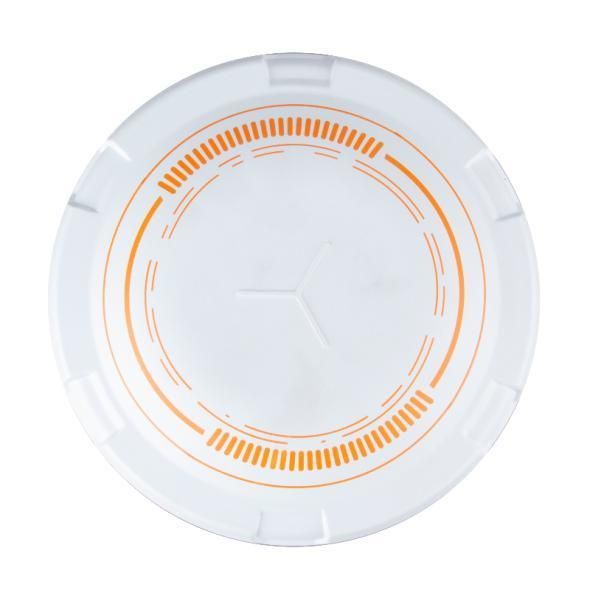

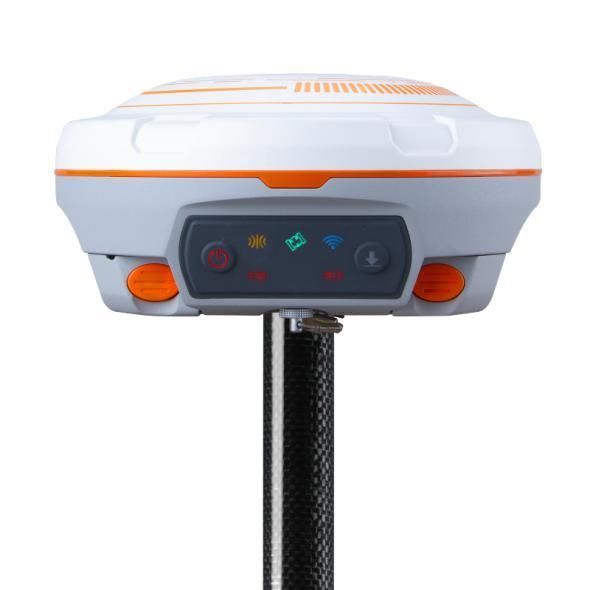

Detailed Photos
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments
Comnav Sino T30 Imu Gnss Receiver Accurate Survey Measurement Instruments


Product Parameters

Performance

Channels

1198

Satellites tracking

- GPS: L1 C/A, L2C, L2P, L5

- BeiDou: B1, B2, B3

- BeiDou Global Signal: B1C, B2a

- GLONASS: L1 C/A, L1P, L2 C/A, L2P

- Galileo: E1, E5a, E5b, E6, AltBOC

- QZSS, IRNSS

- L- Band

- SBAS: WAAS, EGNOS, MSAS, GAGAN

Network RTK

8 mm + 0.5 ppm Horizontal

15 mm + 0.5 ppm Vertical

Post Processing Kinematic(PPK)

5 mm + 1 ppm Horizontal

5 mm + 1 ppm Vertical

PPP

10cm Horizontal and 20cm Vertical

Standalone

1.5 m 3D RMS

SBAS

1 m 3D RMS

DGPS

<0.4 m RMS

Static and Fast Static

Horizontal: 2.5 mm + 0.5 ppm

Vertical: 5 mm + 0.5 ppm

Long Observations Static

Horizontal: 3 mm + 0.1 ppm

Vertical: 3.5 mm + 0.4 ppm
Real Time Kinematic

8 mm + 1 ppm Horizontal

15 mm + 1 ppm Vertical

Physical

Size (W x H)

Φ15.5 cm x 7.3 cm

Weight

1.2 kg with two batteries

Power consumption

1.92 W

Input voltage

7-28 VDC

Battery

2 x3400 mAh, up to 16 hours typically

Memory

8 GB

Operating temperature

-40 °C to + 65 °C (-40 °F to 149 °F)

Storage temperature

-40 °C to + 85 °C (-40 °F to 185 °F)

Humidity

100% no condensation

Waterproof and dustproof

IP67

Shock

Designed to survive a 2 m drop onto concrete

Communications

1 Serial port (7 pin Lemo)

Baud rates up to 921,600 bps

UHF modem

- Transmit power: 0.5-2 W adjustable

- Range: 1-5 km

4G modem

- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
- LTE-TDD: B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: B2/B3/B5/B8

WIFI

802.11b/g/n

Position data output rate

1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz

5 LEDs

indicating RTK Corrections data, Satellites Tracking, GPRS status and Power

Bluetooth

V4.0, compatible with Windows OS and Android OS

Built-in IMU supports up to 60° tilt compensation
