Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Specifications
Model Number :
Hi-Target Ts5
Model NO. :
Hi-Target TS5
Type :
Geodesic Receiver
Vertical Lines :
2
Horizontal Line :
1
After-Sales Service :
Professional Guidance
Warranty :
1 Year
Accuracy :
5mm
Positioning Output Frequency :
1Hz-20Hz
Static Data Format :
Gns, Renix Dual Format Static Data
Diffiencial Format :
Cmr, Rtcm2.X, Rtcm3.0, Rtcm3.2
Operating System :
Linux
Initialization Time :
<10s
Transport Package :
Carton
Specification :
35*20*35 cm
Trademark :
Hi-Target
Origin :
Guangzhou, China
HS Code :
8526919090
Production Capacity :
30000
Package Size :
35.00cm * 20.00cm * 35.00cm
Package Gross Weight :
5.000kg
Place of Origin :
China
Brand Name :
CETU
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$1200-3000
Description
5.000kg Package Gross Weight Hi-Target Gnss Ts5 Rtk Receiver with Inertial Navigation and Horizontal Line 1
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Product Description
  1. Support third-generation satellite signals, More than 50 satellites for searching and calculating,
    The signal reception is more sensitive, the anti-interference is strong.

    2. Built-in full protocol radio and 4G network, and the power is adjustable in high, medium and low.
    Large iHand55 handbook, with octa-core processor and 5.5-inch bright touch screen.

    3. Lightweight design, device case is reduced by 50%,
    Centering pole can be retracted to 1.25m, making it more portable for self-driving field work.
Detailed Photos
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy

Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy

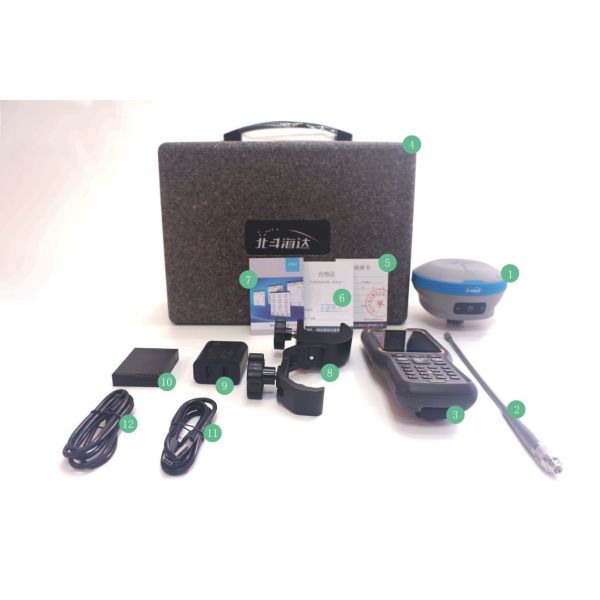

1. GNSS Receiver 2. UHF Antenna 3. Handheld controller 4. Tool Box 5. Warranty Card 6. Certification
7. Operation Manual 8. Bracket 9. Receiver Adapter 10. Battery 11.Data Cable 12. Charging Cable

Product Parameters
GNSS settings 660 channels
BDS: B1I, B2I, B3I, B1C, B2a
GPS: L1, L2, L5
GLONASS: L1, L2
GALILIEO: E1, E5a, E5b
QZSS: L1, L2, L5
SBAS: support
Output format ASCII.NMEA-0183, binary code
Positioning output frequency 1Hz-20Hz
Static data format GNS, Renix dual format static data
Diffiencial format CMR, RTCM2.X, RTCM3.0, RTCM3.2
Network mode VRS, FKP, MAC, support NTRIP protocol
System settings Operating system Linux
Start time 3 second
Data storage Bulit-in 8GB ROM, support automatic cycle storage of static data
Presion & Reliability RTK positioning precision Vertical: ±(8+1x10-6D)mm (D is the distance between the measured points)
Horizon: ±(15+1x10-6D)mm (D is the distance between the measured points)
Static positioning precision Vertical: ±(2.5+0.5x10-6D)mm (D is the distance between the measured points)
Horizon: ±(5+0.5x10-6D)mm (D is the distance between the measured points)
DGPS positioning precision Vertical: ±0.25m+1ppm; Horizon: ±0.5m+1ppm
SBAS positioning precision 0.5m
Initialization time <10s
Initialization reliability >99.99%
Communication unit I/O port Five-core interface, USB Type-C interface, SMA interface, Nano SIM card slot
Bulit-in eSIM card Including 3 years of Internet access fee, no need to insert a card to access the Internet
Built-in 4G network communication TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM
WIFI communication 802.11 a/b/g/n access point & client-side mode
Bluetooth communication Bluetooth® 4.2/2.1+EDR, 2.4GHz
Built-in radio Built-in transceiver radio
Power: 0.5W/1W/2W adjustable
Frequency: 410MHz-470MHz
Protocol: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SOUTH
Numbers of channels: 116 (16 of them are configurable)
External radio All-protocol external radio
Power: 10W/30W adjustable
Frequency: 403MHz-473MHz
Protocol: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SOUTH, CHC, SATEL
Transmission rate: 19.2 kbps/9.6 kbps adjustable
Numbers of channels: 116 (16 of them are configurable)
Sensor Electric bubble Smart centering
Tilt measurement Built-in high-precision inertial navigation, Automatic posture compensation, No correction required, Anti-magnetic interference
User Interface Button 2 buttons
Screen 0.94 inches 240*120 high precision LED colorful screen
LED indicators Satellite indicator; signal indicator
Function & Application Advanced Function ATG, NFC, WebUI, U disk firmware upgrade, network relay
Smart Application Intelligent base station, intelligent voice, function self-test, fast charging, AR surveying, AR stakeout
Remote Service Online upgrade, remote control
Cloud Service Device management, location service, data analyse, collaborative work
Physical Characters Receiver's Battery Built-in high-capacity lithium battery, 6800mAh/7.4V, can supply receiver's work for 10 hours
Fast Charging USB PD3.0 super fast-charging, charging time< 3.5 hours; support power bank charging
External power supply 6-28V Wide voltage DC design, five-core interface
Size 156mm x 77mm
Weight ≤1.25kg(including battery)
Power Consumption 4.2W
Material The shell is made of magnesium alloy material
Environment Characters Waterproof & Dustproof IP68
Anti-drop Resist 2 meters natural drop
Relative Humidity 100% non-condense
Working Temperature -30ºC~70ºC
Storage Temperature -40ºC~80ºC
Certifications

Hi-Target Ts5 Gnss Rtk Receiver With Inertial Navigation 5mm Accuracy
