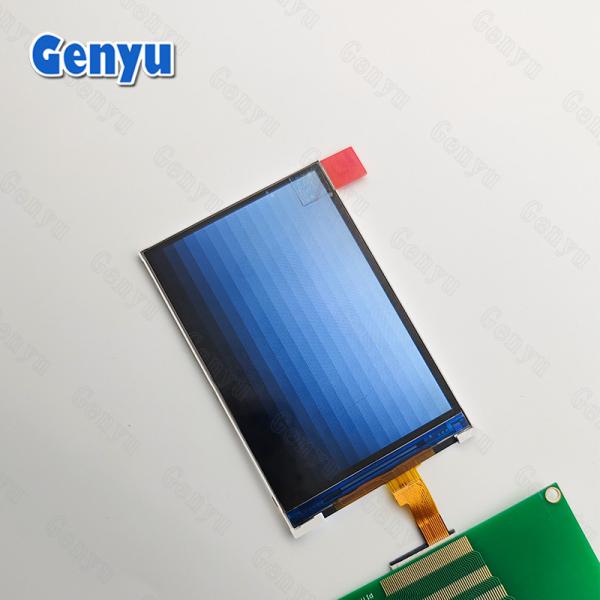

12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface
Specifications
Brand Name :
Genyu
Model Number :
GY-TFT035B220
Certification :
RoHS, ISO9001: 2015
Place of Origin :
China
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :
300K pcs/ Month
Delivery Time :
25-30 days
Packaging Details :
Anti-plastic trays and Carton Boxes
Panel Size :
3.5 inch(diagonal)
LCD Resolution :
320x480 dots
Viewing Angle :
12 O'clock
Driver IC :
ST7365
Interface :
SPI
FPC :
12pin
Description

3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 12pin SPI Interface

How TFT LCD Works:

A TFT LCD is composed of several layers:

  1. Backlight: Provides light to the display (usually LED-based).
  2. Polarizer: Controls the direction of light passing through the screen.
  3. Liquid Crystal Layer: The liquid crystals are sandwiched between two electrodes, and these crystals change orientation when an electric current is applied.
  4. Color Filters: These filters control the color of the light passing through, typically arranged in a RGB pattern.
  5. TFT Layer: This layer controls the switching of each pixel in the display. Each pixel has its own thin-film transistor, allowing it to be controlled individually.

12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface

Basic Parameters:

NO. ITEM SPECIFICATIONS
1 Product Name 3.5 Inch TFT LCD
2 LCD Type BOE, TN, HVGA
3 Viewing Angle 12 O'clock
4 Resolution
320x480 dots
5 Operating Temperature -20~+70℃
6 Storage Temperature -30~+80℃
7 FPC Connector 12 PIN, ZIF type
8 Driver IC(COG) ST7563
9 Interface SPI
10 Backlight Type

6-LED, White, 120mA
11 Outline Dimension

54.90(H)* 84.60(V)* 1.97(D) mm
12 Active Area
48.96(H)* 73.44(V) mm

12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface

TFT Screens ( 0.42 inch~10.11 inch ):

We mainly develop TFT LCD screens of small-middle sizes, sizes as below.

--Vertical Type: 0.85", 1.5", 1.69", 1.77", 1.83", 2.0", 2.2", 2.36", 2.4", 2.8", 2.95", 3.2", 3.5", 3.97", 4.3", 4.45", 4.3", 5.5", 7", 8".
---Horizontal Type: 0.42", 2.31", 3.5", 4.3", 5.0", 7.0", 10.1".
---Bar Type: 0.96", 1.05", 1.06", 1.08", 1.12", 1.14", 1.42", 1.45", 1.47", 1.65", 1.99", 2.25", 2.79", 3.13", 10.11".
---Square Type: 1.3", 1.44", 1.54", 3.95".
---Round Shape: 0.71", 0.9", 0.99", 1.28", 1.32", 1.45", 1.46", 1.6", 2.1", 2.76", 3.54".
---RTP
---CTP
---Backlight
We can customize the FPC/ Backlight/ Touch Panel/ Brightness/ Interface based on your demands.
Pls let me know your requirements, and we will provide some suggestions/options.

12pin 3.5 Inch TFT LCD Display Screen 320x480 Resolution ST7365 SPI Interface

Other Common TFT LCD Controllers:

TFT displays require controller ICs to interface with microcontrollers or computing platforms. Common TFT controller ICs include:

  • ILI9341: A popular controller for 2.8-inch to 3.5-inch TFT displays, commonly used with Arduino and other embedded systems.
  • ST7735: A common TFT controller used for smaller displays (like 1.8-inch or 2.4-inch).
  • SSD1963: A controller for larger displays (up to 7 inches or more) with high resolutions.
  • HX8347: Another common controller for TFT displays, often found in 3.2-inch screens.
  • SSD1289: A controller commonly used for medium to large TFT LCDs.

FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
