Specifications
Place of Origin :
Guangdong, China
Brand Name :
GENYU
MOQ :
100
Price :
$10-15
Display Type :
TFT
Display Size :
5.45 INCH
Backlight Type :
LED
Resolution :
720*1440
Operating Temperature :
-20~70℃
Mounting Type :
PCB
Screen Size :
5.45"
Communication Interface :
MIPI interface/30 pin
Driver IC :
HX8394F
LCD Type :
TFT Transmissive
Number of Dots :
720x (RGB) x 1440
Pixel Arrangement :
RGB Vertical Stripe
Active Area :
61.88(H) x 123.77(V)
Viewing Direction :
ALL
Module Size :
64.22(H) × 130.48 (H) *1.62
Description

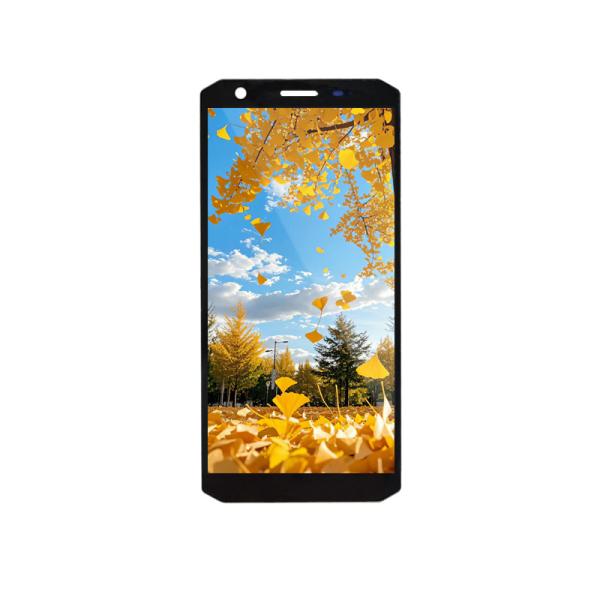

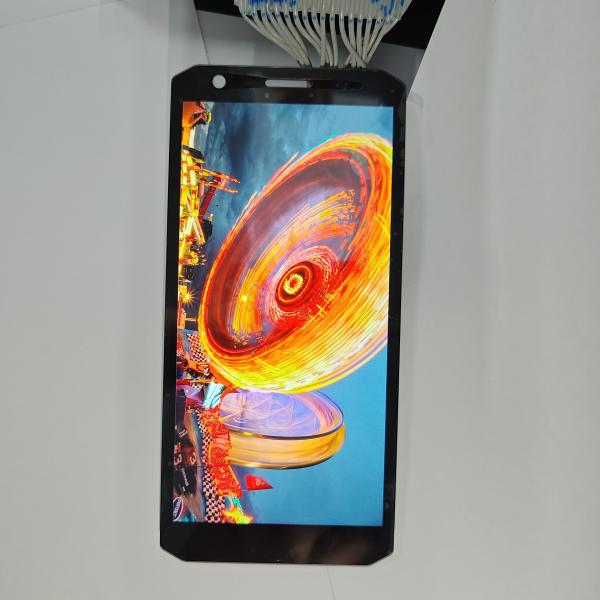

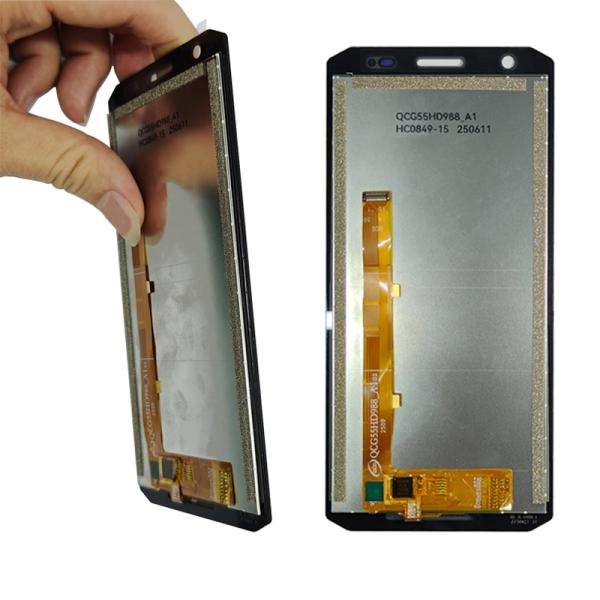

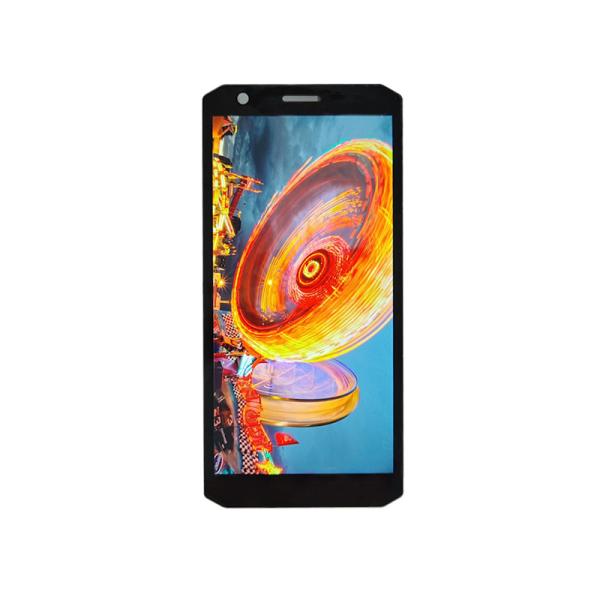

5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface
ITEM
Standard value
LCD Type
TFT Transmissive
Number of Dots
720x (RGB) x 1440
Pixel Arrangement
RGB Vertical Stripe
Active Area
61.88(H) x 123.77(V)
Viewing Area (W*H)
/
Viewing Direction
ALL
Driver IC
HX8394F

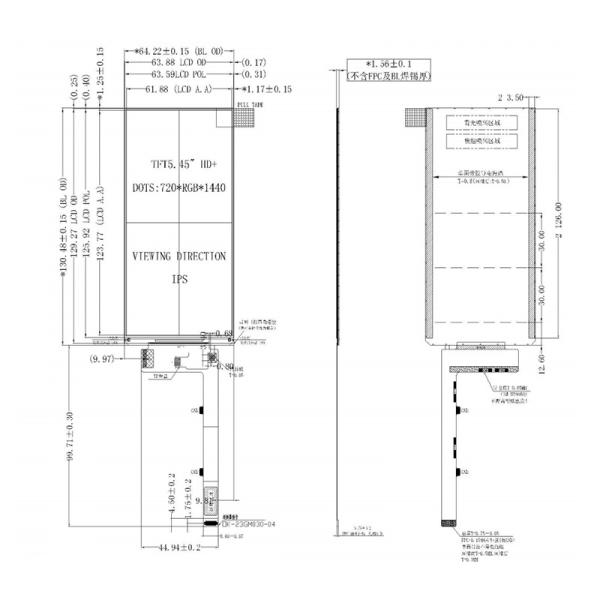

Module Size(W*H*T)
64.22(H) × 130.48 (H) *1.62
Approx. Weight
TBD
Back Light
White LED

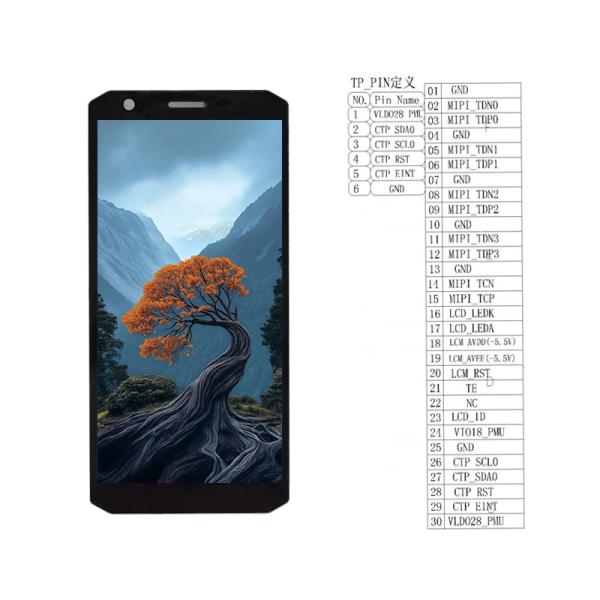

System interface
MIPI interface/30 pin
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface
