4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Genyu
MOQ :
100
Price :
$17.11-18
Display Size :
4.3 inch
Resolution :
480*272
Brightness :
500 cd/m2
Operating Temperature :
-20~70 ℃
Module Size :
121.92mm(W) x 73.2mm(H) x 8.58mm(D)
Active Area :
95.04mm(W) x 53.856mm(H)
Color Depth :
65K(65536) colors
Viewing Angle :
85/85/85/85
Interface :
UART
Touch Panel :
Capacitive
Weight :
105 g
Dot Pitch :
0.066mm(W) x 0.198mm(H)
Pixel Pitch :
0.198mm(W) x 0.198mm(H)
Backlight Current :
40mA @16V (Typ.)
Display Mode :
Normally black, IPS, Transmissive
Description
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
Item
Specification Remark
1. LCD size
4.3 inch(Diagonal)
2. Driver element
a-Si TFT active matrix
3. Resolution
480x(RGB)x272
4. Display mode
Normally black, IPS, Transmissive
5. Dot Pitch (W*H)
0.066mm(W) x 0.198mm(H)
6. Pixel pitch(W*H)
0.198mm(W) x 0.198mm(H)
7. Active Area(W*H)
95.04mm(W) x 53.856mm(H)
8. Module size (W*H)
121.92mm(W) x 73.2mm(H) x 8.58mm(D)
9. Surface treatment
Clear
10. Color arrangement
RGB-stripe
11. Color
65K(65536) colors
12. Viewing angle (L/R/T/B)
85/85/85/85
13. Interface
UART
14. LCD controller
Integrated in the system
15. LCM brightness
500 cd/m2 (Typ)
16. Backlight driving condition
40mA @16V (Typ.)
17. Touch panel
Capacitive
18. Touch controller
Integrated in the system
19. Operation temperature
-20~70 ºC
20. Weight
105 g
21. RoHS
RoHS compliant
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
Established in 2003, Shen Zhen Genyu Optical Co.,Ltd. mainly R&D, production and sales of LCD display、OLED and TFT LCD Module. Professional customized LCD Screen (including TN、HTN、STN、FSTN、VA（BTN）)、COG and COB LCD Modules

Genyu's plant area is about 30000 square meters and has 1,000 employees, including 36 technicians, 16 developers and 60 QC. It has a core team of high-quality talents including LCD experts, LCD process engineers, LCM R&D engineers, B / L and FPC engineers. By virtue of modern automation plant equipment, advanced technology and a strong R&D team, we have made

4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements, At present, the annual production capacity of the factory has reached 100 million LCD screens, 30 million LCMS and 40 million B / L.
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
Air shower
Nearly 6000 square meters of dust-free workshop, with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance of workshop is equipped with air shower, which can effectively and rapidly remove dust, hair, hair chips and other sundries attached to clothes, and reduce the pollution problems caused by personnel entering and leaving the workshop.
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

1. Custom Segment LCD display

Genyu has produced tens of thousands of segment LCDs. Please tell us your requirements for LCD, we will recommend similar LCD for you, or design LCD according to customer's requirements. Genyu has TN STN HTN FSTN VA/BTN LCD display,
Erica Tan
Tel: 0755-27856531 Mobile: +86-15919421997 Wechat: 15919421997 Skype: live:gyerica_1 Http:www.genyulcm.com E-mail:Erica@szgenyu.com
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

2. Dot Matrix Graphic LCD display

Genyu has 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128,160x160....320x240 dot matrix LCD display.
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

3. AMOLED display

Genyu has mini size OLED Display, 0.42" 0.49" 0.66" 0.78" 0.87" 0.91" 0.96" 1.3" 1.54" 2.08" 2.3" 2.4" OLED Display

4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

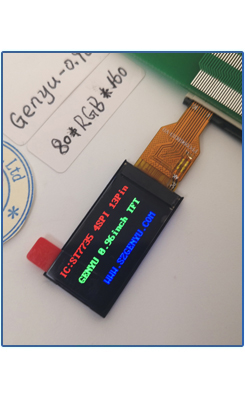

4. TFT LCD display
Genyu has HD Full color TFT LCD Display, 0.91" 1.0" 1.28" 1.3" 1.44" 1.54" 1.77" 2.0" 2.2" 2.4" 2.8" 2.95" 3.13" 3.2" 3.5" 4.3" 7" 10.1" TFT LCD Display
-Standard size -Standing stock -Samples available
Wide range of applications
> Wearable Device
> Medical
> Financia
> Industrial
> New Enery
> Communication
> Instrumentation
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

LCD Display

All products have to pass strict inspection before packaging.
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

Plastic Containers

Each COG LCD product has a custom Plastic Containers. Professional blister Containers can fix each piece of LCD products.
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

Cartons

Carton size: 398 x 331 x 430 mm
The weight is about 17 KG.




Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
4.3 Inch TFT LCD Display 480x272 with Capacitive Touch
Hi, I am Erica. We have focused on micro lcd panel for 20 years.

WHAT CAN WE OFFER?
a) Small orders will be acceptable.
b) High quality, durable-competitive pricing.
c) Mass production leadtime would be guaranteed.
d) Free technical services will be provided.
e) Each order will have enough spares.

Pls feel free to contact us,my friend!
