Specifications
Place of Origin :
Guangdong, China
Brand Name :
Genyu
MOQ :
10
Price :
Rp 60.494-77.778
Display Type :
TFT
Display Size :
3.5 inch
Resolution :
320x480 pixel
Drive IC :
ILI9488
Module Size :
83.00x54.50x3.14 mm
Active Area :
73.44x48.96 mm
Power Supply :
3.3 V
Interface :
16/18bit parallel, RGB, SPI
Pixel Arrangement :
RGB vertical stripe
FPC Pins :
40 pin
Backlight Current :
120mA
Backlight Voltage :
3.2V
Viewing Direction :
12 O'clock
Touch Panel :
Resistance Touch Panel (RTP)
Dot Matrix :
320RGB(H) x 480(V)
Description

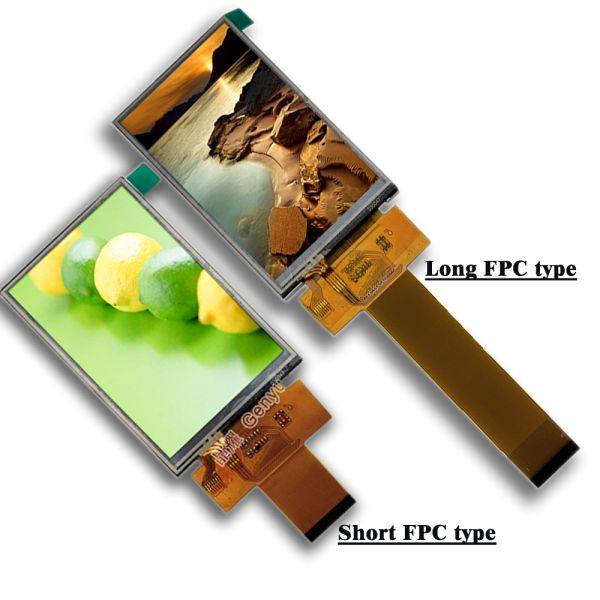

RGB 320x480 LCD Display ILI9488 LCD Module 3.5 inch TFT LCD Touch Screen
High-quality 3.5-inch TFT LCD display module with resistance touch panel, specifically designed for QR code display applications. Features ILI9488 drive IC and multiple interface options.
3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display
Pin Configuration
Pin 12345678 9-26272829303132 3334353637383940
Symbol LED-KLED-AGNDRESETVSYNCHSYNCDOTCLKENABLE DB17-DB0SDISDORDSCK/WRRSCS TEVCIIOVCCGNDYDXRYUXL
Key Features
  • Display Type: 320RGB(H) × 480(V) Dots Matrix
  • Size: 3.5 inch TFT display
  • Drive IC: ILI9488
  • Pixel arrangement: RGB vertical stripe
  • Power supply: 3.3V
  • FPC: 40 pin connection type
  • Interface: 16/18 bits parallel RGB interface, SPI interface
Technical Specifications
Item Description
Size 3.5 inch
Resolution 320 × 480
Touch RTP (Resistance Touch Panel)
Interface 16/18 bits parallel, RGB, SPI interface
Operating voltage 3.3 V
LED Backlight supply If=120mA, Vf=3.2V
Outline Dimension 83(L) × 54.5(W) × 3.14(T) mm
Active Area 73.44(L) × 48.96(W) mm
3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display
Packaging & Shipping
Payment Options
Please contact us before making payment. Accepted payment methods: T/T, Western Union, Paypal.
Delivery Information
  • Items shipped within 3 working days after payment received
  • DHL/UPS/FedEx/TNT: 2-5 working days
  • EMS: 7-10 working days
  • CPAM/HKPAM: 10-30 working days
Packaging
  • Anti-static bag or Bubble bag (for samples)
  • Plastic pallet
  • Carton box
3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display
Company Information
3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display 3.5 Inch 320x480 Resolution TFT LCD Display Module with Resistance Touch Panel for QR Code Display
Contact Us
Hi, I am Erica. We have focused on micro LCD panels for 20 years.
What We Offer
  • Small orders accepted
  • High quality, durable products with competitive pricing
  • Guaranteed mass production lead time
  • Free technical services provided
  • Each order includes sufficient spares
Please feel free to contact us for more information about our RGB 320x480 LCD display modules.
