2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Genyu
MOQ :
10
Price :
R 60,13-72,16
Display Size :
2.95 Inch
Module Size :
42.2(H)x74.2(V)x2.1(T) mm
Active Area :
36.72(H)x65.28(V) mm
Dot Matrix :
480x854 Dots
Operating Temperature :
-20~+70℃
Storage Temperature :
-30~+80℃
Backlight Type :
6 Chip-white LEDs
Driver IC :
ST7701S
Interface Type :
MIPI
Connector Type :
FPC, plug-in type
LCD Type :
IPS, Transmissive
Viewing Angle :
All
Resolution :
480(RGB)x854(Dots)
FPC Pins :
40 pins
Display Technology :
TFT
Description
RoHS Small LCD Screen 2.95 Inch MIPI TFT Display Module
High-quality 2.95-inch IPS TFT LCD panel with MIPI interface, featuring 480×854 resolution and wide viewing angle for industrial and embedded applications.
Technical Specifications
Parameter Specification
Brand Name Genyu
Model Number GY-TFT030B001
LCD Type IPS, Transmissive
Size 2.95 Inch
Resolution 480 (RGB) × 854 Dots
Viewing Angle All Directions
Outline Dimensions 42.2(H) × 74.2(V) × 2.1(T) mm
Active Area 36.72(H) × 65.28(V) mm
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Drive IC ST7701S (Compatible)
Interface MIPI
Backlight 6 White LEDs
RoHS Compliance Yes

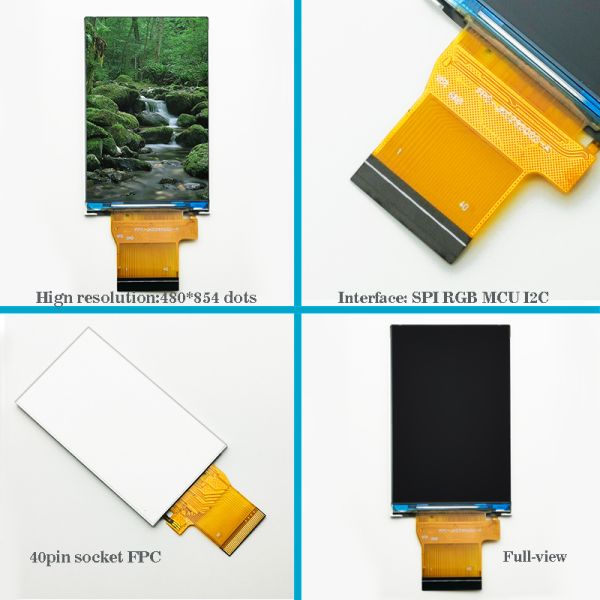

Product Images
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
Related TFT LCD Display Options
LCD Sizes: 0.96", 1.0", 1.3", 1.44", 1.54", 1.77", 1.8", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 4.45", 5.0", 5.5", 7.0", 8.0", 10.1"
Interfaces: SPI, Parallel (8/16/24-bit MCU), RGB, MIPI, and more
Customization: FPC (number of pins), Interface, Backlight, Touch Screen
Resolutions: 80×160, 128×128, 128×160, 240×240, 240×284, 240×320, 320×480, 480×272, 480×800, 800×400, 800×1280, 1024×600 dots, and more
Manufacturing Capabilities
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
Why Choose Genyu Display?
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
  • Own COG, COB, and LCD Backlight Production Lines with Competitive Pricing
  • Solid and Reliable R&D Team Providing Free Technical Support
  • Double 100% Testing and Inspection Before Shipping for Quality Guarantee
  • Fast Lead Times with Cost-Effective Transportation Options
  • 24-Hour After-Sales Service Support
  • 12-Month Standard Product Warranty Period
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution 2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
Packaging & Shipping Information
Payment Methods
T/T, Western Union, PayPal, and other accepted payment methods
Delivery Timeline
Items shipped within 3 working days after payment confirmation
  • DHL/UPS/FedEx: 5-7 working days
  • EMS/POSTNL: 15-20 working days
Packaging Standards
  • Electrostatic Bag / Anti-static Trays / Plastic Pallet / Air Bubble Film
  • Sturdy Carton Boxes for Secure Transportation
2.95 Inch MIPI Interface TFT LCD Display Panel with 480 RGB x 854 Dots Resolution
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.
Do you offer free samples?
For first-time cooperation, samples are charged with the amount returned at mass order stage. For regular cooperation, samples can be provided free of charge.
What is your delivery time?
Sample orders: 2-3 weeks. Mass production: 4-6 weeks.
Can you customize LCD or touch screens?
Yes, we provide comprehensive customization services including LCD display backlight brightness, FPC cable, touch panel color, shape, cover thickness, and other specifications according to customer requirements.
What applications are your products used for?
Embedded systems, Intercom systems, Biometric devices, HMI, Smart home applications, Robotics, Hand-held PDAs, Aftermarket automotive, and more.
